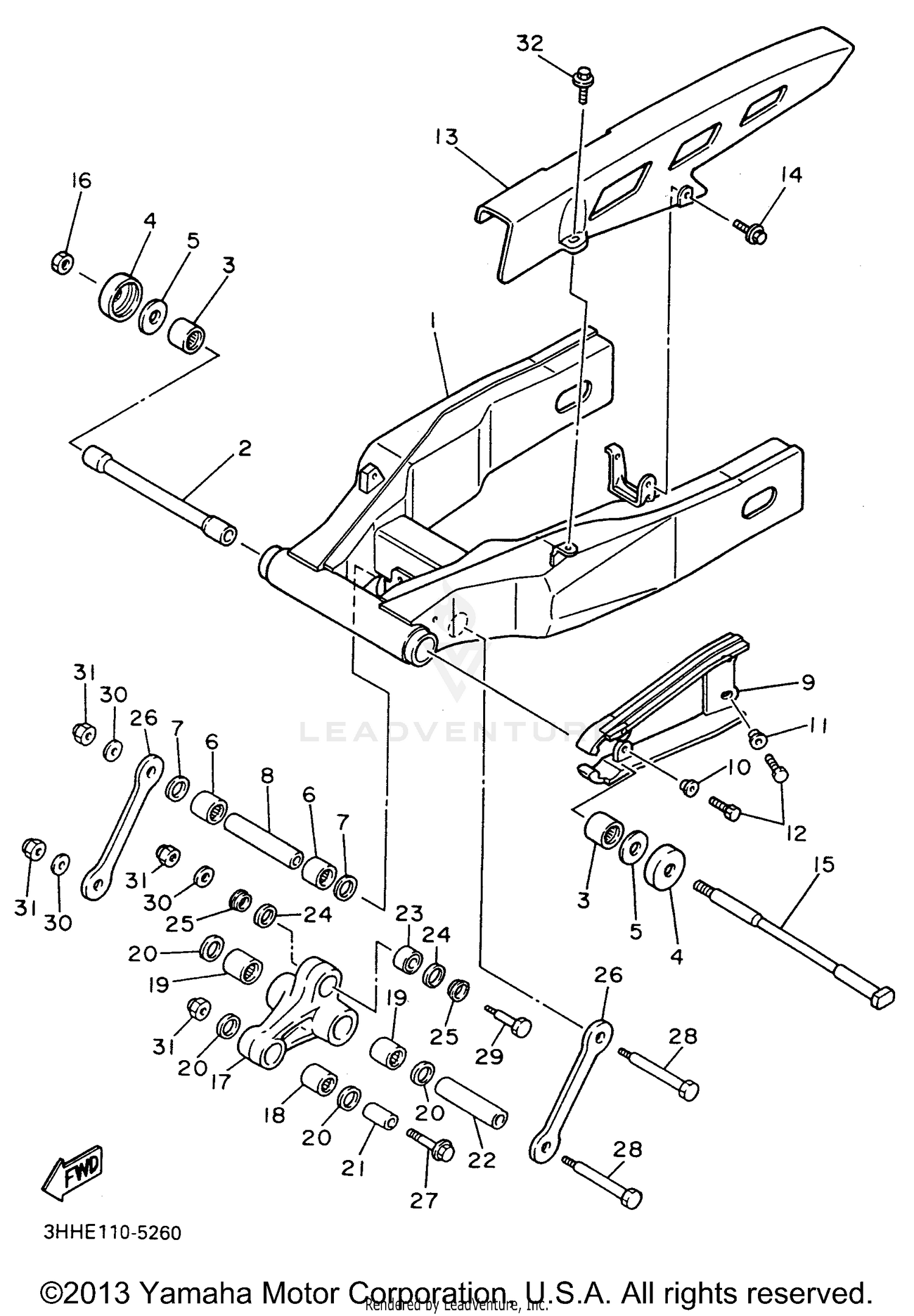

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
3HH-22110-00-T9
|
$681.99 | ||
|
Unavailable |
|||
|
#2
BUSH
33M-22184-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 2
4X7-22129-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-161J3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-21746-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
3HH-22151-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#10
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-062M9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON DEEP R
97095-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, CHAIN
3GM-22311-00-00
|
$70.15 | ||
|
Unavailable |
|||
|
#14
BOLT, WITH WASHER
90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, PIVOT
46X-22141-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, RELAY
1WG-2217A-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#18
BEARING
93317-31701-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93317-21746-00
|
$31.99 | ||
|
Unavailable |
|||
|
#20
OIL SEAL (SDO 17-24-4)
93109-17048-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-102R4-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Unavailable |
|||
|
#23
BEARING
93399-99919-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93101-16131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-124W2-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ARM 1
1WG-2217M-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-10376-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-10658-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-10659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, WITH WASHER
90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
