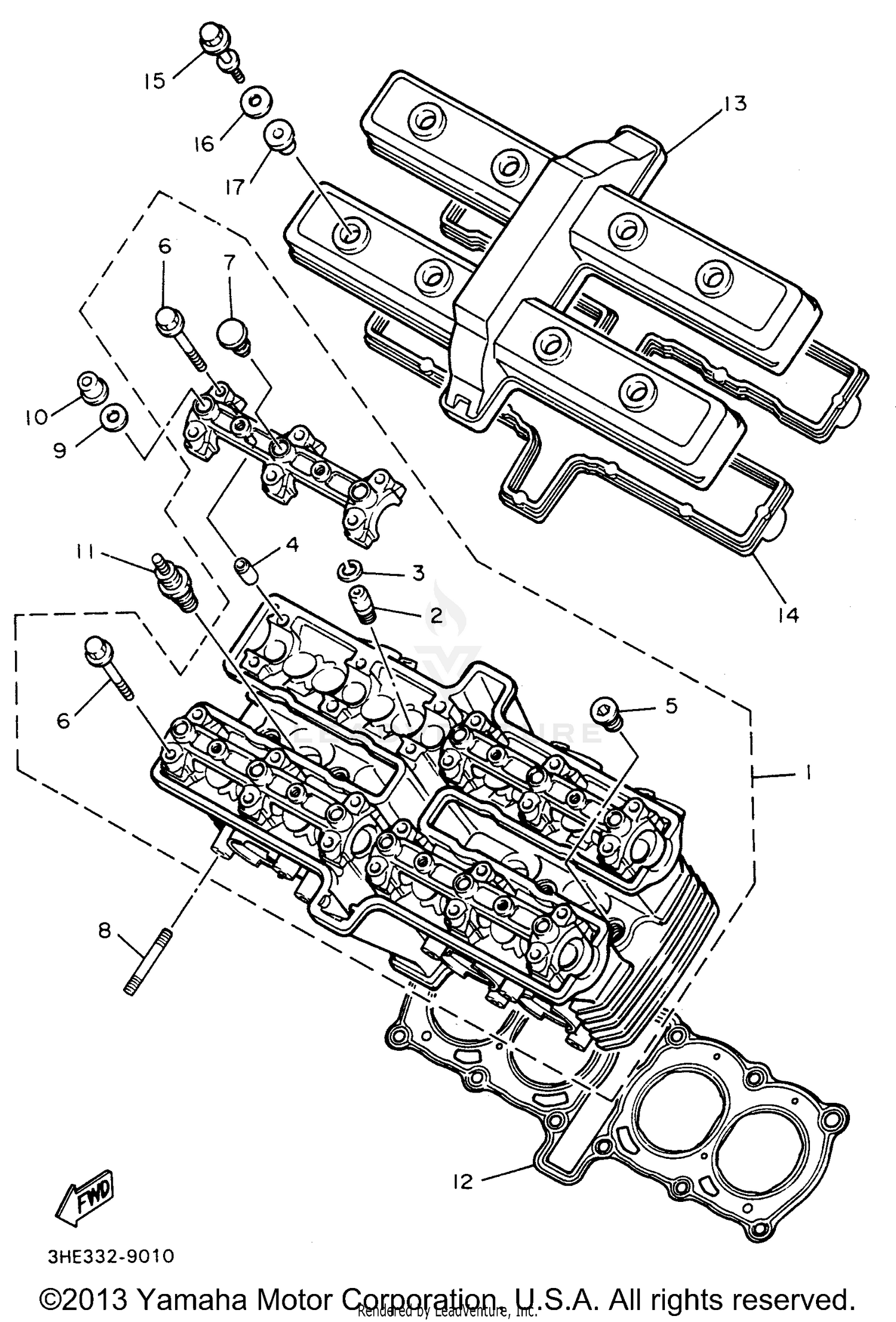

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
3HW-11101-00-00
|
$2,112.99 | ||
|
Unavailable |
|||
|
#
CYLINDER HEAD ASSEMBLY
3HE-11101-00-00
|
$2,011.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
1WG-11133-10-00
Superseded by 1WG-11133-11-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-10153-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-12112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06384-00
Superseded by 90105-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
90338-08174-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-06437-00
Superseded by 90116-06466-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-087K2-00
Superseded by 90201-086M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-08530-00
|
$4.50 | ||
|
Unavailable |
|||
|
#11
CR9E NGK SPLUG 4PK
NGK-CR9E0-00-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
GASKET, CYLINDER HEAD 1
3HE-11181-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER HEAD 1
2TK-11191-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#14
GASKET, HEAD COVER 1
1WG-11193-00-00
Superseded by 1WG-11193-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-064F0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-11262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
