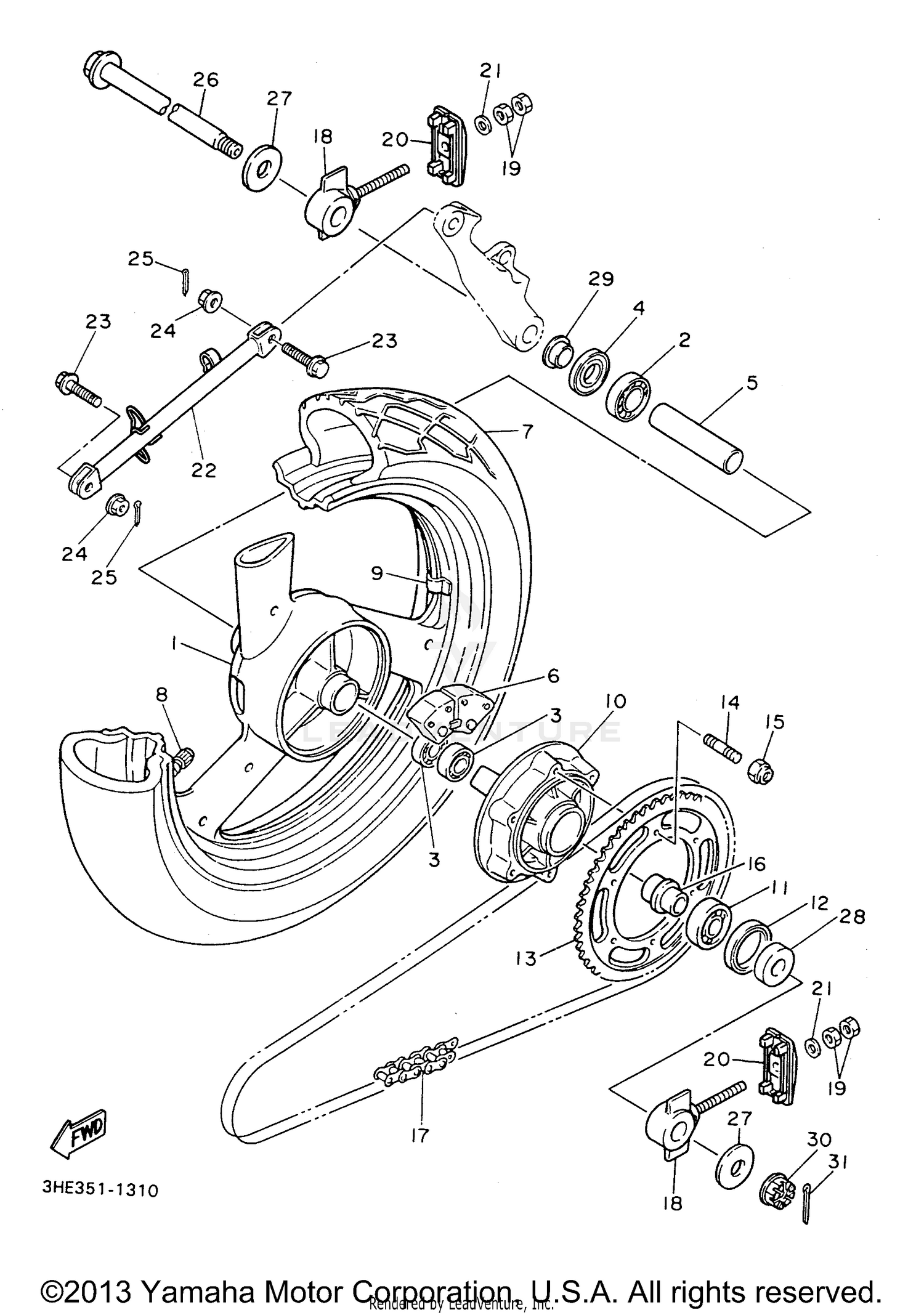

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
3HE-25338-50-33
|
$693.99 | ||
|
Unavailable |
|||
|
#
CAST WHEEL, REAR
3HE-25338-50-FH
|
$623.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20314-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25044-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-174V8-00
|
$15.49 | ||
|
Unavailable |
|||
|
#6
DAMPER
1UF-25364-00-00
Superseded by 4BP-25364-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE (MCS 140/60 VR18 V240)
94114-185X6-00
|
$320.99 | ||
|
Unavailable |
|||
|
#
TIRE (140/60 VR18 V240)
94114-183X5-00
|
$320.99 | ||
|
Unavailable |
|||
|
#8
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH, HUB
1UF-25366-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-37207-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93105-42024-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN (45T)
1AE-25445-21-00
|
$74.99 | ||
|
Unavailable |
|||
|
#14
BOLT, STUD
90116-10485-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U FLANGE
95617-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-177K0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHAIN
94581-59106-00
|
$316.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 1
3HH-25388-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#19
NUT(6TA)
95307-08600-00
Superseded by 95337-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
END 1
3HH-22174-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR, TENSION
3HE-25371-51-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, WHEEL
3HE-25381-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-177K7-00
Superseded by 90201-170T3-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-177Y5-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-173L5-00
Superseded by 90387-177Y4-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, CASTLE
90171-16024-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
