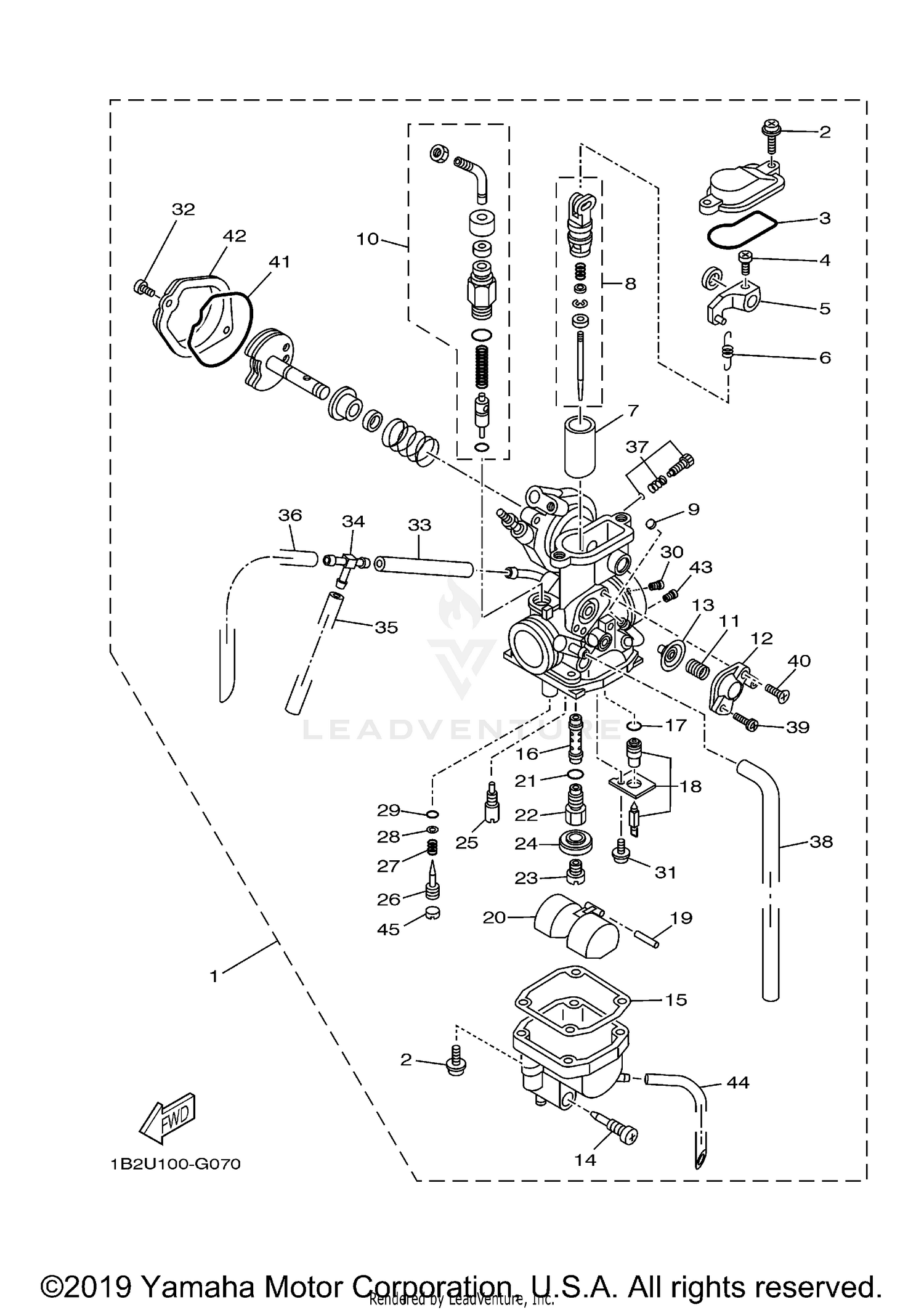

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1B2-14101-00-00
|
$508.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, WITH WASHER
97607-04114-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
1B2-14561-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
1B2-14216-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, STARTER
1B2-14905-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
1B2-14589-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, THROTTLE 1
1B2-14112-25-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE SET
1B2-1490J-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NET, FILTER
5LW-14994-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER SET
1B2-1410A-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, DIAPHRAGM
5AP-14933-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CARBURETOR
5HP-14280-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM ASSY
5AP-14940-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, DRAIN
4LS-14191-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, FLOAT CHAMBER
24W-14184-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NOZZLE, MAIN
1B2-14141-29-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4LS-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE VALVE SET
5HP-14107-18-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLOAT
5HH-14185-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
583-14561-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
SETTER, NEEDLE JET
1B2-14145-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#100)
620-14231-20-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, MAIN JET
5V7-14153-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, PILOT (# 15)
5HP-14142-15-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PILOT
5HP-14923-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, AIR ADJUSTING
5K7-14134-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
3H1-14962-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
3H1-14147-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, MAIN (#120)
1HX-14231-24-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, WITH WASHER
97607-03106-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98507-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE 1
1B2-14348-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NIPPLE
66E-14251-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE
31H-14197-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#36
PIPE
5CA-14197-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
THROTTLE SCREW SET
1B2-14103-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE
31A-14197-00-00
Superseded by 26H-14197-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
5HP-14565-00-00
Superseded by 5HP-14565-09-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
5HP-14216-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING
1B2-1416A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER 1
1B2-14293-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, MAIN (# 80)
1HX-14231-16-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE (L700)
1A0-14196-00-00
Superseded by 90445-05M07-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#45
CAP
3F9-14118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
