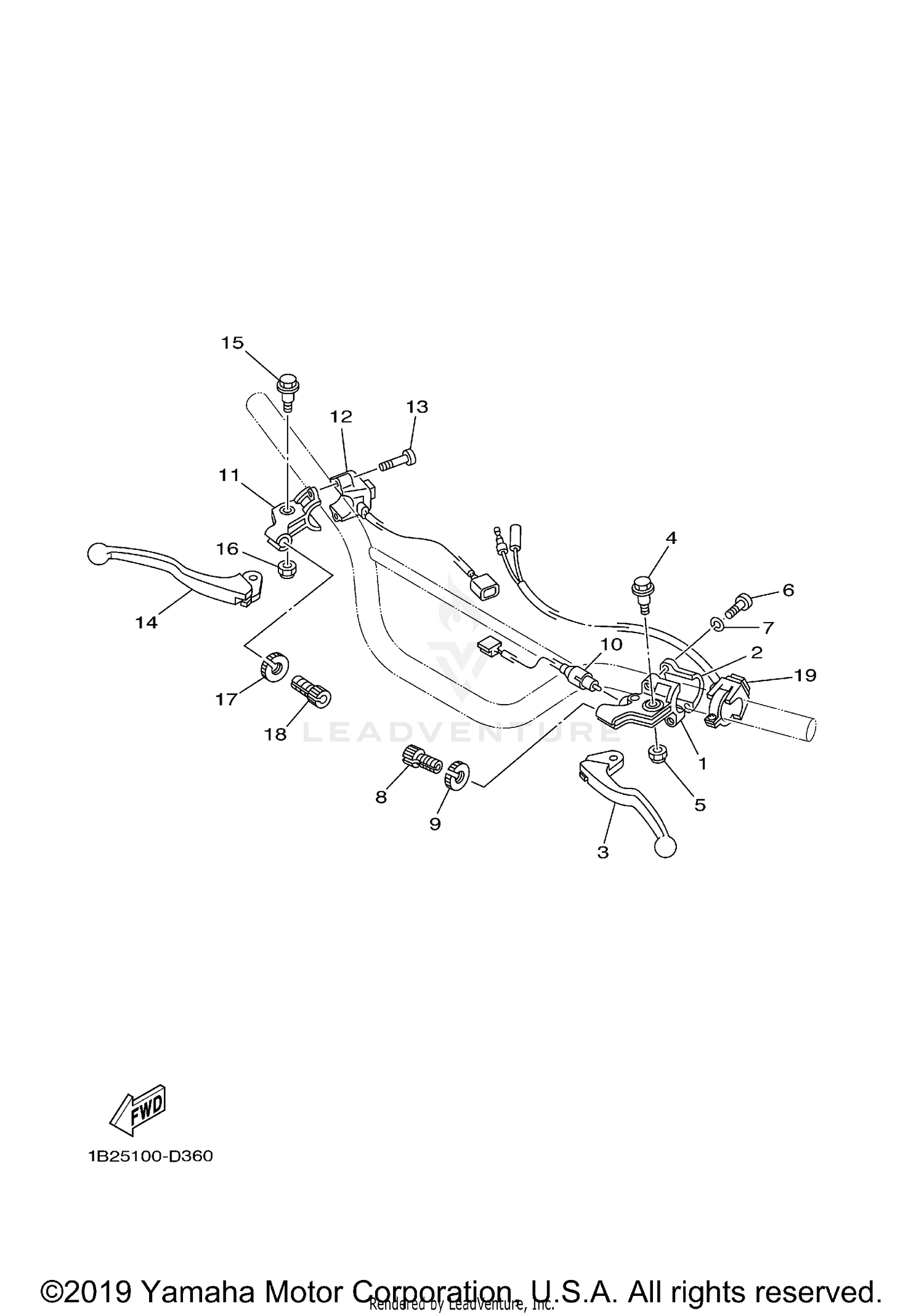

Handle Switch Lever Ex 1b2s Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
2TY-H2911-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, LEVER LOWER 1
1B2-H2913-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER 1
1B2-H3912-00-00
Superseded by 4GY-83912-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, LEVER
4LR-H3945-00-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,SELF-LOCKING
90185-06W10-00
Superseded by 90185-06802-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
9851M-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
9290M-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH
5HP-82917-00-00
Superseded by 19D-82917-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, LEVER 2
1B2-H2921-00-00
Superseded by 38V-82921-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, HANDLE 1
5HP-83976-01-00
Superseded by 5HP-83976-02-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
9131M-05020-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER 2
1B2-H3922-00-00
Superseded by 23X-83922-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, LEVER
4LR-H3945-00-00
|
$1.75 | ||
|
Unavailable |
|||
|
#16
NUT,SELF-LOCKING
90185-06W10-00
Superseded by 90185-06802-00
|
$1.05 | ||
|
Unavailable |
|||
|
#17
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
|
#18
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
SWITCH, HANDLE 1
5HP-83976-21-00
Superseded by 5HP-83976-22-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
