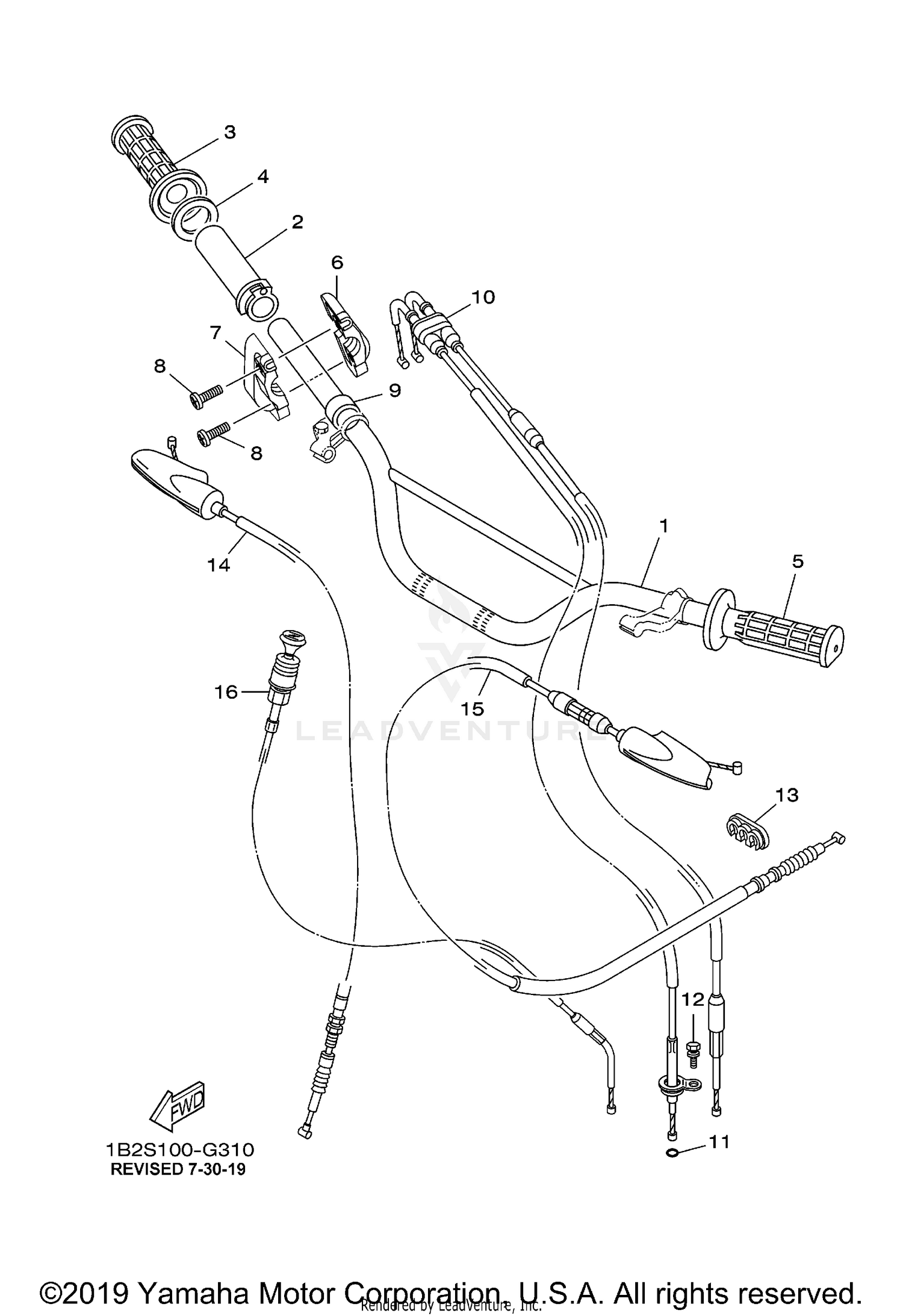

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1B2-F6111-00-35
Superseded by 1B2-F6111-00-00
|
$170.99 | ||
|
Unavailable |
|||
|
#2
TUBE, THROTTLE GUIDE
1C6-F6243-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP (RIGHT)
1C6-F6242-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
2TY-F6249-00-00
Superseded by 3Y1-26249-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP
1C6-F6241-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, GRIP UPPER
1C6-F6281-00-00
Superseded by 1C6-F6281-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP UNDER
1C6-F6282-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
9851M-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-22660-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROTTLE CABLE ASSY
1B2-26302-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-06667-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
9750M-05510-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-07003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE, BRAKE 1
1B2-26341-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, CLUTCH
5HP-26335-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, STARTER 1
1B2-26331-00-00
Superseded by 1B2-26331-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
