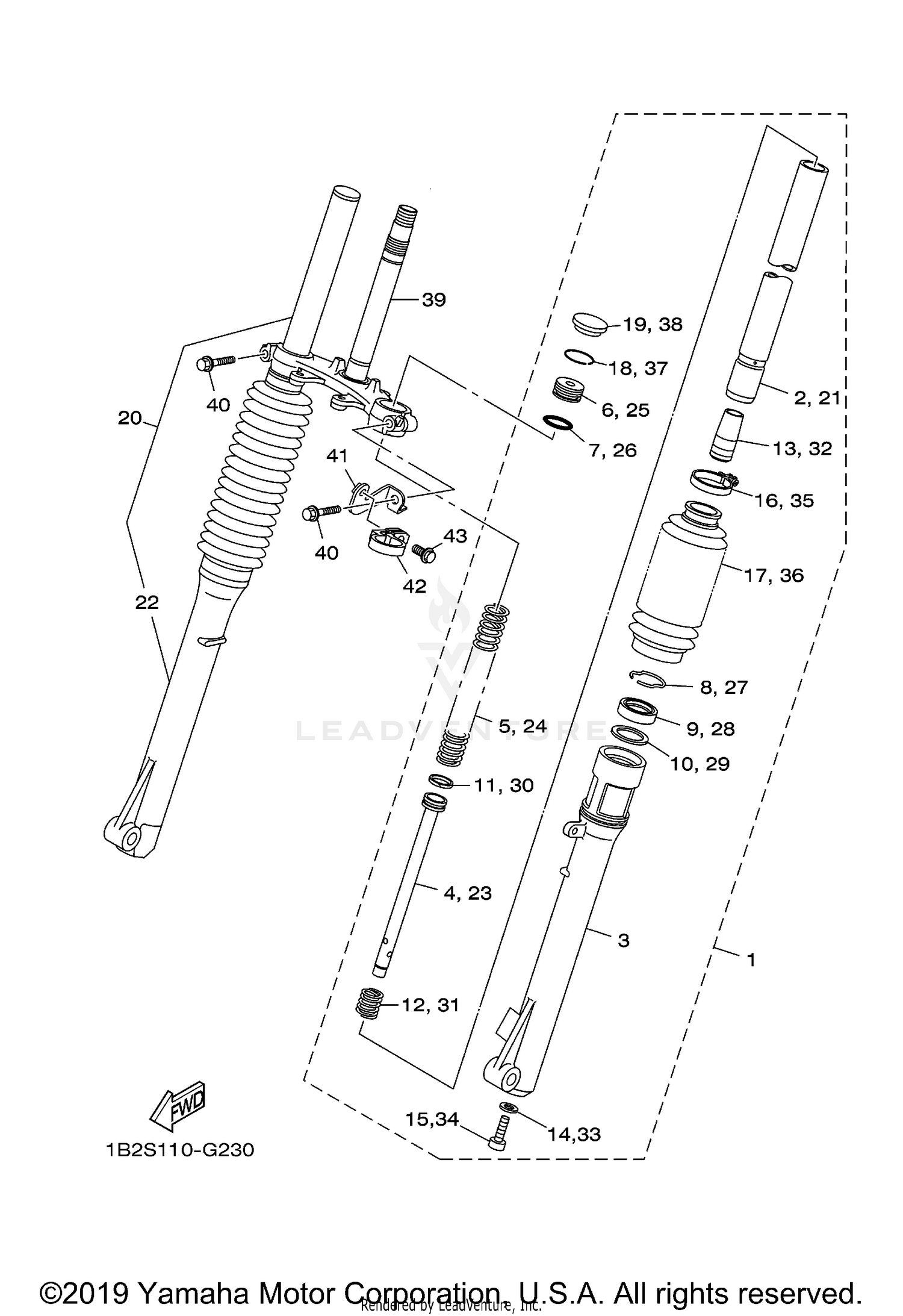

Front Fork Ex 1b2s Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
1B2-F3102-00-00
|
$531.99 | ||
|
Unavailable |
|||
|
#2
INNER TUBE COMP. 1
1B2-F3110-00-00
|
$243.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER (LEFT)
1B2-F3126-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
1B2-F3171-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
1B2-F3351-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CAP
1L9-F3111-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
1L9-23114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
2A6-F3156-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
5B6-23145-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, OIL SEAL
5B6-23146-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, PISTON
1E7-F3157-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, REBOUND
1B2-F3151-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, OIL LOCK
1B2-F3166-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, DRAIN PLUG
3MA-F3129-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
4B4-F3181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
1B2-23192-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT
1B2-23191-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, STOPPER
1L9-23183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
3V2-23154-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRONT FORK ASSY R.H
1B2-F3103-00-00
Superseded by 1B2-F3103-01-00
|
$641.99 | ||
|
Unavailable |
|||
|
#21
INNER TUBE COMP. 1
1B2-F3110-00-00
|
$243.99 | ||
|
Unavailable |
|||
|
#22
TUBE, OUTER (RIGHT)
1B2-F3136-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON, FRONT FORK
1B2-F3171-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#24
SPRING
1B2-F3351-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#25
BOLT, CAP
1L9-F3111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
GASKET
1L9-23114-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
RING, SNAP
2A6-F3156-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#28
OIL SEAL
5B6-23145-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#29
WASHER, OIL SEAL
5B6-23146-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
RING, PISTON
1E7-F3157-00-00
|
$2.80 | ||
|
Unavailable |
|||
|
#31
SPRING, REBOUND
1B2-F3151-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
SPACER, OIL LOCK
1B2-F3166-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#33
GASKET, DRAIN PLUG
3MA-F3129-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
4B4-F3181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
BAND
1B2-23192-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#36
BOOT
1B2-23191-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#37
RING, STOPPER
1L9-23183-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
CAP
3V2-23154-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#39
UNDER BRACKET COMP.
1B2-F3340-00-35
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
90105-10304-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET 1
1B2-F334G-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#42
GUIDE, CABLE
1C6-F3389-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, WITH WASHER
90119-05193-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
