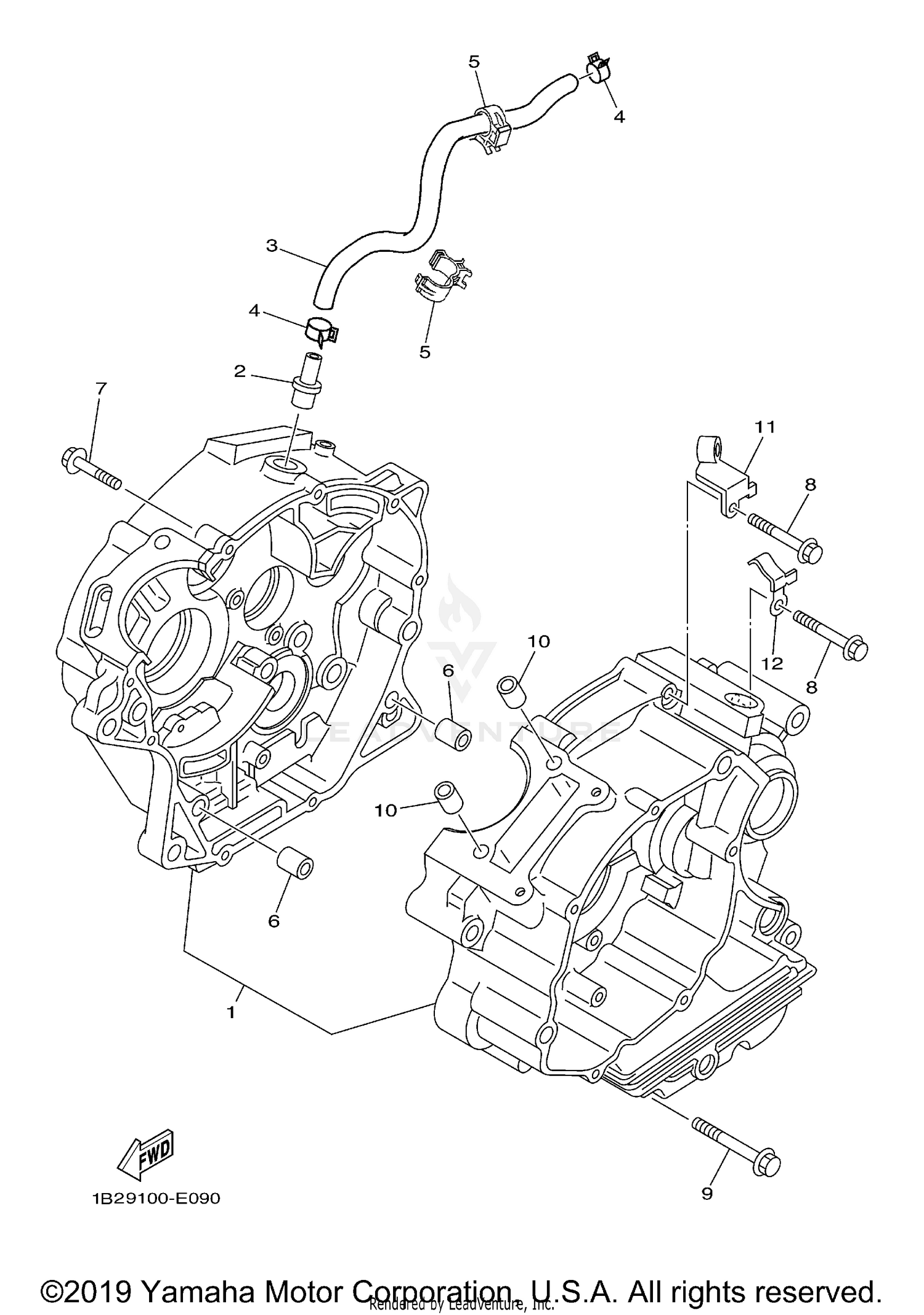

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5HH-E5150-30-00
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, BREATHER 2
5HH-E1167-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BREATHER 1
1B2-E1166-10-00
Superseded by 1B2-E1166-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90467-13800-00
|
|||
|
Unavailable |
|||
|
#5
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90109-06W35-00
Superseded by 95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90109-06W36-00
Superseded by 95027-06045-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90109-06W37-00
Superseded by 95817-06055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#11
HOLDER, CLUTCH CABLE
1B2-E5441-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90462-08005-00
|
$5.99 | ||
|
Unavailable |
|||
