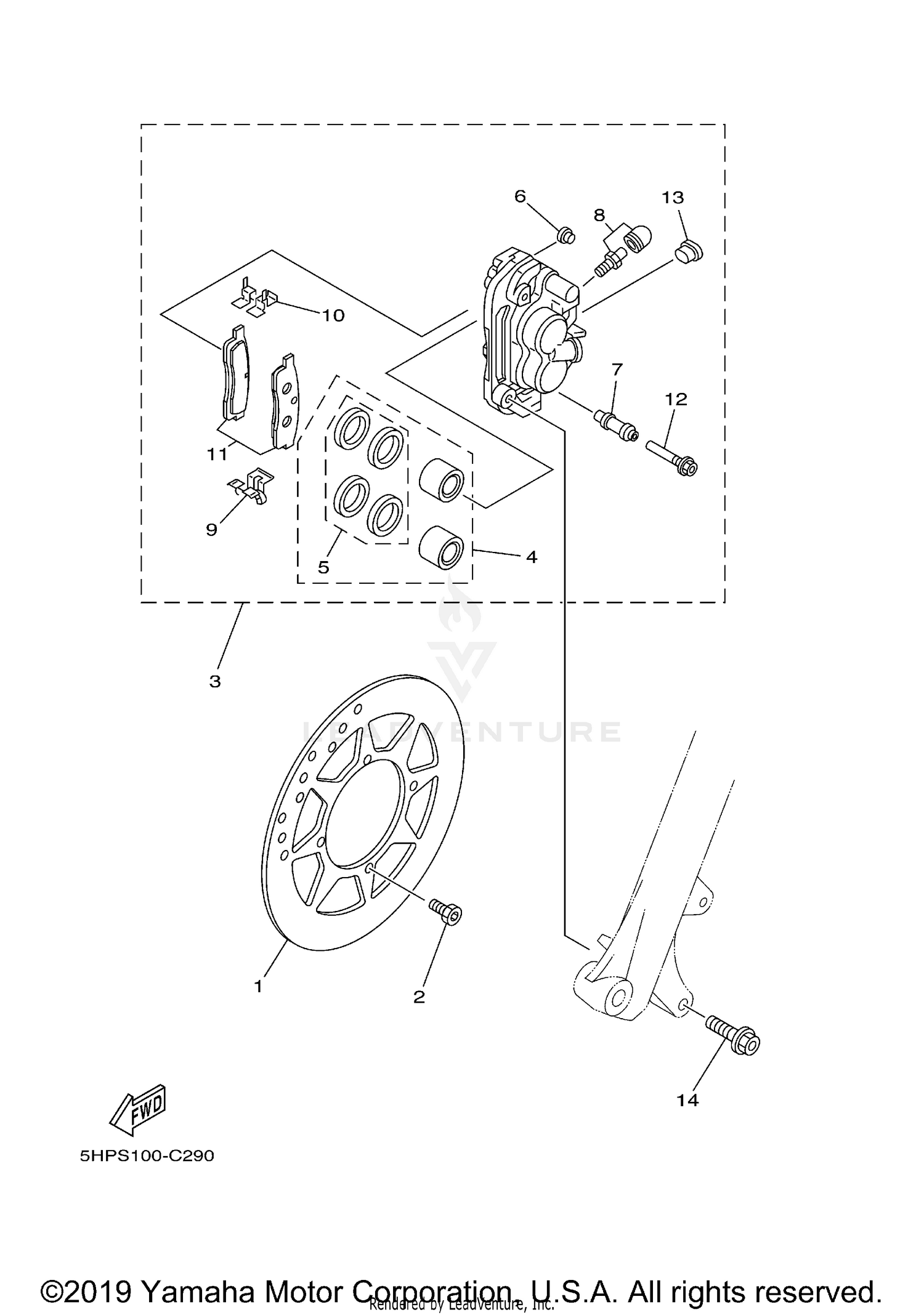

Front Brake Caliper Lex 19c3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
3UN-2582T-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-06815-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
3UN-2580T-00-00
|
$389.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
1LR-W0057-00-00
Superseded by 4ES-W0057-10-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
1LR-W0047-00-00
Superseded by 4ES-25803-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
56A-25937-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
56A-25919-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
56A-25919-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE PAD KIT
3UN-W0045-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
56A-25926-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, INDICATOR
34X-25845-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08211-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
