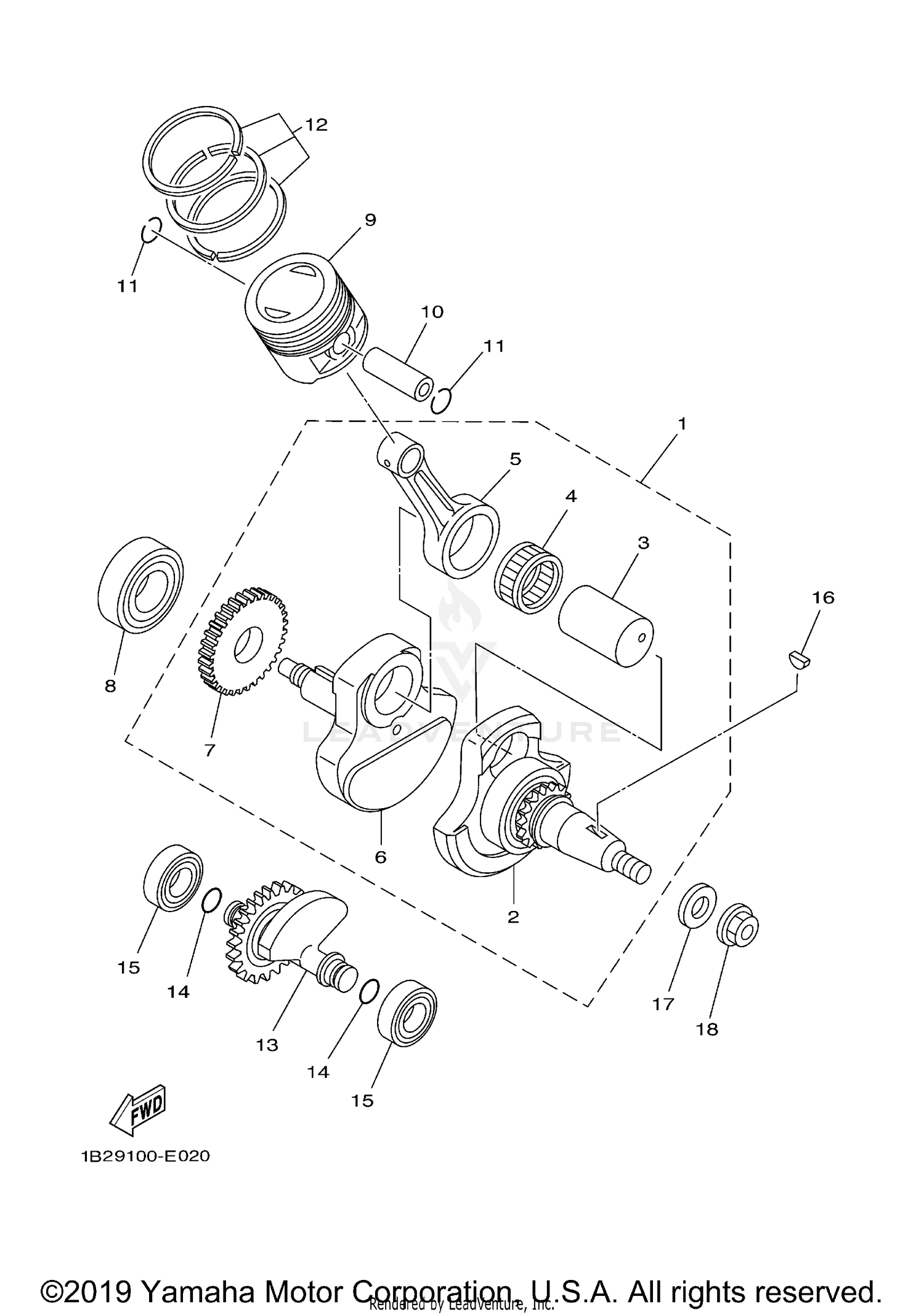

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5HH-E1400-20-00
|
$654.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK SUB ASSY 1
5HH-WE141-20-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CRANK 1
4LS-11681-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93310-6290C-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
4LS-11651-02-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANK 2
5HH-E1422-10-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, DRIVE
5HH-E1536-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-205YW-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON (STD)
1B2-E1631-00-A0
Superseded by 1B2-E1631-00-C0
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON (0.50MM O/S
1B2-E1636-00-00
Superseded by 1B2-E1636-09-00
|
$178.99 | ||
|
Unavailable |
|||
|
#9
PISTON (1.00MM O/S
1B2-E1638-00-00
Superseded by 1B2-E1638-09-00
|
$193.99 | ||
|
Unavailable |
|||
|
#10
PIN, PISTON
5HH-E1633-00-00
Superseded by 2TK-11633-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-16068-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON RING SET (1.00MM O/S)
4LS-11607-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON RING SET (STD)
5RM-E1603-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON RING SET (0.50MM O/S)
5RM-E1605-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER ASSY
5HH-E1500-02-00
Superseded by 5HH-E1500-03-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-11001-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-252YA-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
KEY, WOODRUFF
90280-03045-00
Superseded by 90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-120E8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-12248-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
