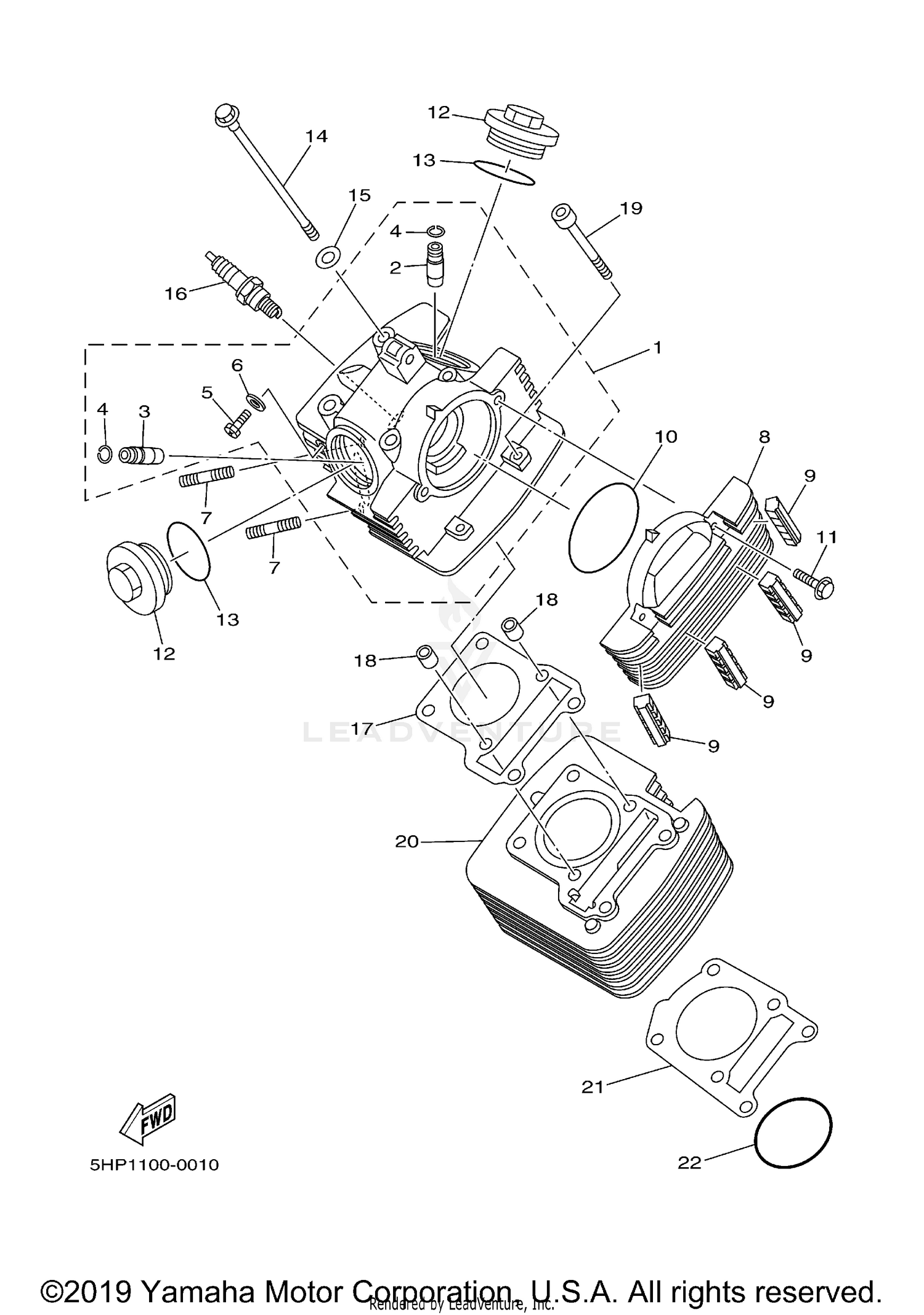

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
5RR-E1111-10-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
2UJ-11133-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
22F-11134-10-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-10109-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEXAGON
90153-06803-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-06817-00
Superseded by 90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-06503-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CYLINDER HEAD SIDE 3
5VL-E1185-10-00
Superseded by 5VL-E1185-40-00
|
$46.99 | ||
|
Unavailable |
|||
|
#9
ABSORBER 1
5HH-E1161-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-79200-00
Superseded by 93210-77363-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PAN HEAD
9502M-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CYLINDER HEAD SIDE 2
5HH-E1186-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-44800-00
Superseded by 93210-44704-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08724-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SPARK (NGK CR7HSA)
NGK-CR7HS-A0-00
Superseded by CR7-HSA00-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#17
GASKET, CYLINDER HEAD 1
5HH-E1181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-06W02-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
CYLINDER
5HH-E1310-10-35
Superseded by 5HH-E1310-10-C0
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, CYLINDER
5HH-E1351-00-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-57800-00
Superseded by 93210-57634-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
