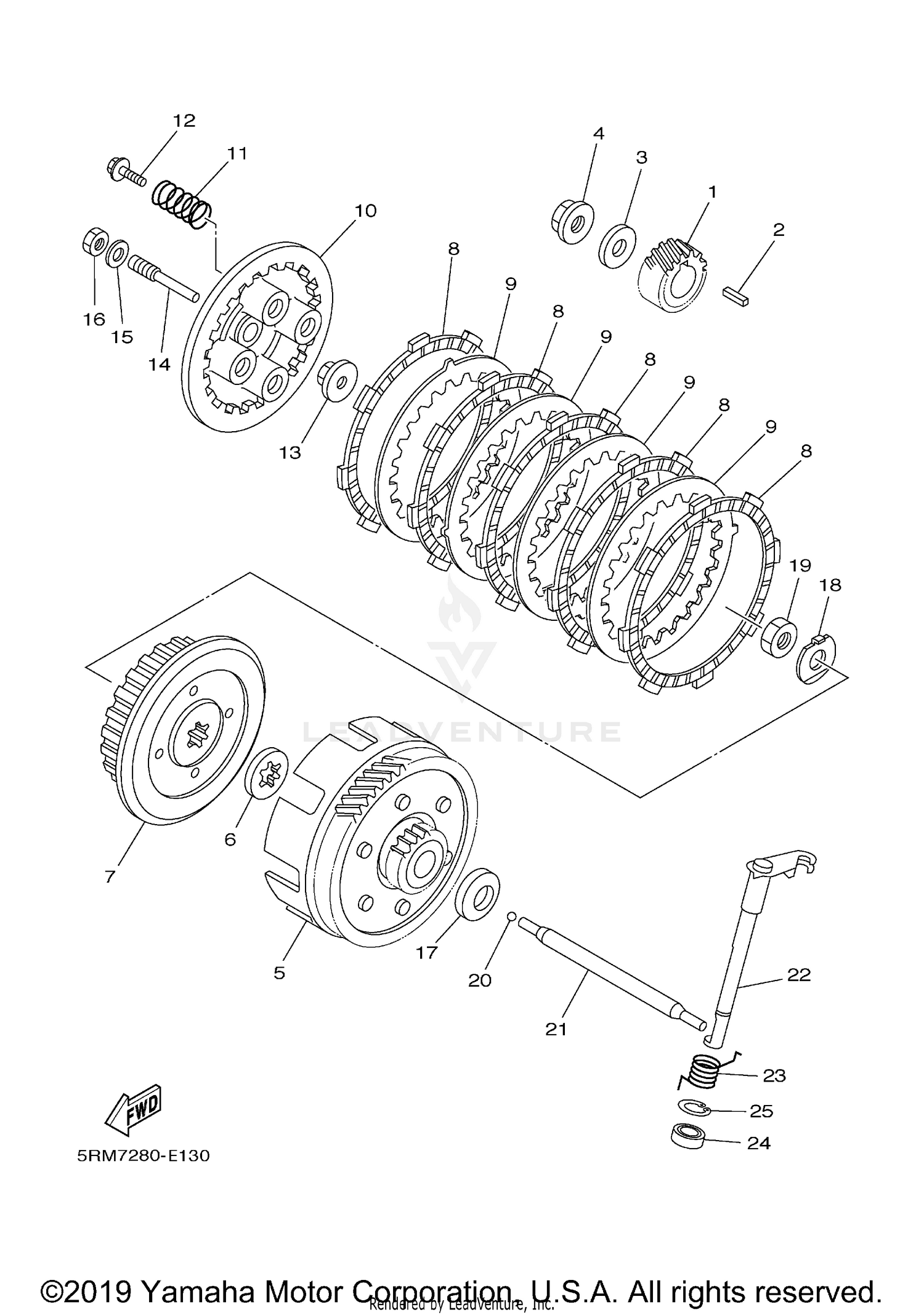

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (19T)
401-16111-10-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, STRAIGHT (5MMX16MM)
90282-05001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-122H1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-12813-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY DRIVEN GEAR COMP.
5AP-16150-00-00
Superseded by 5AP-16150-01-00
|
$329.99 | ||
|
Unavailable |
|||
|
#6
PLATE, THRUST 1
4V0-16154-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
5AP-16371-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FRICTION
598-16321-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 1
1V1-16324-00-00
Superseded by 1V1-16324-10-00
|
$21.99 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 1
5AP-16351-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-204A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-05020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, PUSH
1W1-16358-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, PUSH 1
5AP-16356-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, THRUST 2
5HH-E6164-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK
90215-12211-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL
93503-16802-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH 2
5HH-E6357-00-00
Superseded by 5VL-E6357-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER COMP.
1B2-E6381-00-00
Superseded by 1B2-E6381-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-16W13-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
99009-20500-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
