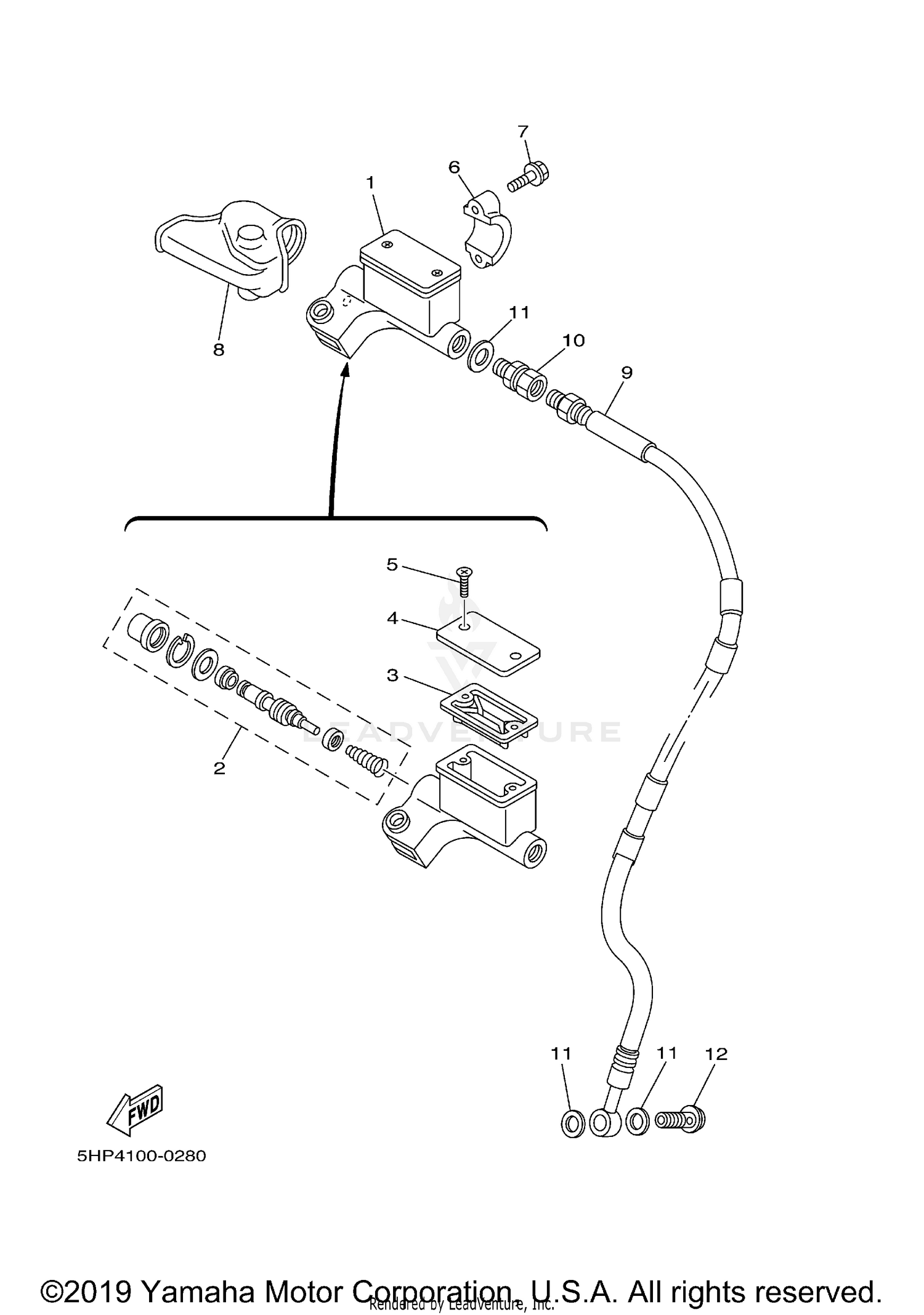

Front Master Cylinder Lex 19c3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
3SP-25870-01-00
|
$337.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
3SP-W0041-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
56A-25854-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
2VN-25852-01-00
Superseded by 2VN-25852-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
9502M-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HANDLE LEVER 1
1B2-F6372-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
1B2-25872-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
3LC-25885-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10814-00
Superseded by 90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
