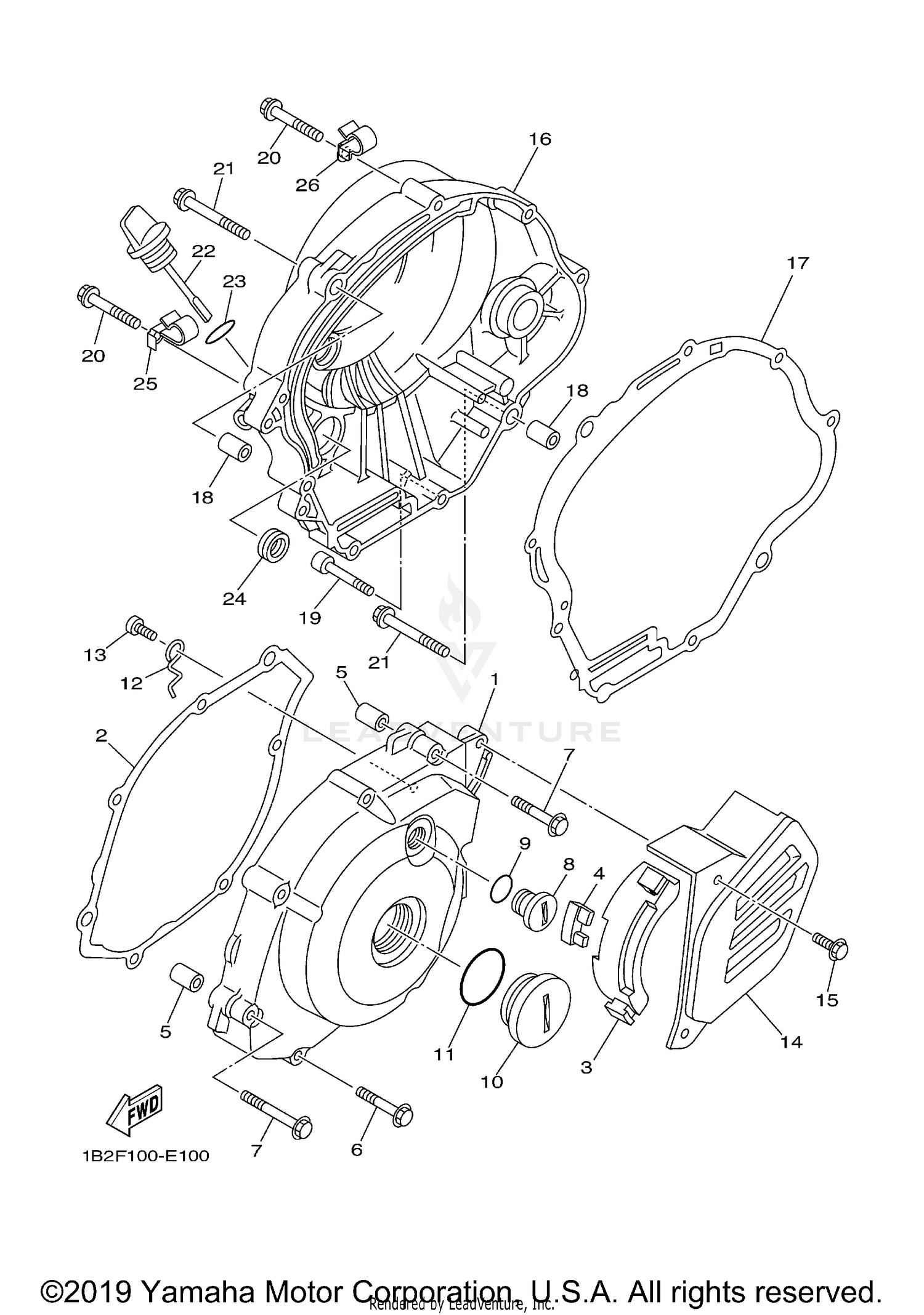

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1B2-E5411-00-WN
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
5HH-E5451-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, INLET
1B2-E5377-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER 1
1B2-E5316-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
9502M-06035-00
Superseded by 95027-06035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
9502M-06045-00
Superseded by 95027-06045-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14128-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14800-00
Superseded by 93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-32123-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-32800-00
Superseded by 93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
5HH-E5191-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
9851M-06010-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CHAIN CASE
1B2-E5418-00-WN
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
9581M-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, CRANKCASE 2
1B2-E5421-00-WN
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CRANKCASE COVER 2
5HH-E5461-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#19
BOLT
91380-06035-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
9502M-06035-00
Superseded by 95027-06035-00
|
$2.10 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
9502M-06045-00
Superseded by 95027-06045-00
|
$3.10 | ||
|
Unavailable |
|||
|
#22
PLUG, OIL LEVEL
5HH-E5362-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-19800-00
Superseded by 93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93101-10800-00
Superseded by 93101-10142-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90465-08043-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90465-08041-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
