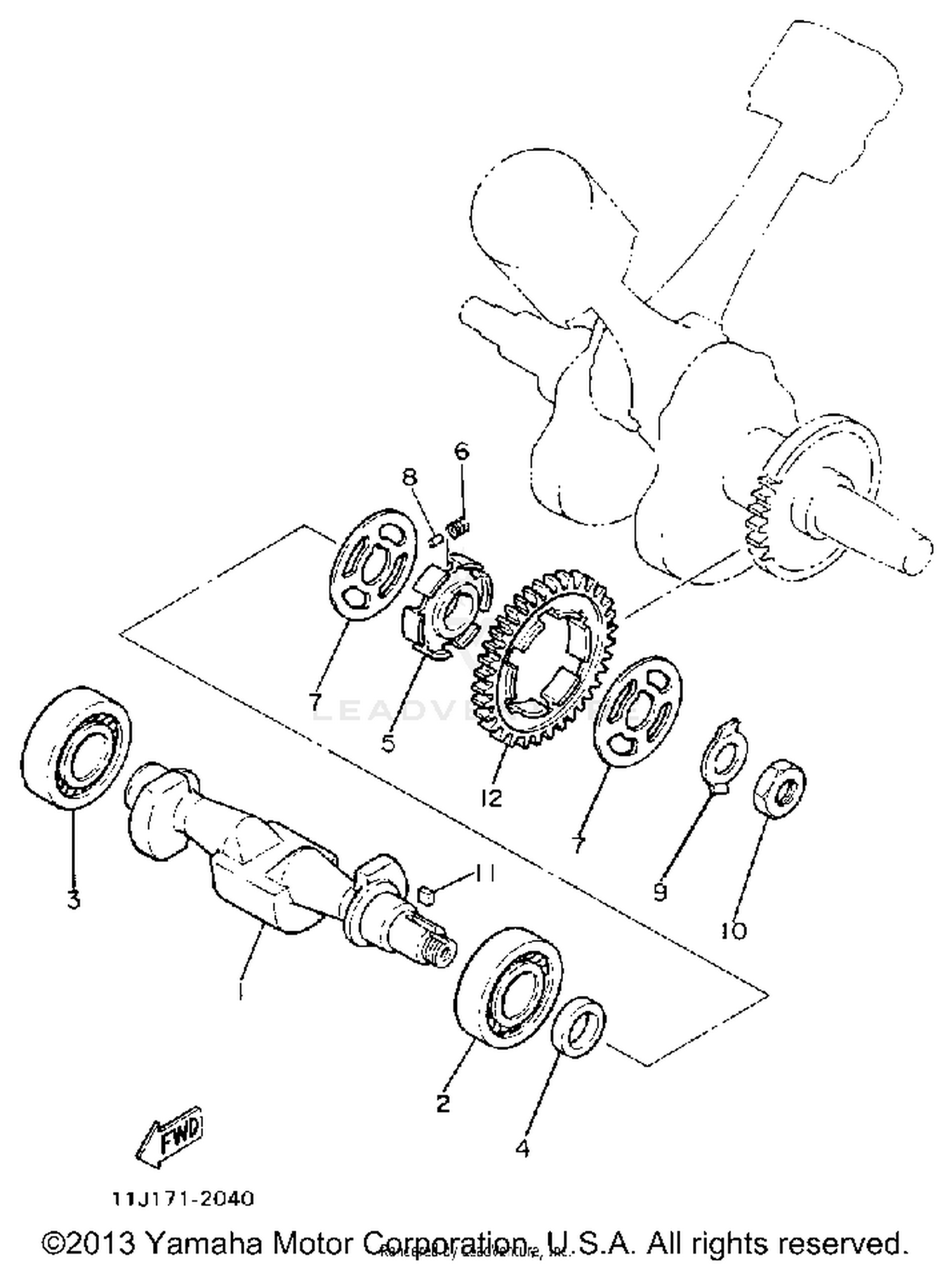

Balancer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT 1
11H-11454-00-00
|
$49.49 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30560-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-30525-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, plate
90201-200F1-00
|
$4.75 | ||
|
Unavailable |
|||
|
#5
BOSS, BUFFER
3Y1-11496-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-21133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, BEARING CVR
3Y1-11565-00-00
|
$4.18 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
93605-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, LOCK
90215-20158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPECIALL SHAPE
90179-16018-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, STRAIGHT
90282-05013-00
Superseded by 90282-05065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, BALANCE WT-45
11H-11531-00-00
|
$33.29 | ||
|
Unavailable |
|||
