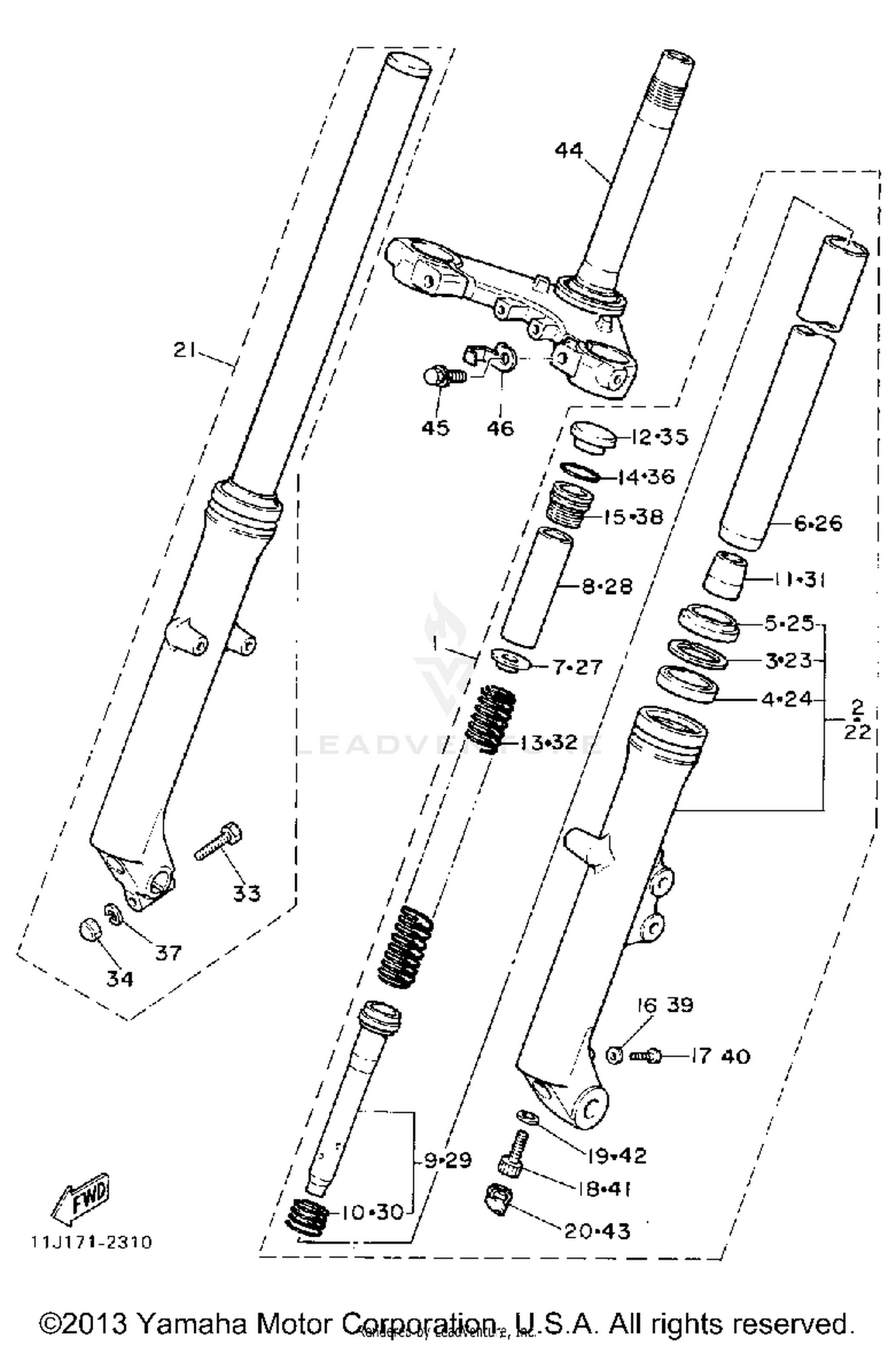

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
11H-23102-00-00
|
$205.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
11H-23126-00-38
|
$136.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
4G0-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, dust
4G0-23144-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER TUBE 1
11H-23110-00-00
|
$202.99 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
SPACER
11H-23118-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#9
CYLINDER, FRTFRK
11H-23170-00-00
|
$35.38 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, FRONT FORK
1T3-23168-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
11H-23141-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#14
GASKET
240-23114-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
11H-23111-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#16
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
11H-2312G-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#21
FRONT FORK ASSEMBLY R
11H-23103-00-00
|
$230.99 | ||
|
Unavailable |
|||
|
#22
TUBE, OUTER 2
11H-23136-00-38
|
$136.99 | ||
|
Unavailable |
|||
|
#23
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#24
OIL SEAL
4G0-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#25
SEAL, dust
4G0-23144-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
INNER TUBE 1
11H-23110-00-00
|
$202.99 | ||
|
Unavailable |
|||
|
#27
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#28
SPACER
11H-23118-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#29
CYLINDER, FRTFRK
11H-23170-00-00
|
$35.38 | ||
|
Unavailable |
|||
|
#30
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#31
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#32
SPRING, FRONT FORK
11H-23141-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#33
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT (CROWN)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP, FRONT FORK
1T3-23168-50-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
GASKET
240-23114-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#37
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, CAP
11H-23111-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#39
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#42
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#43
PLUG
11H-2312G-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#44
UNDER BRACKET COMP. (11H-23340-
11U-23340-30-33
|
$202.99 | ||
|
Unavailable |
|||
|
#45
BOLT 1
4G0-23346-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#46
CLAMP
11H-2312H-00-00
|
$3.16 | ||
|
Unavailable |
|||
