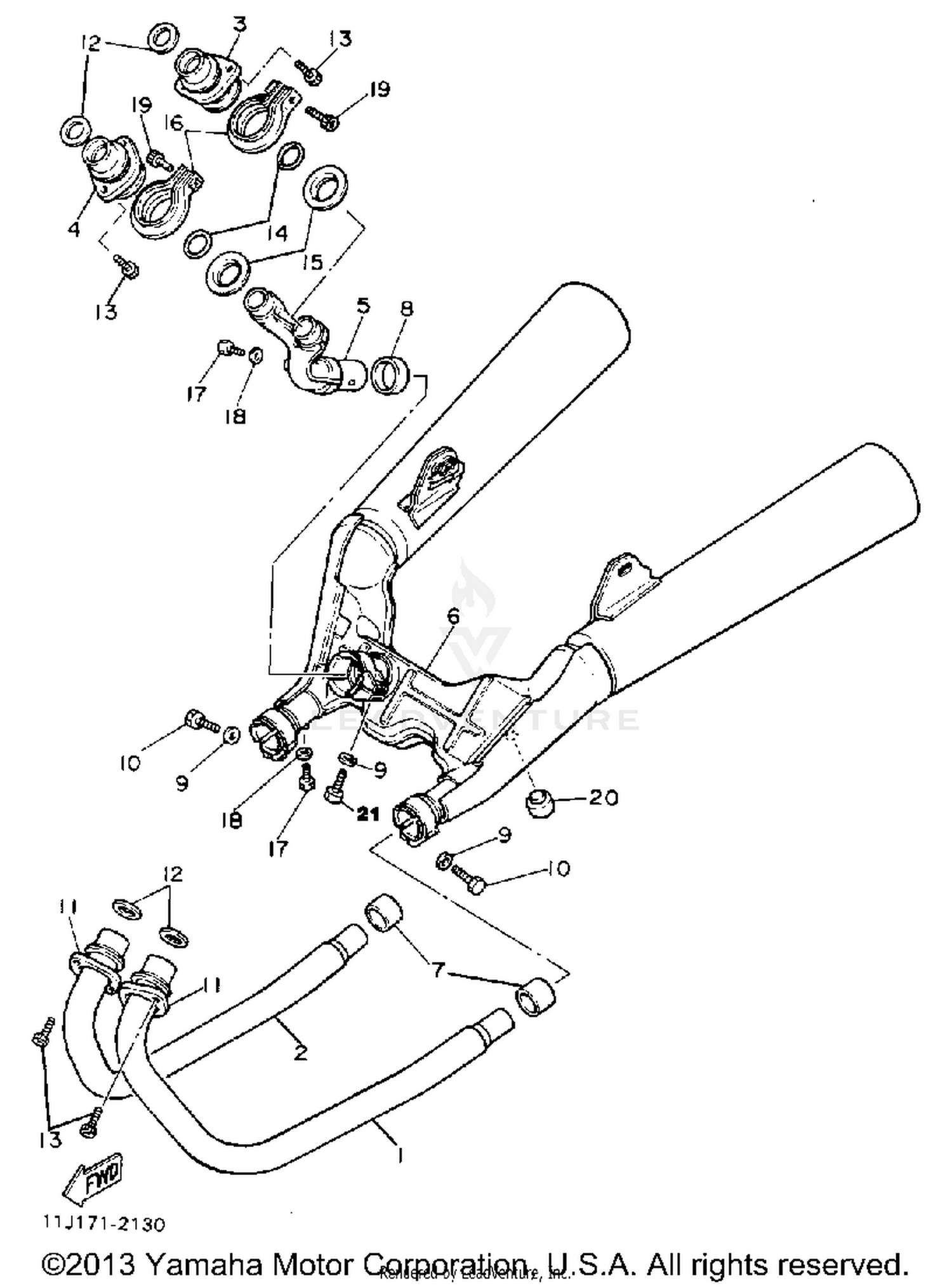

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
11H-14611-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST R
11H-14621-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#3
PIPE, EXHAUST 3
11H-14631-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#4
PIPE, EXHAUST 4
11H-14641-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
JOINT, exhaust 1
11H-14615-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#6
MUFFLER L (11H-14711-01)
11H-14711-02-00
|
$811.99 | ||
|
Unavailable |
|||
|
#7
GASKET, MUFFLER
4H7-14755-00-00
Superseded by 3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EXHAUST 4
1L9-14714-01-00
Superseded by 3JJ-14653-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, RING
11H-14612-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#12
GASKET, EXHAUST PIPE
4H7-14613-00-00
Superseded by 4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, muffler
11H-14714-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
RING, stopper
11H-14618-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#16
BAND, silencer
11H-14788-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, hexagon socket head
90110-06051-00
|
$3.10 | ||
|
Unavailable |
|||
|
#20
STOPPER, MAIN STAND
1A0-27114-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90101-08566-00
|
$4.75 | ||
|
Unavailable |
|||
