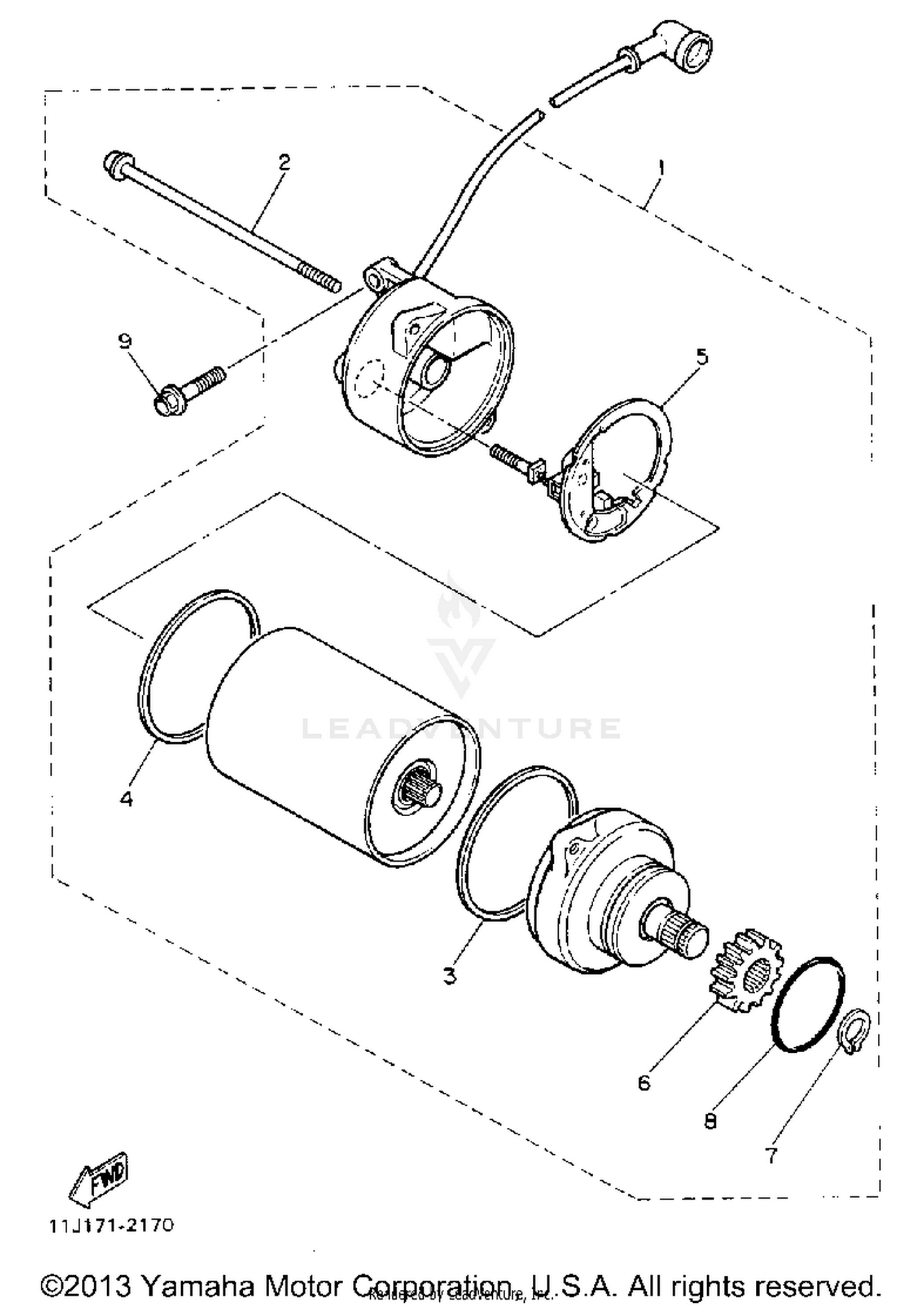

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASS''Y
11H-81800-60-00
|
$631.99 | ||
|
Unavailable |
|||
|
#2
BOLT
371-81826-20-00
|
$18.99 | ||
|
Unavailable |
|||
|
#3
GASKET
4G0-81844-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRUSH HOLDER ASS''Y
11H-81840-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#6
GEAR, STARTING MTR
11H-15511-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
11H-81847-00-00
Superseded by 4G0-81847-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
