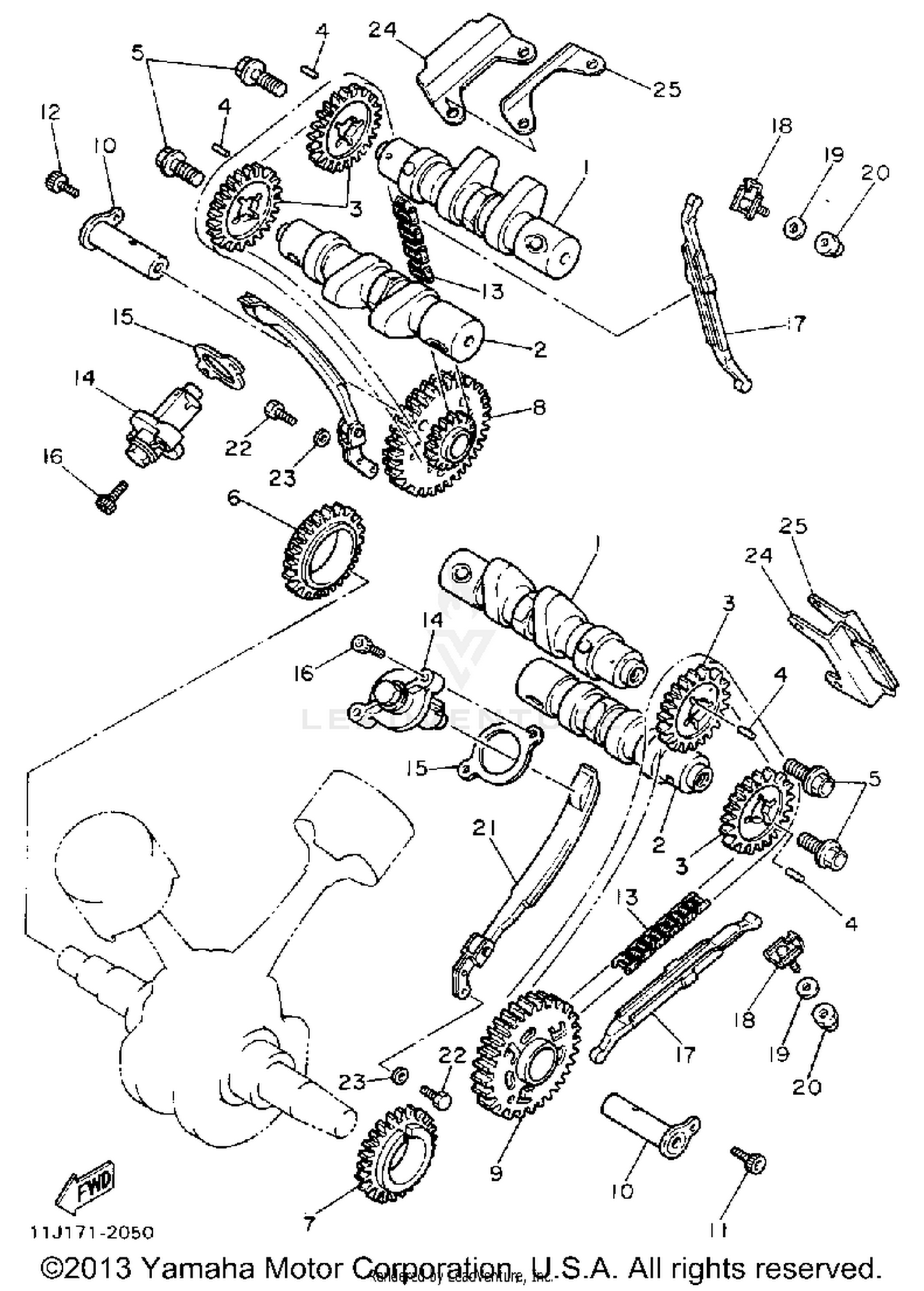

1982 Yamaha XZ550RJ VISION CAMSHAFT CHAIN OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
11H-12171-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, cam chain (28T)
11H-12176-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#3
SPROCKET, cam chain (28T)
11H-12176-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
93604-10011-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10217-00
Superseded by 90105-10153-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, DRIVE (28T)
11H-11536-00-00
|
$37.82 | ||
|
Unavailable |
|||
|
#7
GEAR, BREAKER DRIVE
11H-11534-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#8
CAM CHAIN SPROCKET ASS''Y 1
11H-11540-00-00
|
$86.94 | ||
|
Unavailable |
|||
|
#9
CAM CHAIN SPRKT 2
11H-11550-00-00
|
$65.75 | ||
|
Unavailable |
|||
|
#10
SHAFT, TENSIONER
11H-12247-00-00
|
$16.32 | ||
|
Unavailable |
|||
|
#11
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CHAIN
94590-42112-00
|
$67.85 | ||
|
Unavailable |
|||
|
#14
TENSIONER ASSY, CAM CHAIN
11H-12210-02-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, TENSIONER CASE
3BT-12213-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, chain 1
11H-12251-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#18
PLATE, GDE STPPR 1
11H-12233-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#19
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, chain 2
11H-12252-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#22
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, STOPPER 2
11H-12241-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#25
WASHER, GUIDE STOP
11H-12236-00-00
|
$3.36 | ||
|
Unavailable |
|||
