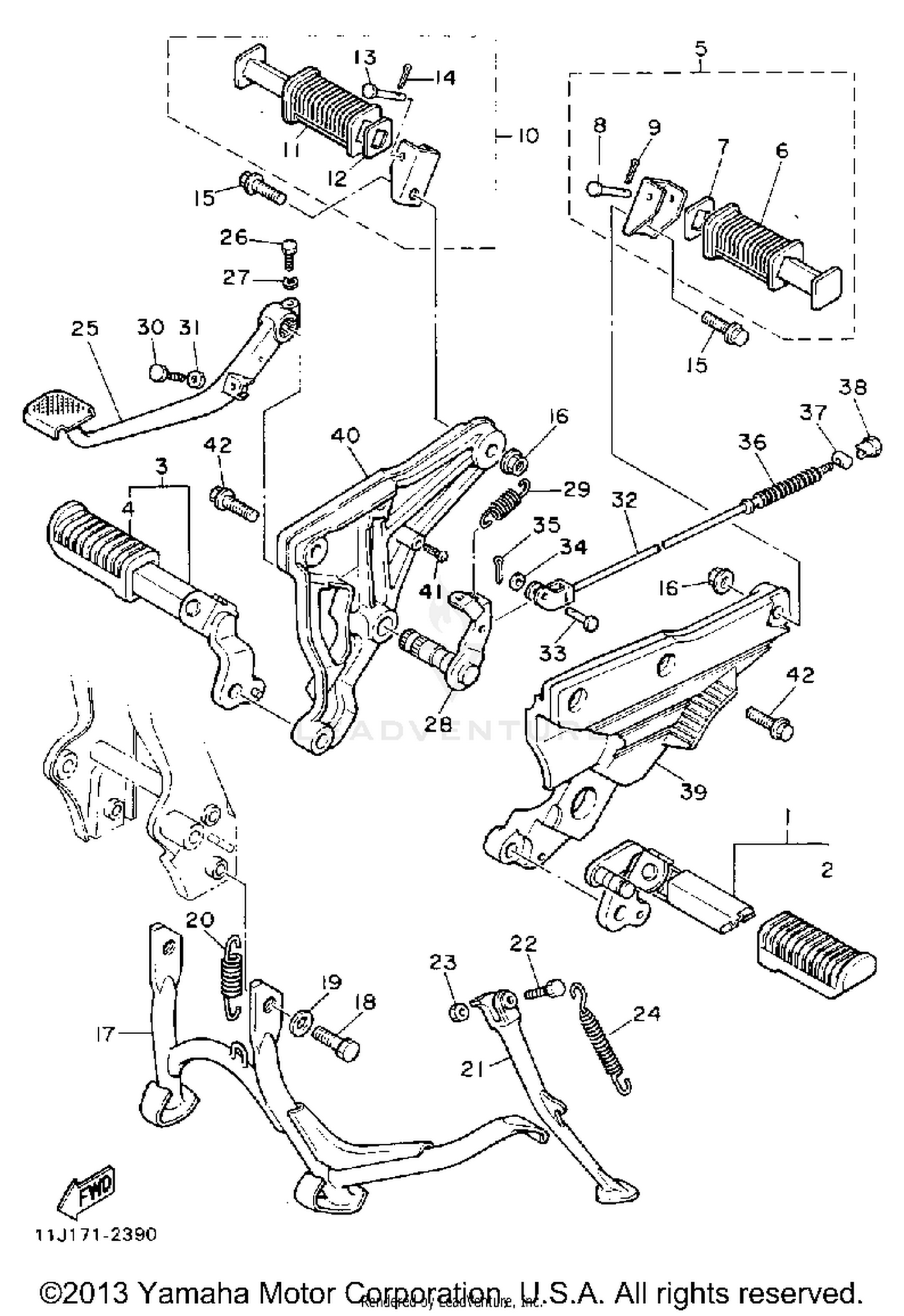

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FOOTREST ASSEMBLY L
11H-27410-00-R4
|
$32.99 | ||
|
Unavailable |
|||
|
#2
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRT FOOTREST ASSEMBLY R
11H-27420-00-R4
|
$42.99 | ||
|
Unavailable |
|||
|
#4
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#5
REAR FOOTREST ASS''Y 1
4G0-27430-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#6
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, WITH HOLE
90240-06042-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR FOOTREST ASS''Y 2
4G0-27440-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#11
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Unavailable |
|||
|
#13
PIN, WITH HOLE
90240-06042-00
|
$2.65 | ||
|
Unavailable |
|||
|
#14
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95811-10040-00
Superseded by 95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAND, MAIN
11H-27111-00-R4
|
$40.00 | ||
|
Unavailable |
|||
|
#18
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, tension
90506-40256-00
|
$17.49 | ||
|
Unavailable |
|||
|
#21
STAND, side
28V-27311-00-R4
|
$64.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PEDAL, BRAKE
11H-27211-00-93
|
$119.99 | ||
|
Unavailable |
|||
|
#26
BOLT
90109-06468-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT, BRAKE PEDAL
11H-27212-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#29
SPRING, TENSION
90506-20115-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROD, BRAKE
11U-27231-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET 2
11H-27442-00-00
|
$91.90 | ||
|
Unavailable |
|||
|
#40
BRACKET 3
11H-27443-00-00
|
$54.98 | ||
|
Unavailable |
|||
|
#41
HOOK 1
4L0-2744E-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
