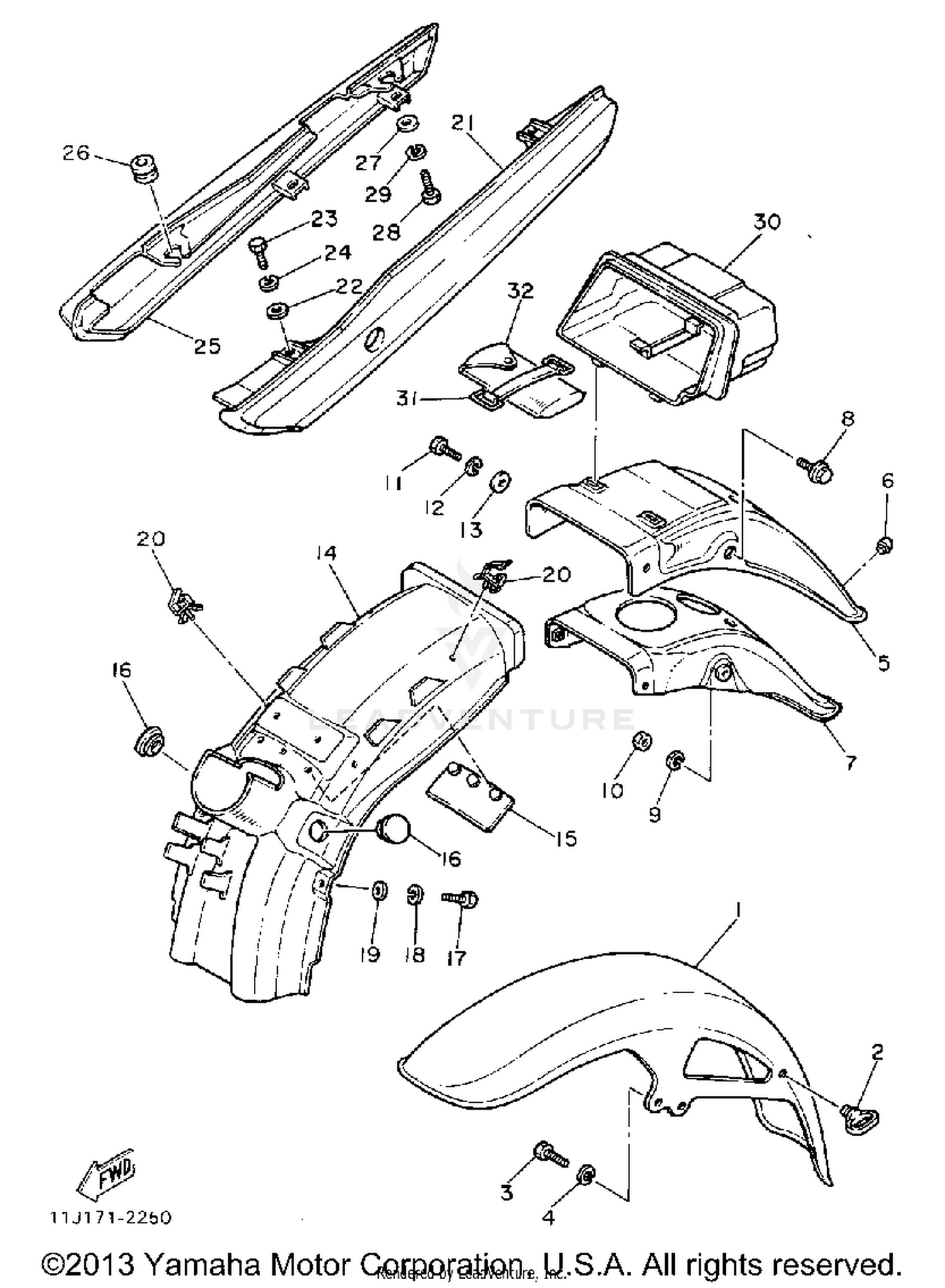

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
11H-21510-00-6G
|
$116.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
11H-21510-00-6M
|
$116.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
11H-21510-00-63
|
$116.99 | ||
|
Unavailable |
|||
|
#2
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, rear
11H-21611-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#6
DAMPER 2
5A8-21639-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
REINF. COMP.
11H-21670-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95816-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, MUD
11H-21629-00-00
|
$16.54 | ||
|
Unavailable |
|||
|
#15
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-30167-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, rear fender 2
11H-2163A-00-6G
|
$46.33 | ||
|
Unavailable |
|||
|
#
COVER, REAR FENDER
11H-2163A-00-6M
|
$46.33 | ||
|
Unavailable |
|||
|
#
COVER, REAR FENDER
11H-2163A-00-63
|
$84.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#25
COVER, rear fender 3
11H-2163E-00-6G
|
$50.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FNDR.3
11H-2163E-00-6M
|
$50.99 | ||
|
Unavailable |
|||
|
#
COVER, REAR FNDR.3
11H-2163E-00-63
|
$46.33 | ||
|
Unavailable |
|||
|
#26
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#30
BOX
11H-2160E-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
BAND, BATTERY
122-82131-00-00
Superseded by 26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
TOOL KIT
1AA-W2810-00-00
|
$84.99 | ||
|
Unavailable |
|||
