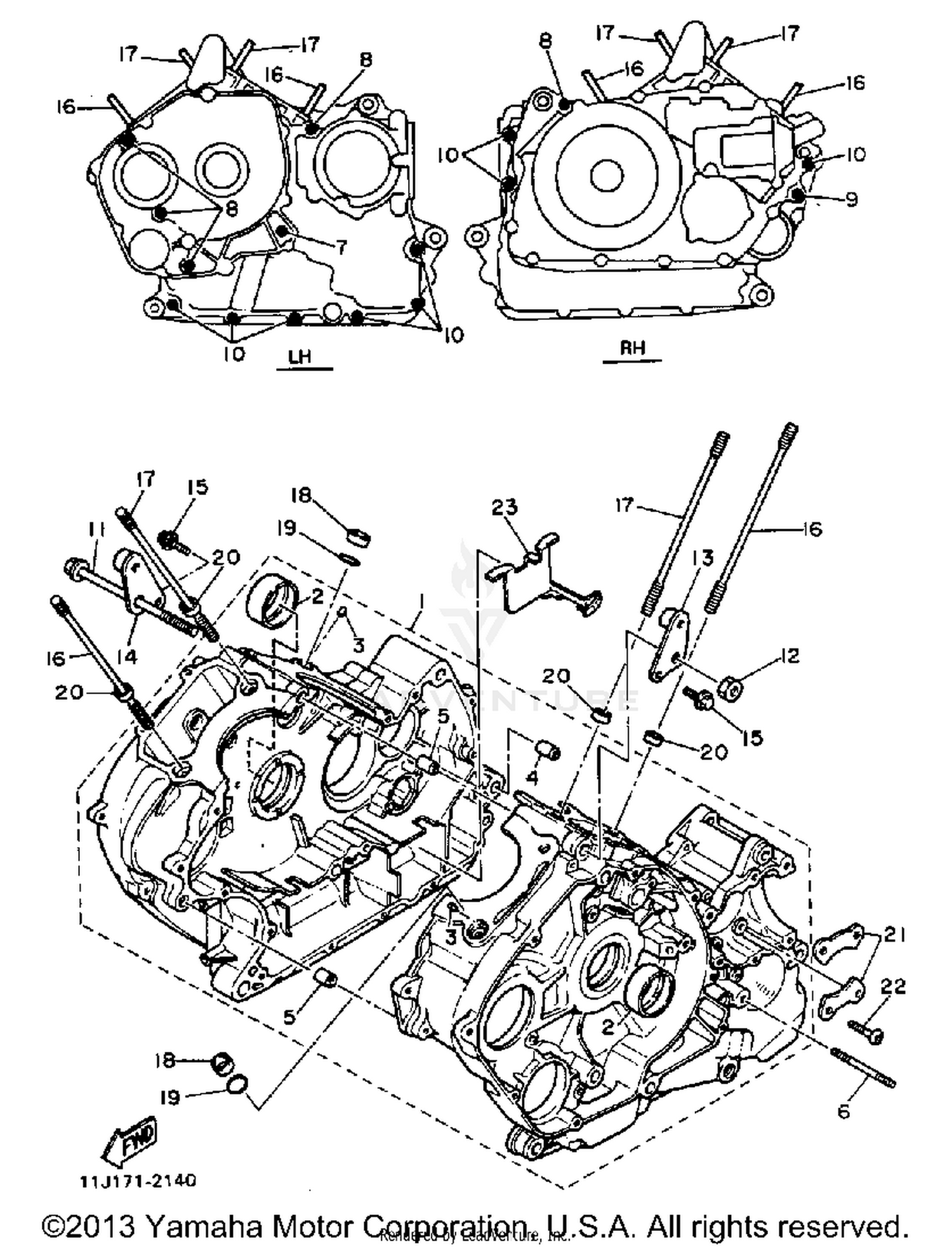

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
11H-15100-02-00
|
$632.99 | ||
|
Unavailable |
|||
|
#2
PLANE BEARING, CRANKSHAFT 1
22U-11416-80-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLANE BEARING, CRANKSHAFT 1
22U-11416-90-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE 1
11H-15138-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91810-17016-00
Superseded by 91815-16017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
95611-10650-00
|
$1.98 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91311-06080-00
Superseded by 91314-06080-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SOCKET HEAD
91311-06100-00
|
$4.55 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91311-06045-00
Superseded by 91314-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91311-06030-00
Superseded by 91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10042-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE
11H-15113-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#14
PLATE, BUFFLE 1
11H-15123-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-10380-00
Superseded by 90116-10225-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
90116-10389-00
|
$3.57 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-16547-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Unavailable |
|||
|
#21
PLATE, BEARING COVER
11H-15383-01-00
Superseded by 11H-15383-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-08152-00
Superseded by 90149-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, OIL PUMP
11H-15412-00-00
|
$3.76 | ||
|
Unavailable |
|||
