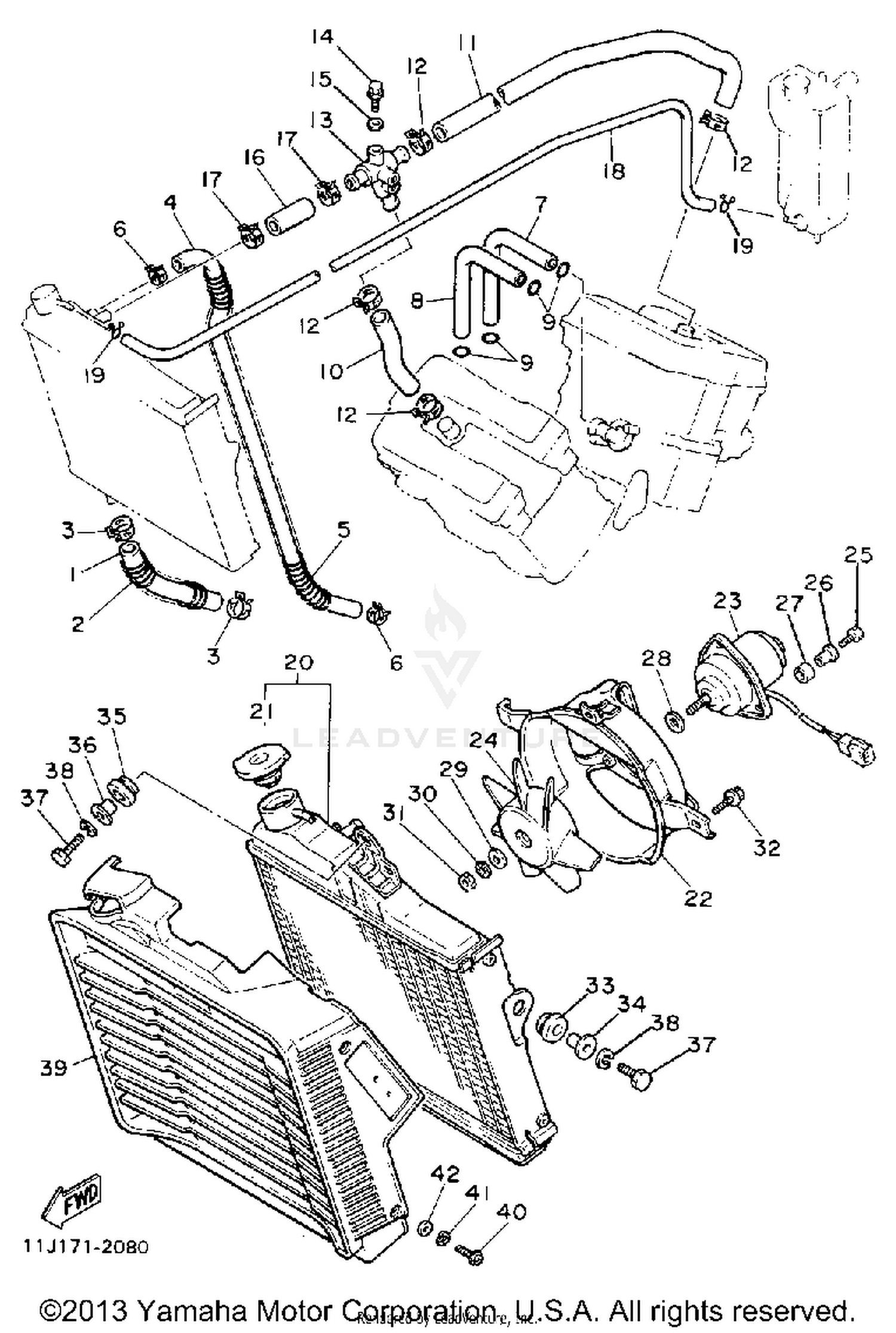

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
11H-12481-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#2
COVER, WATER INLET
11H-12516-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90460-30158-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 2
11H-12482-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#5
COVER, WATER BYPASS
11H-12527-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-19065-00
Superseded by 90467-19051-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 4
11H-12484-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#8
PIPE 5
11H-12485-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 6
11H-12476-00-00
|
$13.84 | ||
|
Unavailable |
|||
|
#11
PIPE 7
11H-12477-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#12
CLIP
90467-21068-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
11H-12479-00-00
|
$36.74 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95811-10016-00
Superseded by 95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-10031-00
Superseded by 90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE 1
11H-12576-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#17
HOSE CLAMP ASSY
90460-30158-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
HOSE 1
11H-12576-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#19
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, RADIATOR
11H-12462-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, RADIATOR
11H-12462-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#22
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#24
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#25
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#26
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#27
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#28
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#29
WASHER
11H-12673-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#30
WASHER, INTERNAL TOOTH
92990-05300-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-07037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
90480-19283-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-06033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, radiator
11H-12467-02-00
|
$83.99 | ||
|
Unavailable |
|||
|
#40
SCREW, BIND
98906-05012-00
Superseded by 98907-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, wave
90206-05073-00
|
$1.54 | ||
|
Unavailable |
|||
|
#42
WASHER
92906-05200-00
Superseded by 92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
