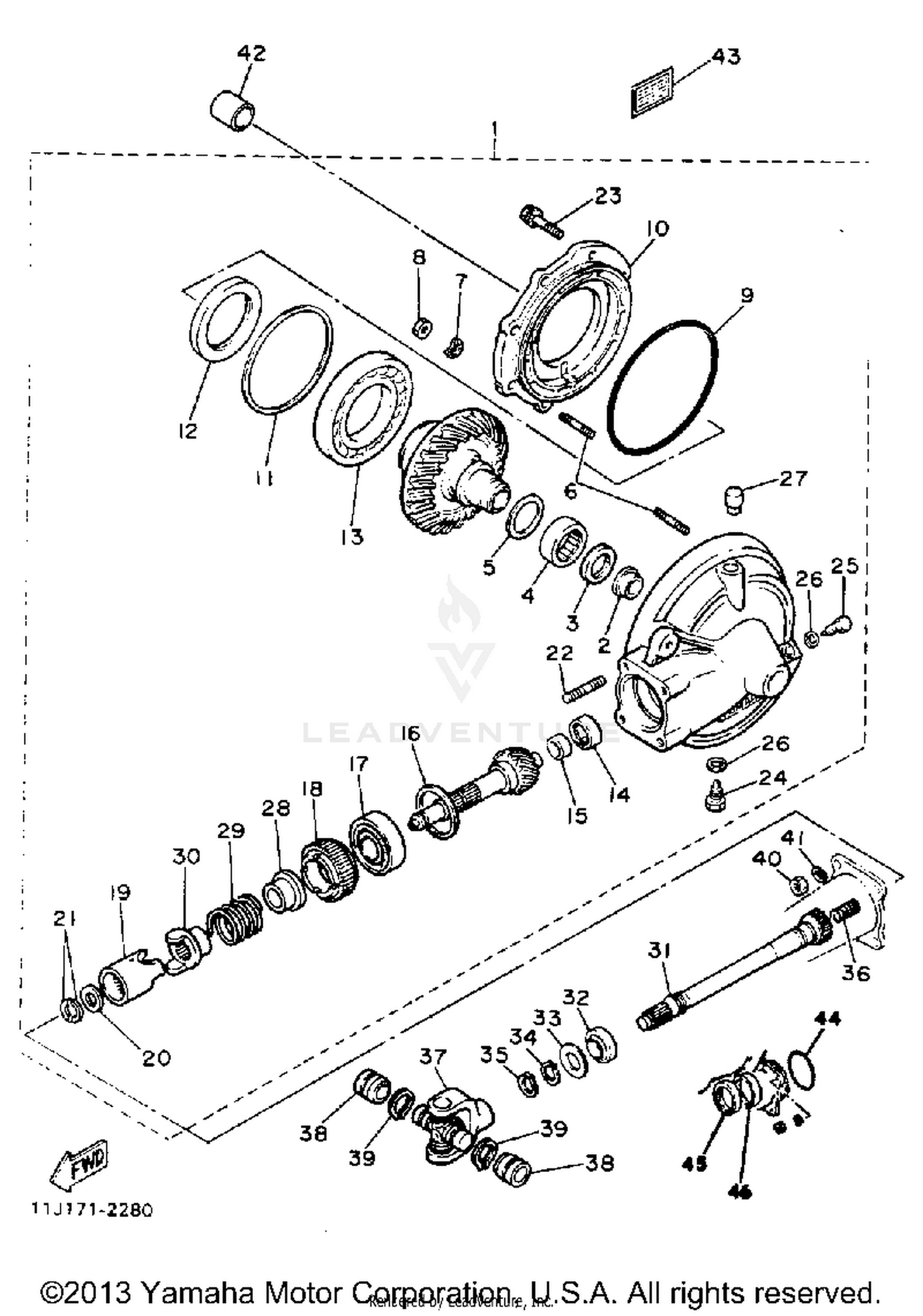

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR AXL GR CASE ASSEMBLY
11H-46101-00-00
|
$632.99 | ||
|
Unavailable |
|||
|
#2
COLLAR, GUIDE
4H7-46153-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93101-30084-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93311-43729-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, THRUST
4H7-46118-00-16
|
$9.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
1J7-46118-Y0-18
|
$11.99 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
1J7-46118-Y0-19
|
$11.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
1J7-46118-Y0-20
|
$17.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
4H7-46118-00-23
|
$9.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
4H7-46118-00-22
|
$16.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
4H7-46118-00-17
|
$15.99 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
4H7-46118-00-15
|
$13.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
4H7-46118-00-14
|
$13.49 | ||
|
Unavailable |
|||
|
#
WASHER, THRUST
1J7-46118-Y0-21
|
$17.99 | ||
|
Unavailable |
|||
|
#6
BOLT, STUD
90116-08247-00
|
$5.99 | ||
|
Unavailable |
|||
|
#7
WASHER
92901-08700-00
Superseded by 92907-08700-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93211-44348-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, BEARING
4H7-46152-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR
1J7-46117-Y0-35
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93102-70167-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93316-01403-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING ASSY
93317-41510-00
Superseded by 2H7-46102-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RACE, INNER
2H7-46122-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-30533-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, BEARING
11H-46125-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#19
COUPLING, GEAR
11H-46123-00-00
|
$62.59 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-203F5-00
|
$3.49 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST
11H-17529-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#22
BOLT, STUD
90116-10327-00
|
$2.20 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, STRAIGHT SCREW
90340-14118-00
Superseded by 90340-14004-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
BREATHER COMP.
2H7-17590-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER
11H-17524-00-00
|
$14.20 | ||
|
Unavailable |
|||
|
#29
SPRING, COMPRESSION
90501-65683-00
|
$5.44 | ||
|
Unavailable |
|||
|
#30
CAM, DRIVEN
11H-17527-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#31
SHAFT, DRIVE
11H-46172-01-00
|
$47.99 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
93108-23008-00
|
$6.14 | ||
|
Unavailable |
|||
|
#33
WASHER, plate
90201-233F6-00
|
$3.30 | ||
|
Unavailable |
|||
|
#34
CIRCLIP
93410-23056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, COMPRESSION
90501-16491-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CROSS JOINT COMP.
4X7-46180-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93399-99926-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
93440-20088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
90179-10377-00
Superseded by 90179-10013-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-172A5-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
LABEL, OIL CAUTION
4H7-46181-10-00
|
$1.25 | ||
|
Unavailable |
|||
|
#44
O-RING
93210-60426-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
OIL SEAL
93101-47108-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
BEARING, cylindrical
93317-64725-00
|
$54.99 | ||
|
Unavailable |
|||
