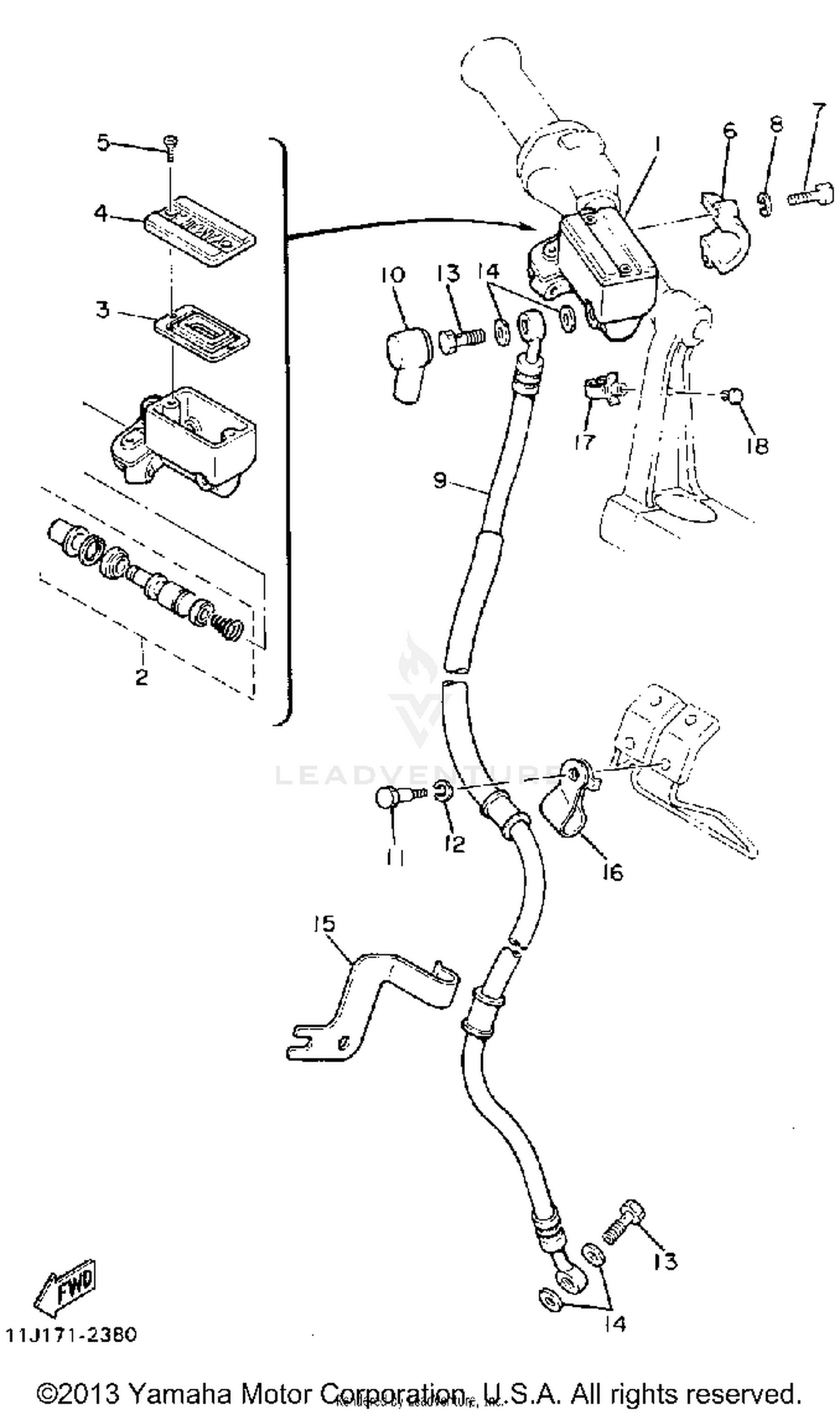

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
2RJ-25870-00-00
Superseded by 3TB-25870-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
23L-W0041-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
11H-25872-00-00
|
$40.00 | ||
|
Unavailable |
|||
|
#10
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#13
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, brake hose 1
11H-25875-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
HOLDER, BRKE HOSE 2
11H-25876-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#17
GUIDE, CABLE
11H-26279-00-00
|
$4.58 | ||
|
Unavailable |
|||
|
#18
PLUG, SPEC''L SHAPE
90338-06128-00
|
$2.37 | ||
|
Unavailable |
|||
