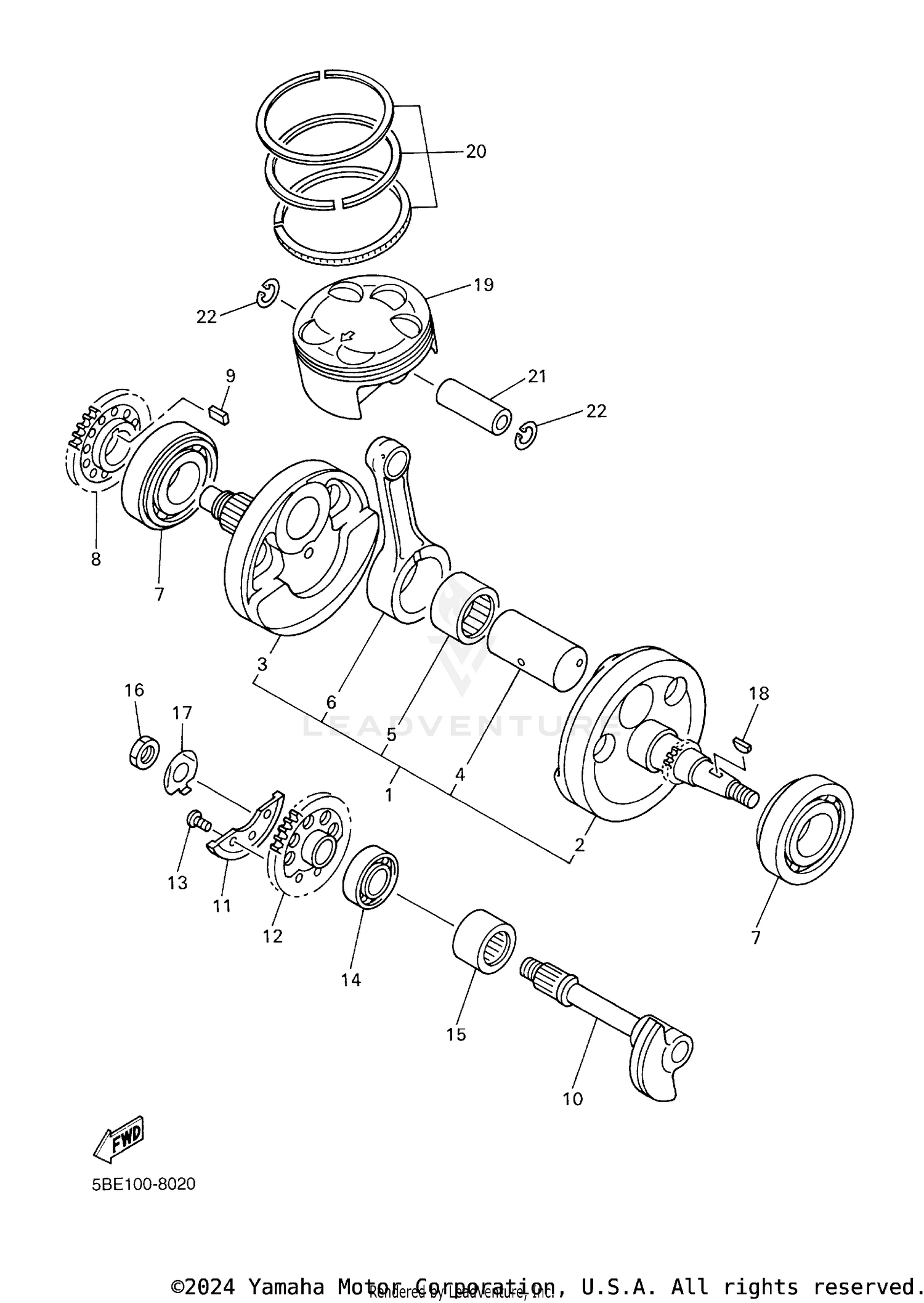

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5JG-11400-00-00
|
$637.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
5JG-11412-00-00
|
$406.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
5JG-11422-00-00
|
$338.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
5BE-11681-00-00
Superseded by 5TG-11681-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-634B0-00
Superseded by 93310-63412-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
5JG-11651-00-00
Superseded by 5JG-11651-10-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30633-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
5BE-11536-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#9
KEY, STRAIGHT
90282-05058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT 1
5BE-11455-00-00
|
$335.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WEIGHT 1
5BE-11454-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, BALANCE WT
5BE-11531-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06250-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93311-62574-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK
90215-14204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON (STD)
5JG-11631-00-00
Superseded by 5NG-11631-10-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON RING SET (STD)
5JG-11603-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, PISTON
5JG-11633-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93420-19084-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
