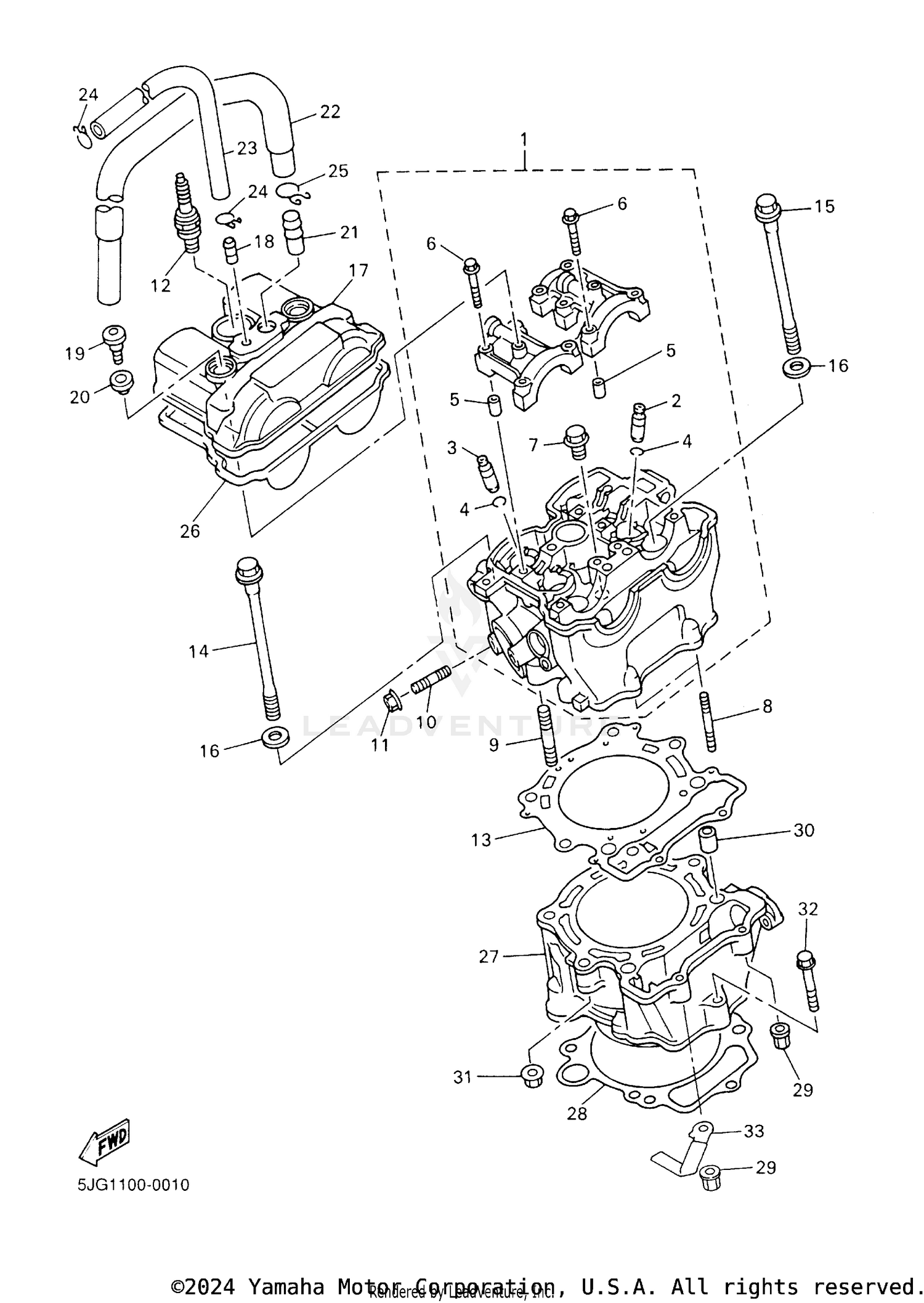

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5JG-11102-00-00
Superseded by 5JG-11102-20-00
|
$870.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, INTAKE VALVE
5BE-11133-10-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EXHAUST VALVE
5BE-11134-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-10153-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-067A6-00
Superseded by 90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-12112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
95617-06635-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
95617-08635-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
95617-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, SPARK (NGK CR8E)
94701-00329-00
Superseded by CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
PLUG, SPARK (NGK CR8E)
94701-00330-00
Superseded by CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
CR9E NGK SPLUG 4PK
94701-00319-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
CR9E NGK SPLUG 4PK
94701-00318-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#13
GASKET, CYLINDER HEAD 1
5JG-11181-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-104A7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-106A3-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-101A4-00
Superseded by 90201-102G9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD 1
5BE-11191-00-00
|
$207.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, BREATHER 2
5BE-11167-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, MOUNT 1
4KG-1111G-00-00
Superseded by 5EA-1111G-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, BREATHER 2
371-11167-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, BREATHER 1
5BE-11166-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE
90445-112K0-00
Superseded by 90445-117F2-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, HEAD COVER 1
5BE-11193-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CYLINDER 1
5JG-11311-00-00
Superseded by 5JG-11311-11-00
|
$642.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, CYLINDER
5BE-11351-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL
93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-08270-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP, HOSE 1
5JG-11387-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
