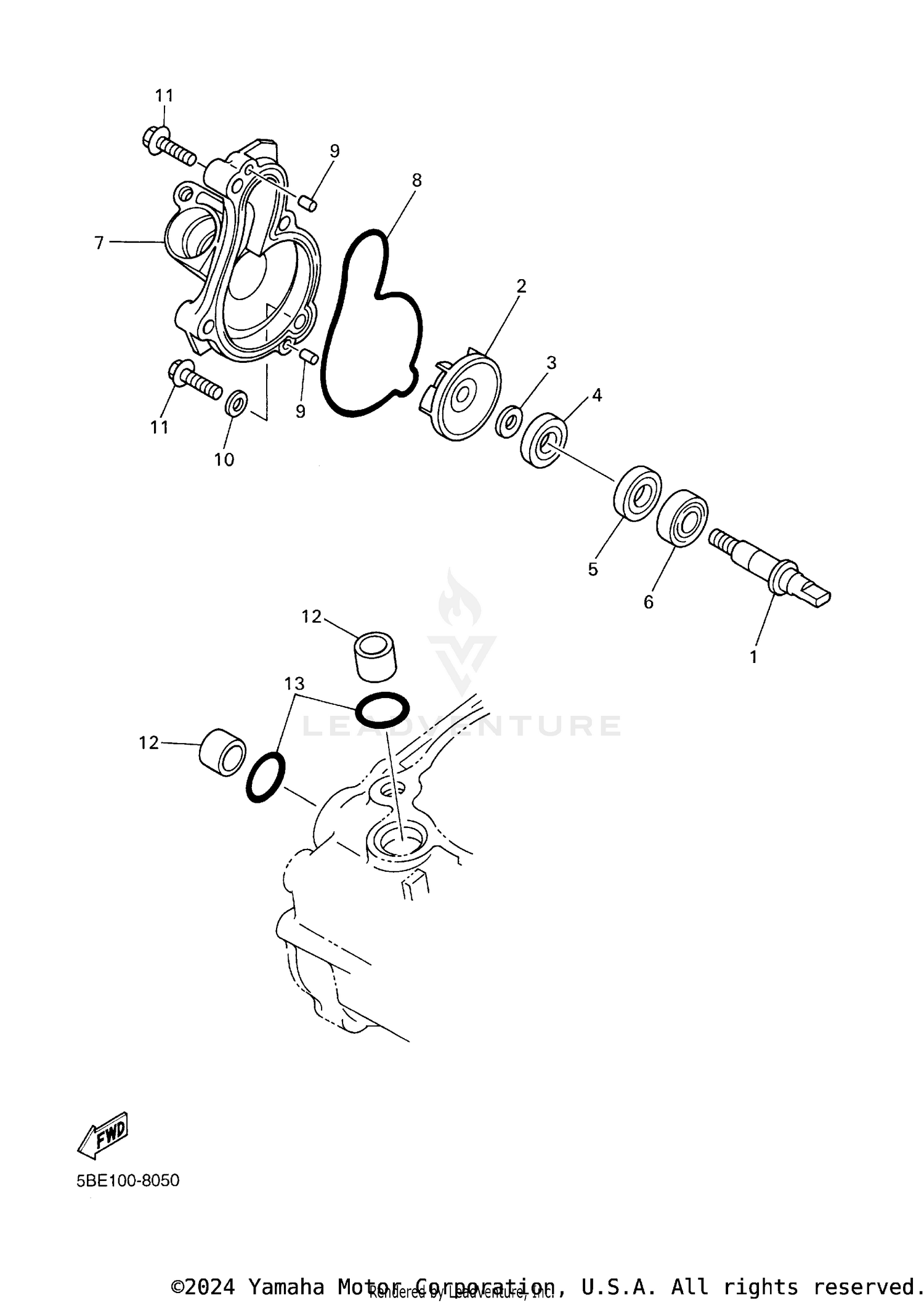

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, IMPELLER
5GR-12458-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER, WATER PUMP
5DJ-12451-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08512-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93109-11073-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (B6001)
93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HOUSING
5BE-12422-10-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
5BE-12439-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, WATER
5BE-12564-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-19758-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
