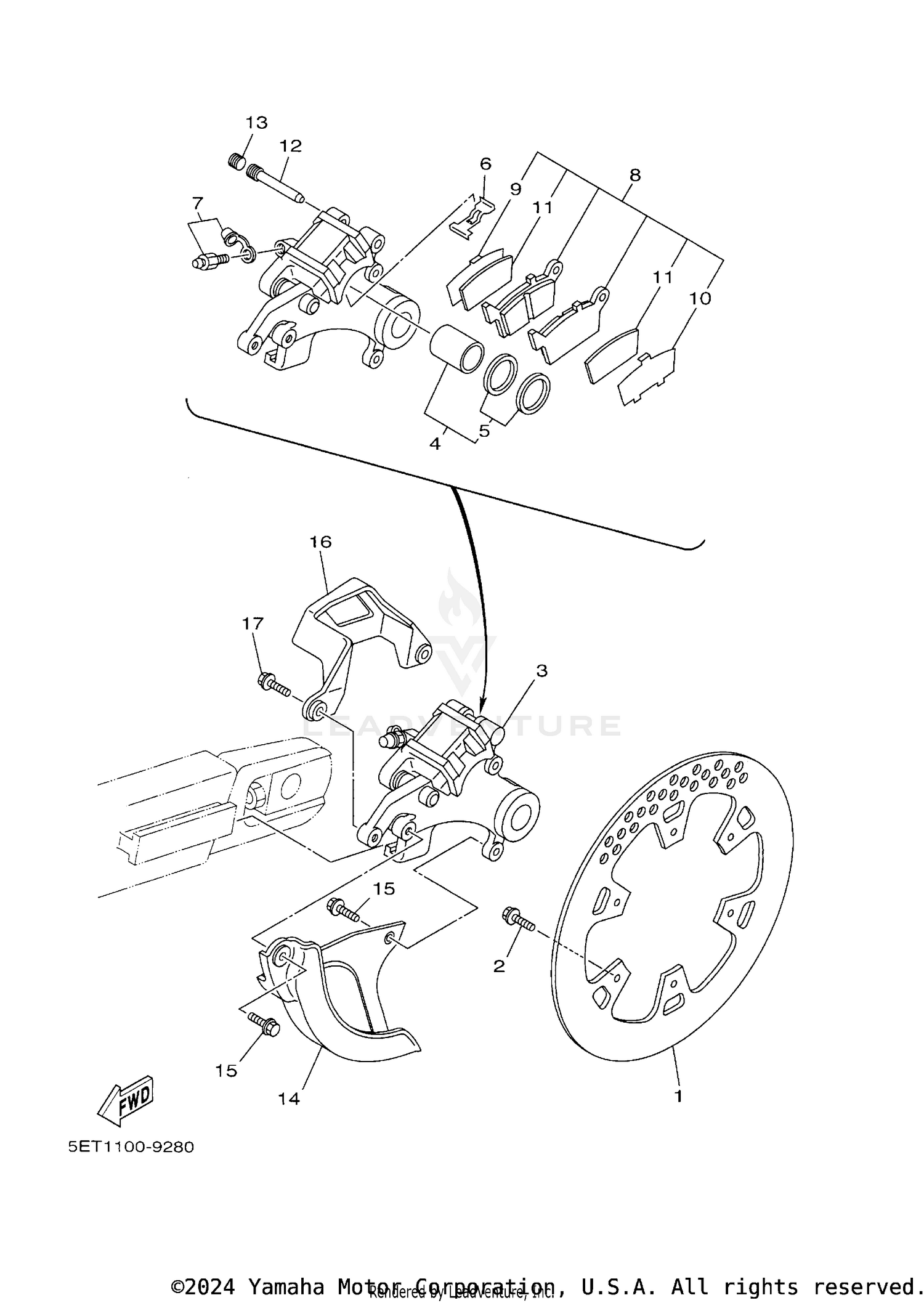

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5DH-2582W-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90109-065G4-00
Superseded by 90105-06109-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
5GR-2580W-00-00
|
$325.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
5ET-W0057-50-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5ET-W0047-50-00
Superseded by 4ES-W0047-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-50-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
5GR-W0046-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, CALIPER
5DH-25828-50-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
5DH-25827-50-00
|
$15.49 | ||
|
Unavailable |
|||
|
#11
INSULATOR, HEAT
5GR-22898-50-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
PIN, PAD
8CR-25924-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
5DH-25916-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, DISK BRAKE
5DH-25718-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR
4GY-27491-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
