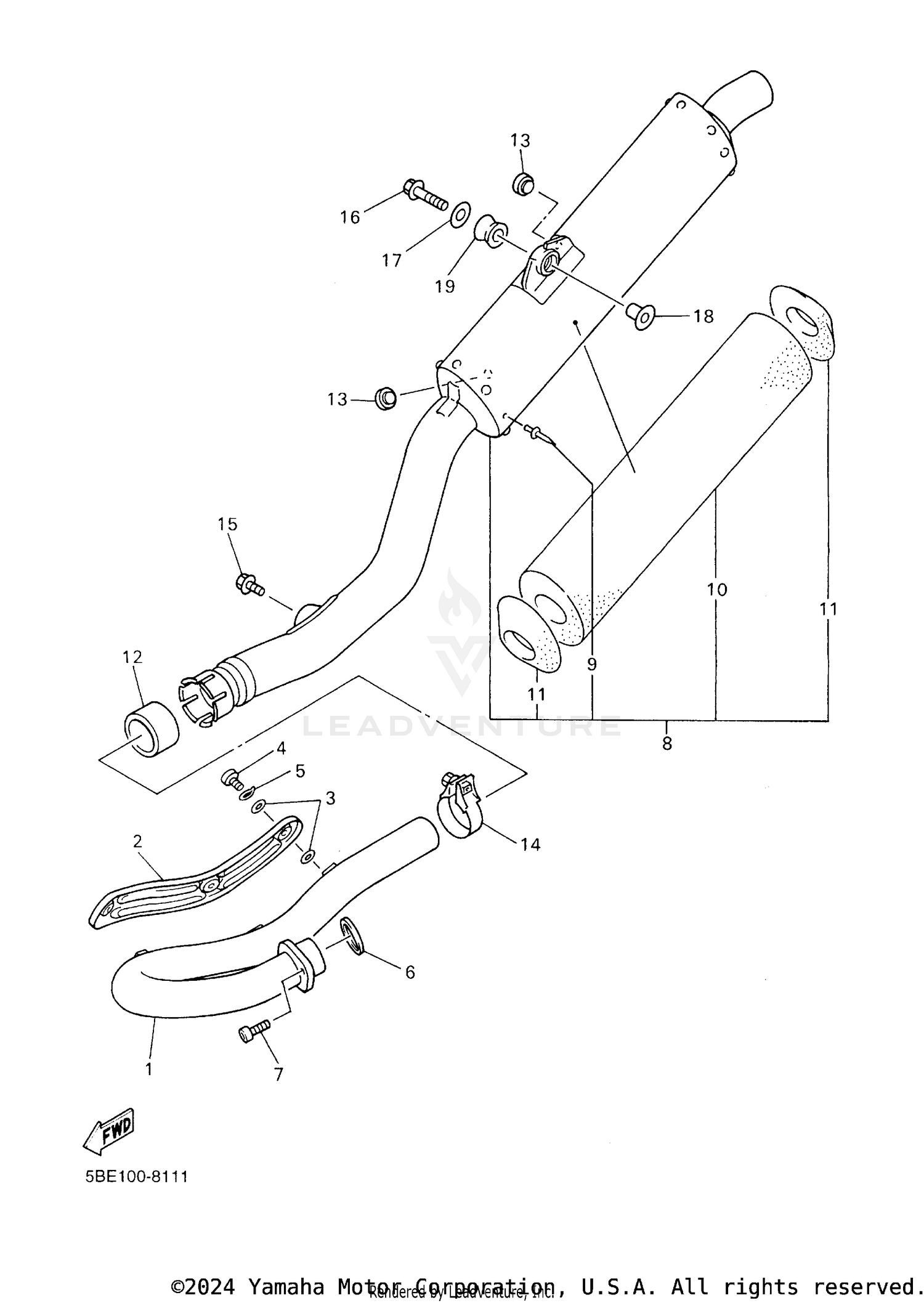

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5BE-14611-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5BE-14628-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3VD-14613-00-00
Superseded by 3VD-14613-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SILENCER, EXHAUST
5JG-14753-00-00
|
$937.99 | ||
|
Unavailable |
|||
|
#9
RIVET, MONEL (F14)
90267-48121-00
Superseded by 90267-48910-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FIBER
5JG-1469A-00-00
|
$296.99 | ||
|
Unavailable |
|||
|
#11
FIBER
5BE-1469E-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
3GW-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95817-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-0814J-00
Superseded by 90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
