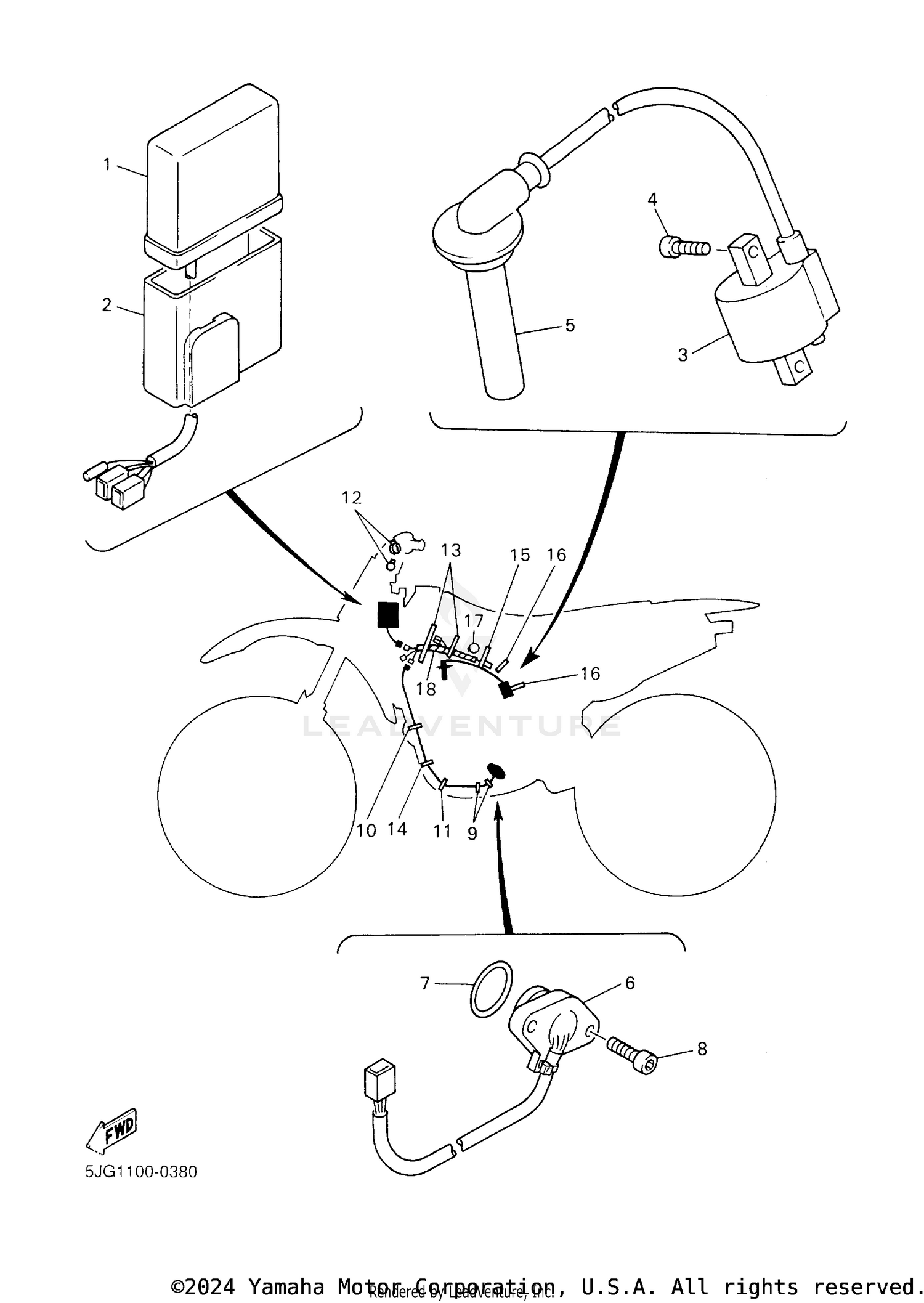

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5JG-85540-00-00
|
$462.99 | ||
|
Unavailable |
|||
|
#2
BAND
5BE-85546-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#3
IGNITION COIL ASSY
5BE-82310-00-00
Superseded by 4MX-82310-02-00
|
$74.99 | ||
|
Unavailable |
|||
|
#4
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
5BE-82370-00-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
5BE-82540-01-00
Superseded by 5BE-82540-03-00
|
$67.99 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-21276-00
Superseded by 93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BINDING
90154-05073-00
Superseded by 90154-05046-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-16061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE
90460-15126-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-13077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, SUB LEAD
5JG-82509-00-00
|
$97.99 | ||
|
Unavailable |
|||
