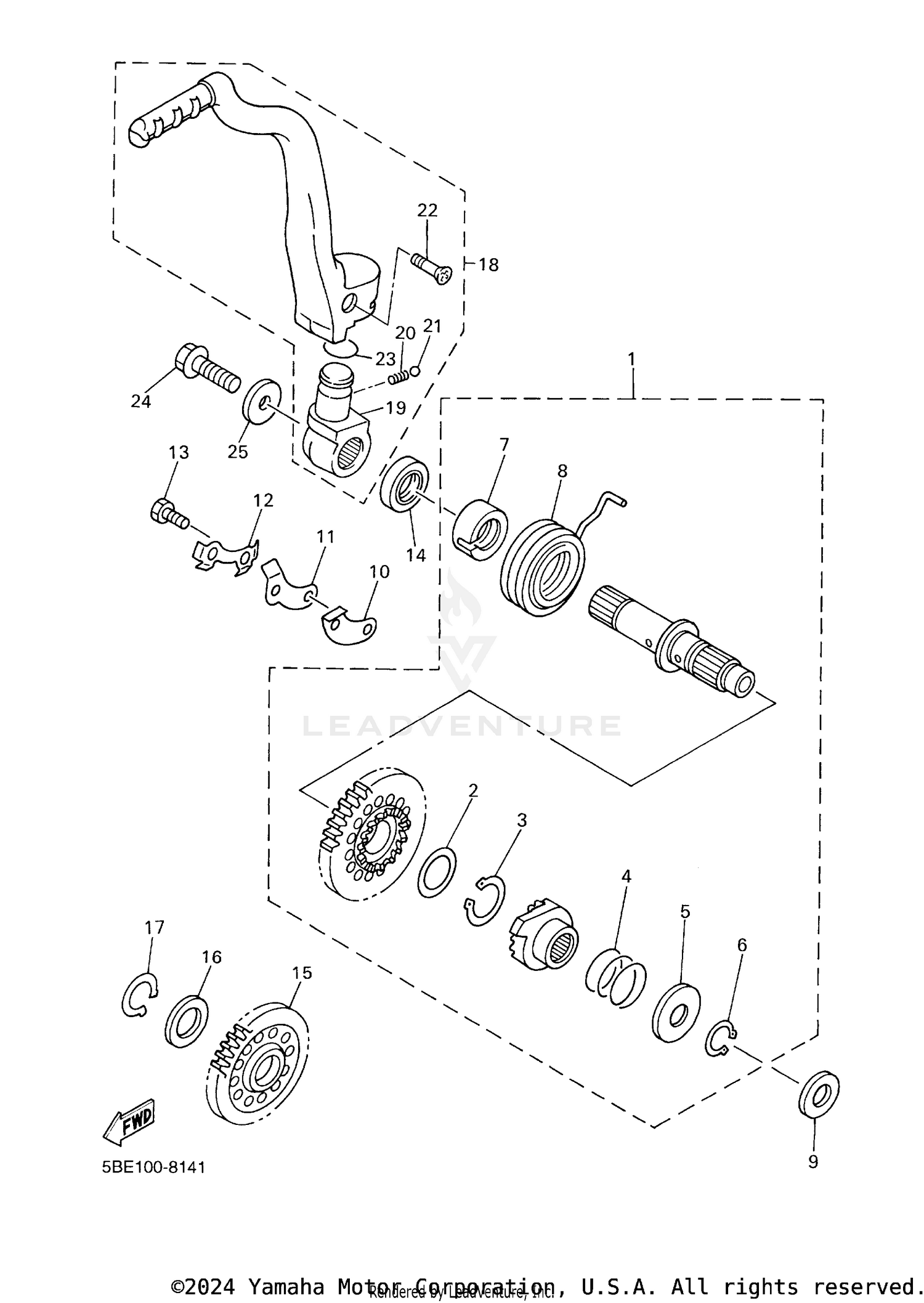

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK SHAFT ASSY
5GR-15601-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE (T=0.5)
90201-20685-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, COMPRESSION
90501-16107-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-167P7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-16400-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPRING
5GR-15664-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TORSION
90508-30743-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-162H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER
5BE-15668-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, RATCHET WHEEL
5BE-15674-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
WASHER, LOCK
5BE-15686-01-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06001-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, KICK IDLE
5BE-15651-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
KICK CRANK ASSY
5BE-15620-02-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOSS, KICK CRANK
3SP-15621-02-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-13720-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, COUNTERSUNK
90152-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-19216-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-08752-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-087A9-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
