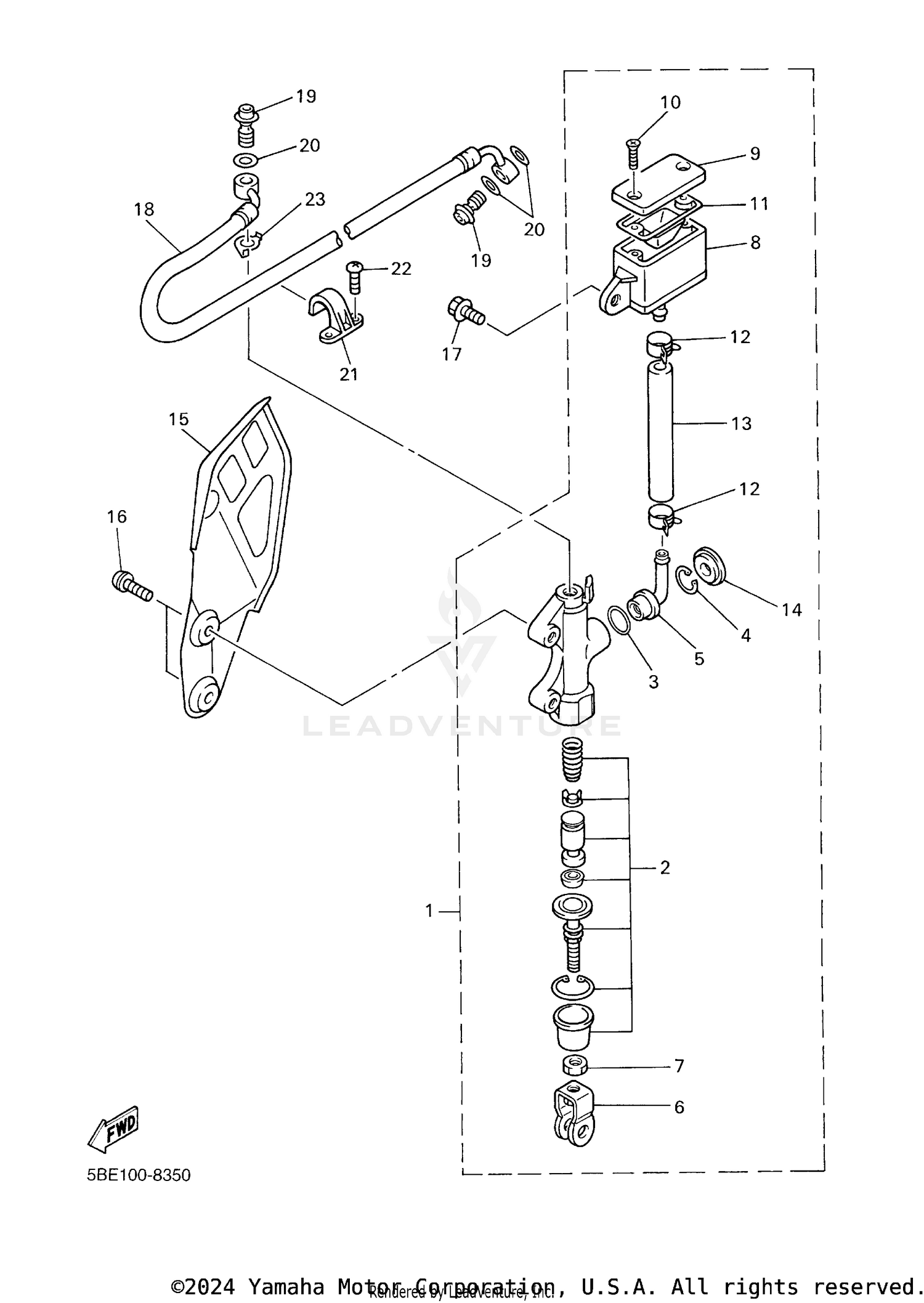

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. MASTER CYLINDER ASSY.
5JG-2583V-00-00
|
$233.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4SS-W0042-50-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
4ML-2582A-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
3SP-27222-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95301-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANK, RESERVOIR
5BE-25894-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RESERVOIR
5BE-25852-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98706-04040-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM, RESERVOIR
56A-25854-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-12085-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, RESERVOIR
5BE-25895-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
COVER, DUST
3FV-2589A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 2
5BE-2117M-00-00
Superseded by 5BE-2117M-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE 2
5DH-25873-00-00
Superseded by 5MV-25873-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, BRAKE HOSE 2
2VM-25876-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING
97780-50510-00
Superseded by 97780-50610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK
5BE-25844-00-00
|
$3.83 | ||
|
Unavailable |
|||
