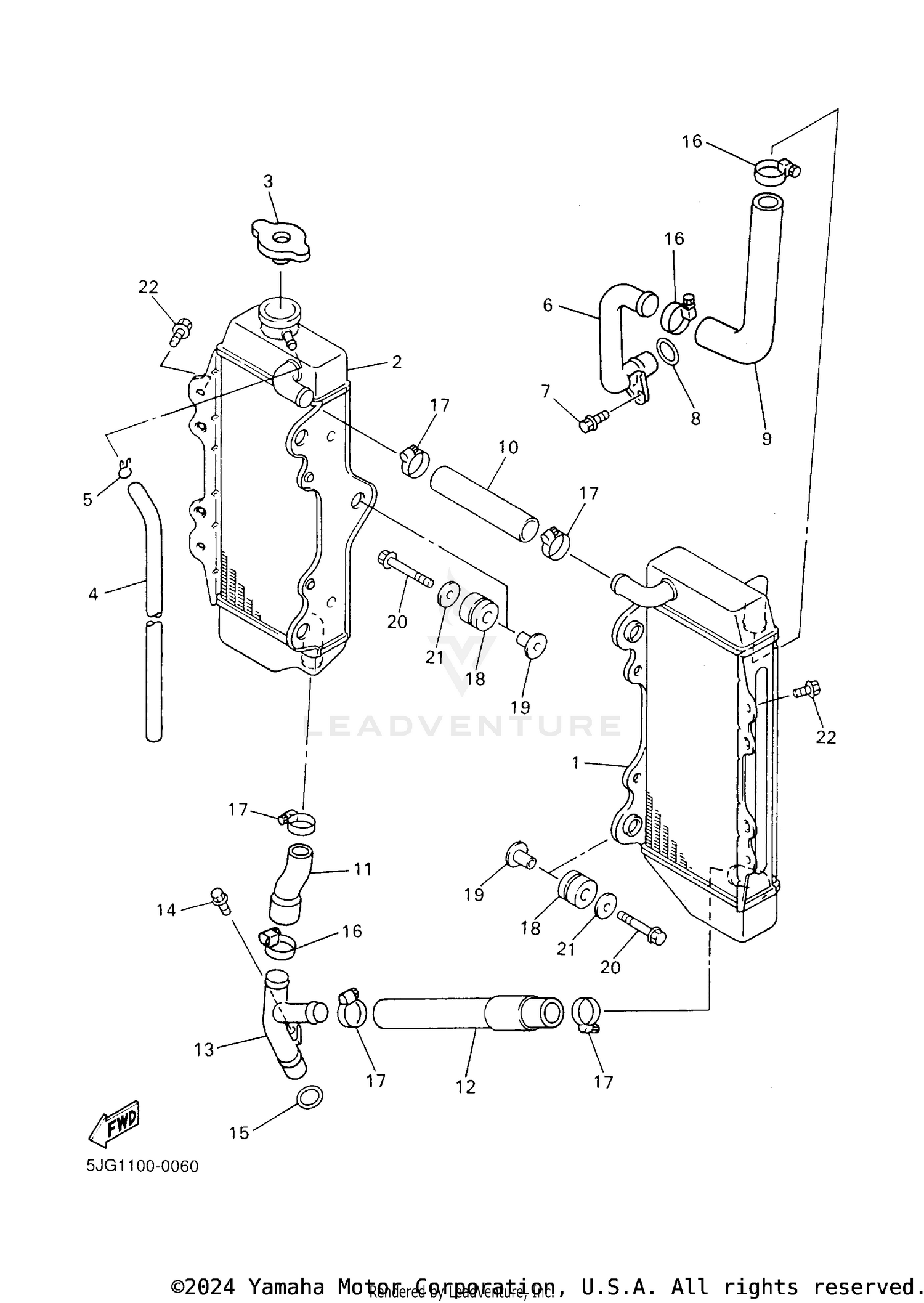

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5JG-1240A-00-00
|
$286.99 | ||
|
Unavailable |
|||
|
#2
RADIATOR ASSY
5JG-12461-00-00
|
$291.53 | ||
|
Unavailable |
|||
|
#3
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
5BE-12481-10-00
|
$55.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-16500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 1
5BE-12576-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 2
5BE-12577-00-00
Superseded by 5BE-12577-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 3
5BE-12578-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 4
5BE-12579-01-00
Superseded by 5BE-12579-02-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
5BE-12482-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-16500-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-0614M-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
