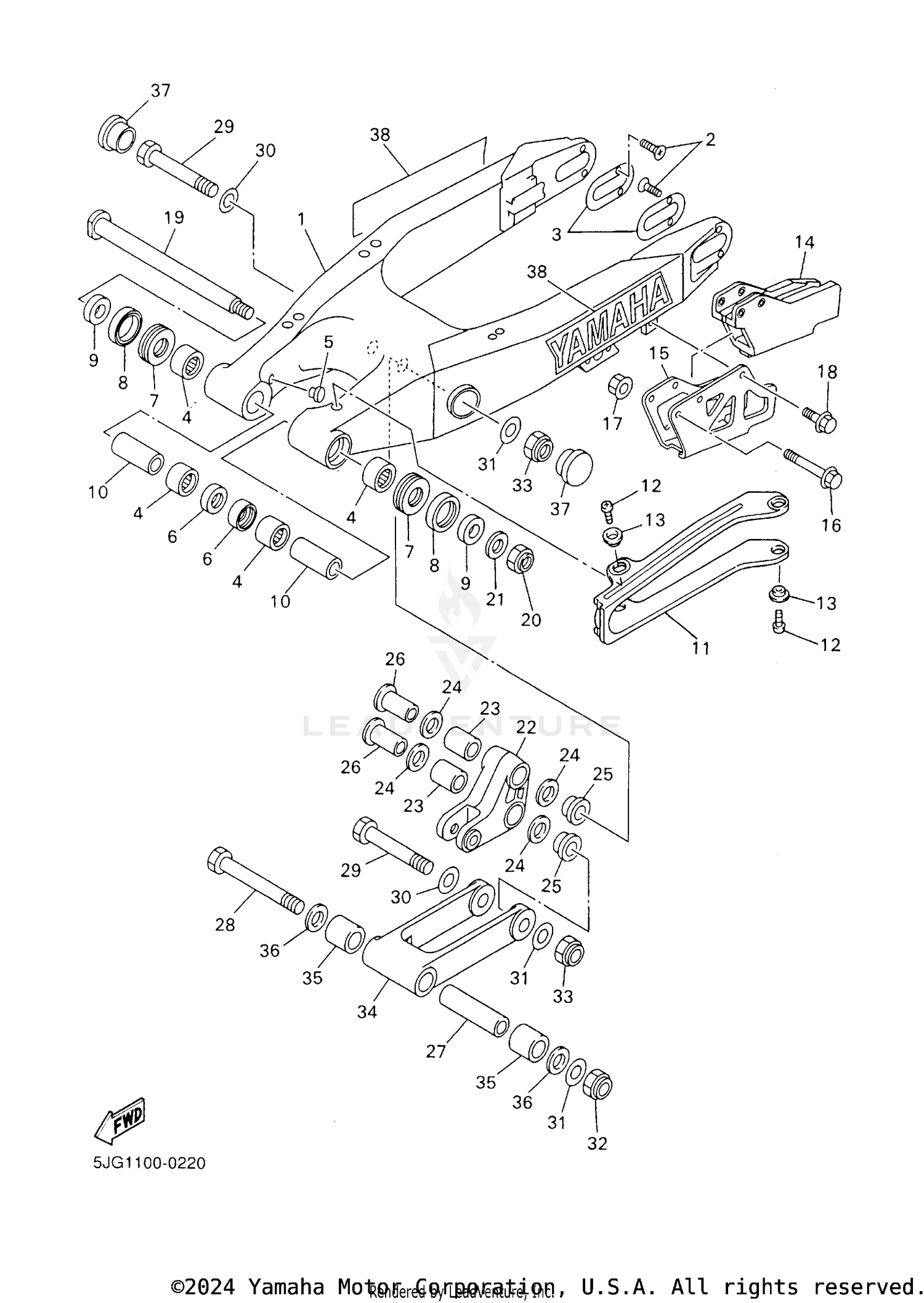

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5CU-22110-00-00
Superseded by 5MV-22110-00-00
|
$801.99 | ||
|
Unavailable |
|||
|
#2
SCREW, FLAT HEAD
90151-04048-00
Superseded by 98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PATCH
5ET-22355-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#4
BEARING
93317-22262-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
90338-16148-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93342-22217-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93109-28043-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-1714R-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-1714S-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, GUARD
5JG-22151-00-00
Superseded by 5MV-22151-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
5JG-22156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUPPORT, CHAIN
4XM-22199-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, THRUST 1
4XM-22128-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
90179-06568-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, PIVOT
5DH-22141-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ARM, RELAY
5ET-2217A-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#23
BEARING
93315-32056-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-164N2-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-164N3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-167Y9-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-147F2-00
|
$38.99 | ||
|
Unavailable |
|||
|
#29
BOLT
90109-142F4-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
90185-14112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, U
95617-14100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROD, CONNECTING 1
5DH-2217F-01-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING
93315-32056-00
|
$27.99 | ||
|
Unavailable |
|||
|
#36
OIL SEAL
93109-20076-00
|
$14.49 | ||
|
Unavailable |
|||
|
#37
COVER
5HD-2135F-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
EMBLEM, YAMAHA
99244-00200-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
