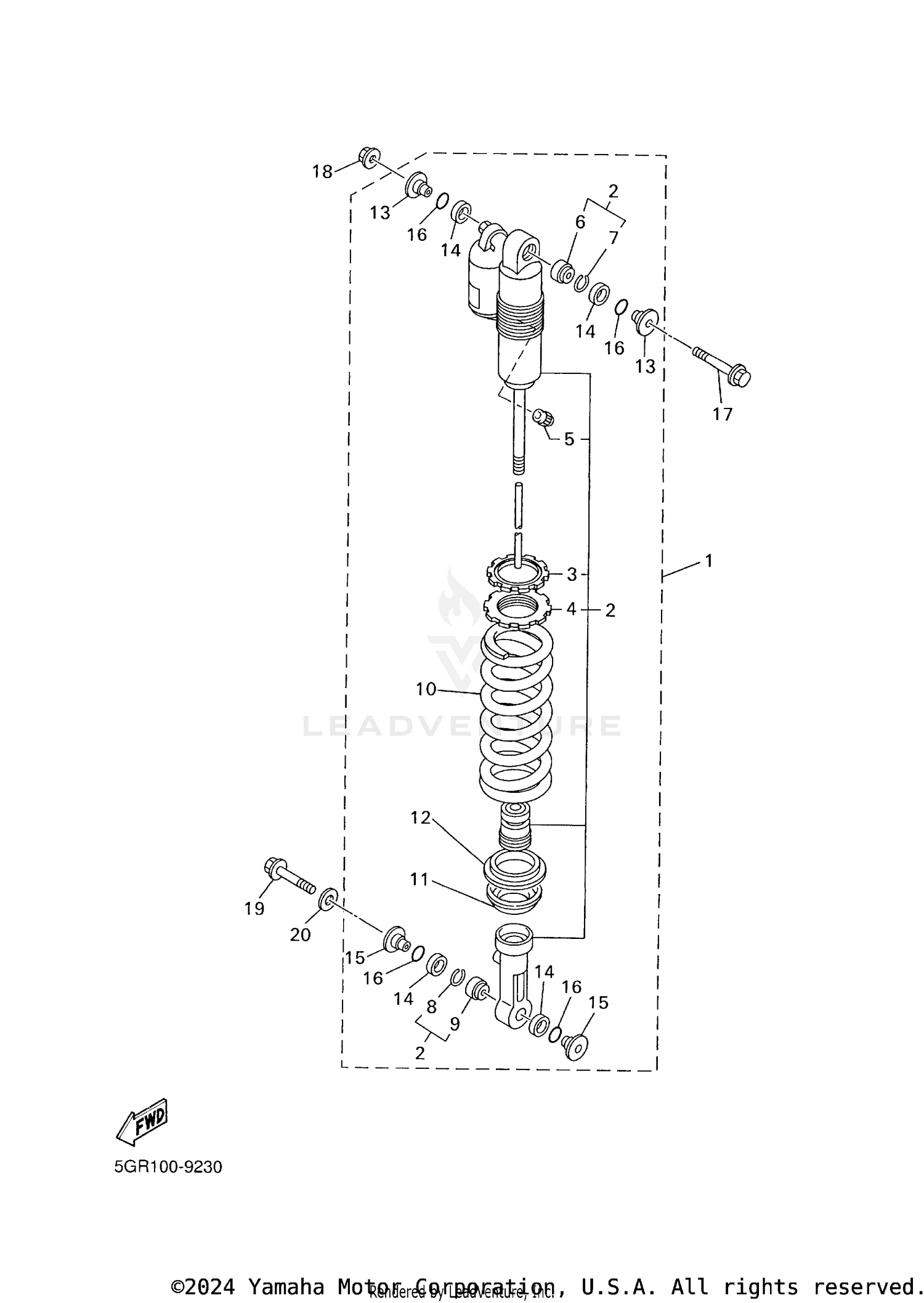

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
5JG-22210-00-00
|
$1,398.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER SUB ASSY
5JG-22201-00-00
|
$1,430.99 | ||
|
Unavailable |
|||
|
#3
GUIDE, SPRING 3
3SP-22234-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
3SP-22213-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
5DH-23183-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
5DH-23183-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
SPRING (K=5.4)
5DH-22212-50-00
Superseded by 5SF-22212-00-00
|
$297.99 | ||
|
Unavailable |
|||
|
#11
GUIDE, SPRING 1
5DH-22214-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, SPRING 2
5DH-22224-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
COLLAR, DISTANCE
5DH-22253-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#14
SEAL, DUST
3JE-22475-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, DISTANCE
4EW-22253-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, RING
4EW-22474-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WASHER BASED
90105-10323-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-105A2-00
Superseded by 90105-10614-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-112U6-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
