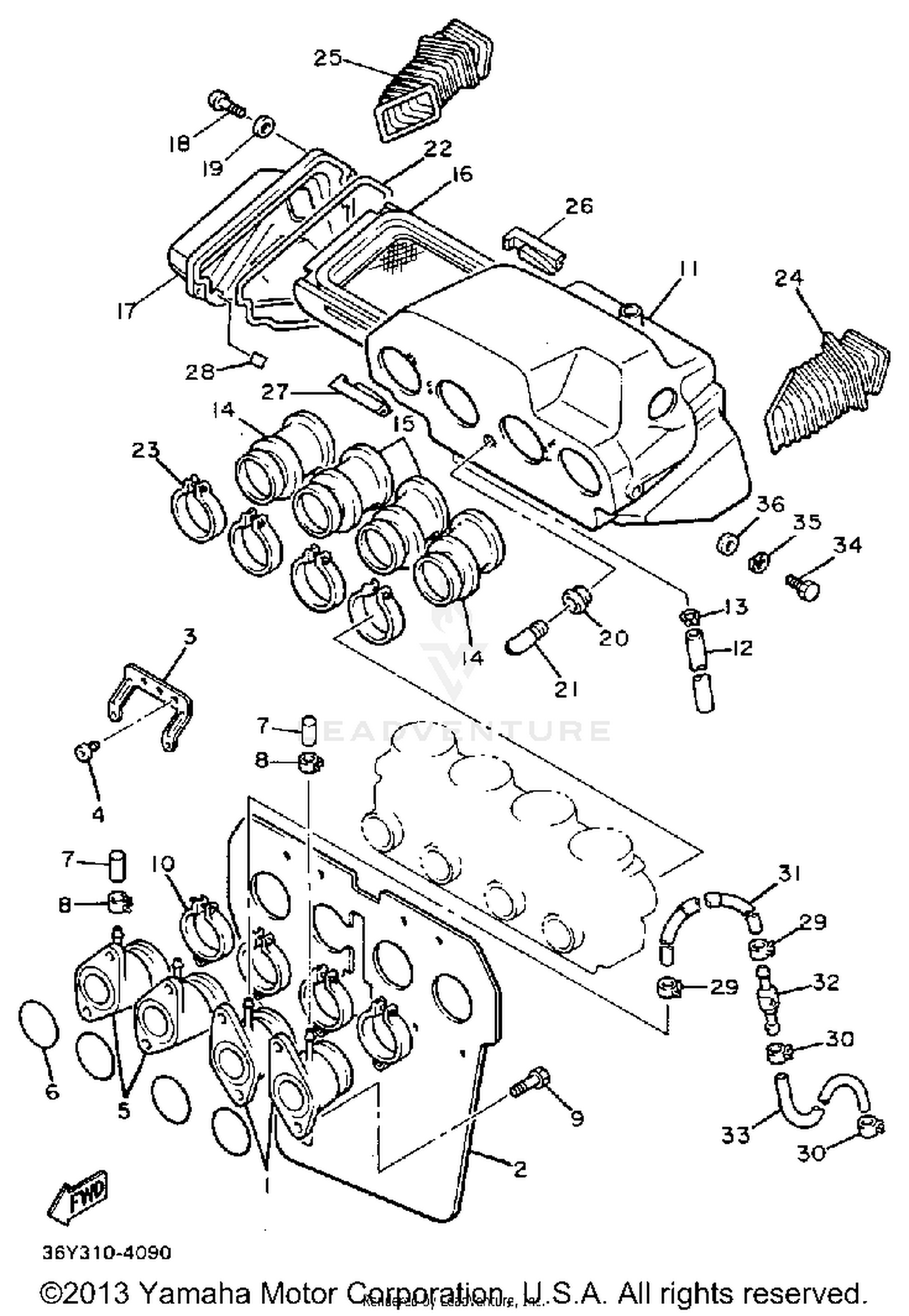

Air Filter Fj1200t Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
36Y-13586-00-00
Superseded by 36Y-13586-10-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEAT PROTECTOR 1
3XW-12682-00-00
|
$347.99 | ||
|
Unavailable |
|||
|
#3
STAY 1
36Y-12637-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-08395-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, CARBURETOR 2
36Y-13596-00-00
Superseded by 36Y-13596-10-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-40659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, HOSE (90460-52210-00)
90460-52264-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLNR CASE ASSEMBLYASSY
36Y-14401-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#12
HOSE (L)
90445-11182-00
Superseded by 90445-112E1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, AIR CLNR 1
36Y-14453-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#15
JOINT, AIR CLEANER 2
36Y-14463-00-00
Superseded by 36Y-14463-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#16
ELEMENT, AIR CLNR
36Y-14451-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, CLEANER CASE 1
36Y-14412-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
31A-14435-00-00
Superseded by 31A-14435-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE
31A-14419-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
5T0-14457-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90460-58015-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SILENCER, INTAKE 1
1TX-14431-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#25
SILENCER, INTAKE 2
1TX-14441-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#26
AIR CLEANER CASE
36Y-W1441-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#27
AIR CLEANER CASE
36Y-W1441-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#28
DAMPER
36Y-14409-00-00
|
$2.65 | ||
|
Unavailable |
|||
|
#29
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE
90445-092A2-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
NOZZLE
41R-14489-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE (L150)
90445-08411-00
Superseded by 90445-082A9-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER,WAVE
92906-06700-00
Superseded by 92907-06700-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
