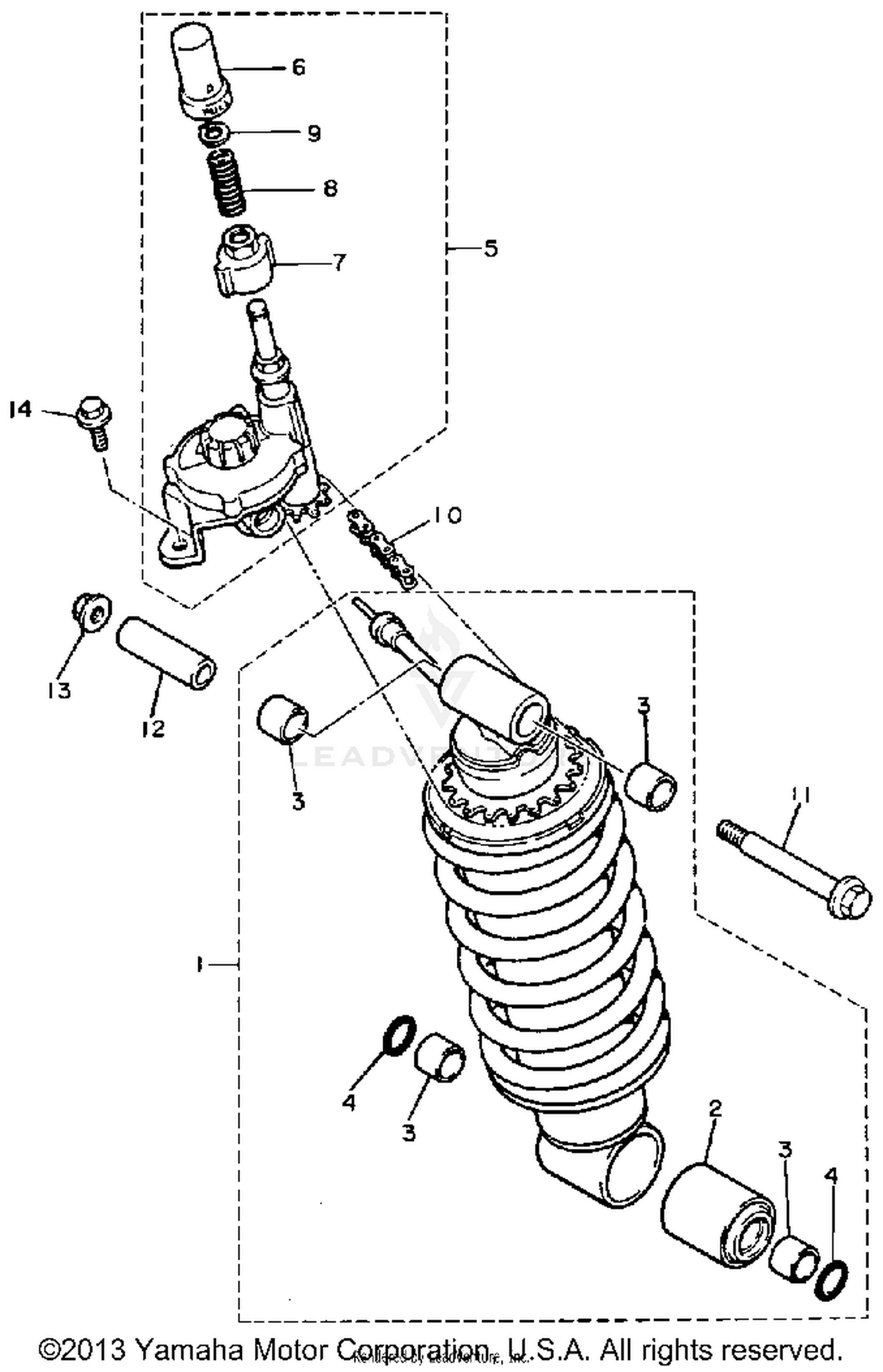

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REARASSEMBLY,
36Y-22210-10-00
|
$862.99 | ||
|
Unavailable |
|||
|
#2
BUSH, SHOCK ABS LWR
36Y-22226-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#3
BUSH, BIMETAL FORMED
90384-18157-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONTROL PANEL ASSEMBLY
36Y-22460-02-00
|
$259.99 | ||
|
Unavailable |
|||
|
#6
COVER, DUST
36Y-22936-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HEAD
36Y-22913-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
SPRING, COMPRESSION
90501-061A3-00
|
$2.17 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99080-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CHAIN
36Y-22269-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-10250-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-124H0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (SMALL HEAD)
95023-08020-00
Superseded by 95024-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
