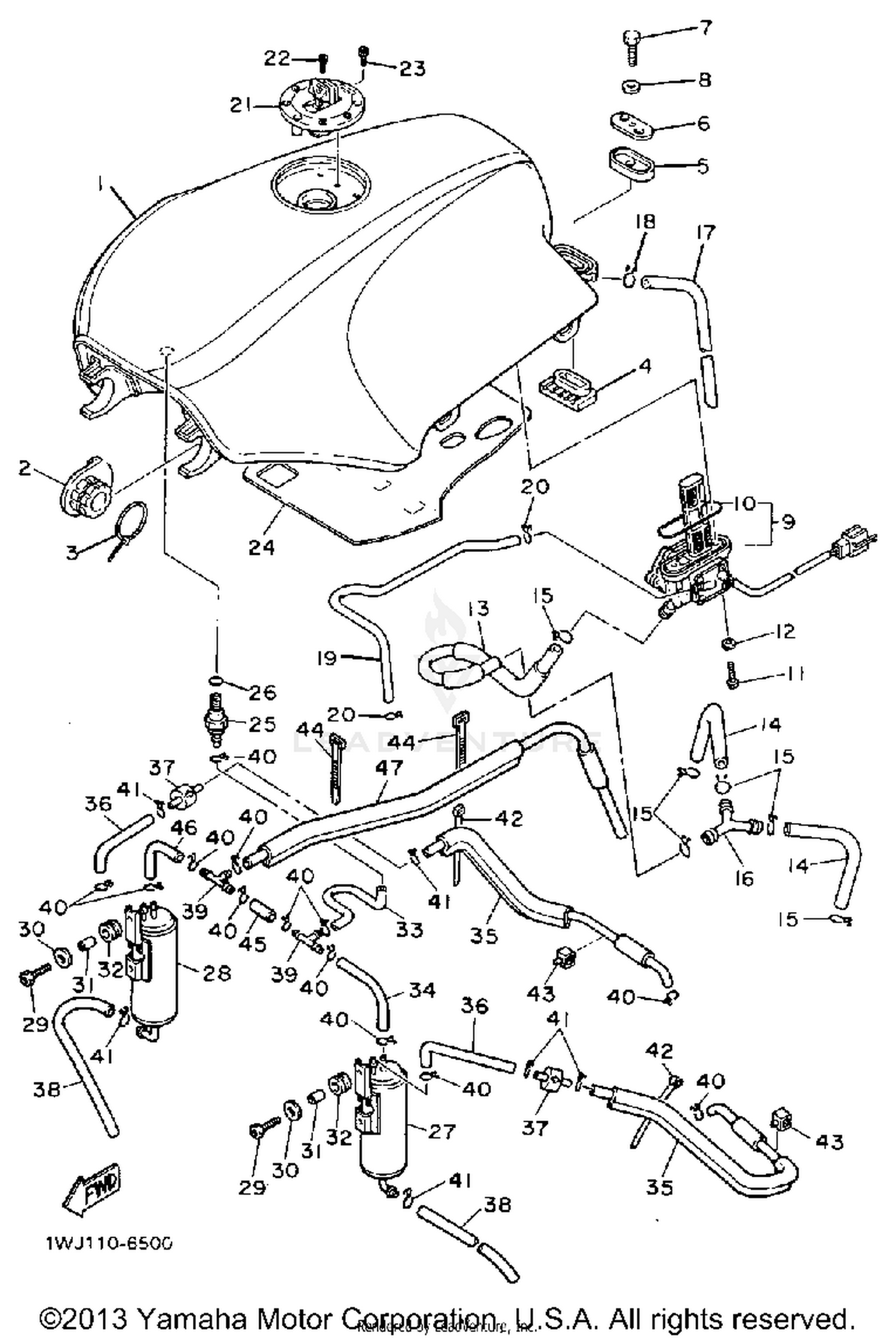

Fuel Tank Fj1200tc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1WJ-24110-00-01
|
$567.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 1
36Y-24181-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
36Y-24182-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL
36Y-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSY
1TX-24500-01-00
Superseded by 1TX-24500-02-00
|
$221.99 | ||
|
Unavailable |
|||
|
#10
GASKET
2G2-24512-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
36Y-24312-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#14
PIPE, FUEL 1
36Y-24311-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, JOINT 1
36Y-24376-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#17
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 3
1TX-24313-00-00
|
$10.64 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY
1LJ-24602-03-00
Superseded by 4HM-24602-01-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, AIR SHROUD 1
3CV-24125-00-00
|
$221.99 | ||
|
Unavailable |
|||
|
#25
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
UNAVAILABLE IN PRICE BOOK
1WJ-24170-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#28
CANISTER ASSEMBLY
1WJ-24170-50-00
|
$186.99 | ||
|
Unavailable |
|||
|
#29
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-060G7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-12529-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, FUEL 1
47M-24311-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
HOSE
90445-115A5-00
|
$1.40 | ||
|
Unavailable |
|||
|
#35
PIPE 2
1WJ-24312-00-00
|
$11.66 | ||
|
Unavailable |
|||
|
#36
UNAVAILABLE IN PRICE BOOK
1W-J2431-30-0
|
|||
|
Unavailable |
|||
|
#37
VALVE, OUTER VENT CONTROL
1WJ-14895-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#38
UNAVAILABLE IN PRICE BOOK
90-44511-2A-50
|
|||
|
Unavailable |
|||
|
#39
PIPE, JOINT 1
3H3-24376-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#41
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE (L120)
90445-11697-00
Superseded by 90445-113E8-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE
90445-115E1-00
|
$1.13 | ||
|
Unavailable |
|||
|
#47
PIPE 1
1WJ-14871-00-00
|
$76.99 | ||
|
Unavailable |
|||
