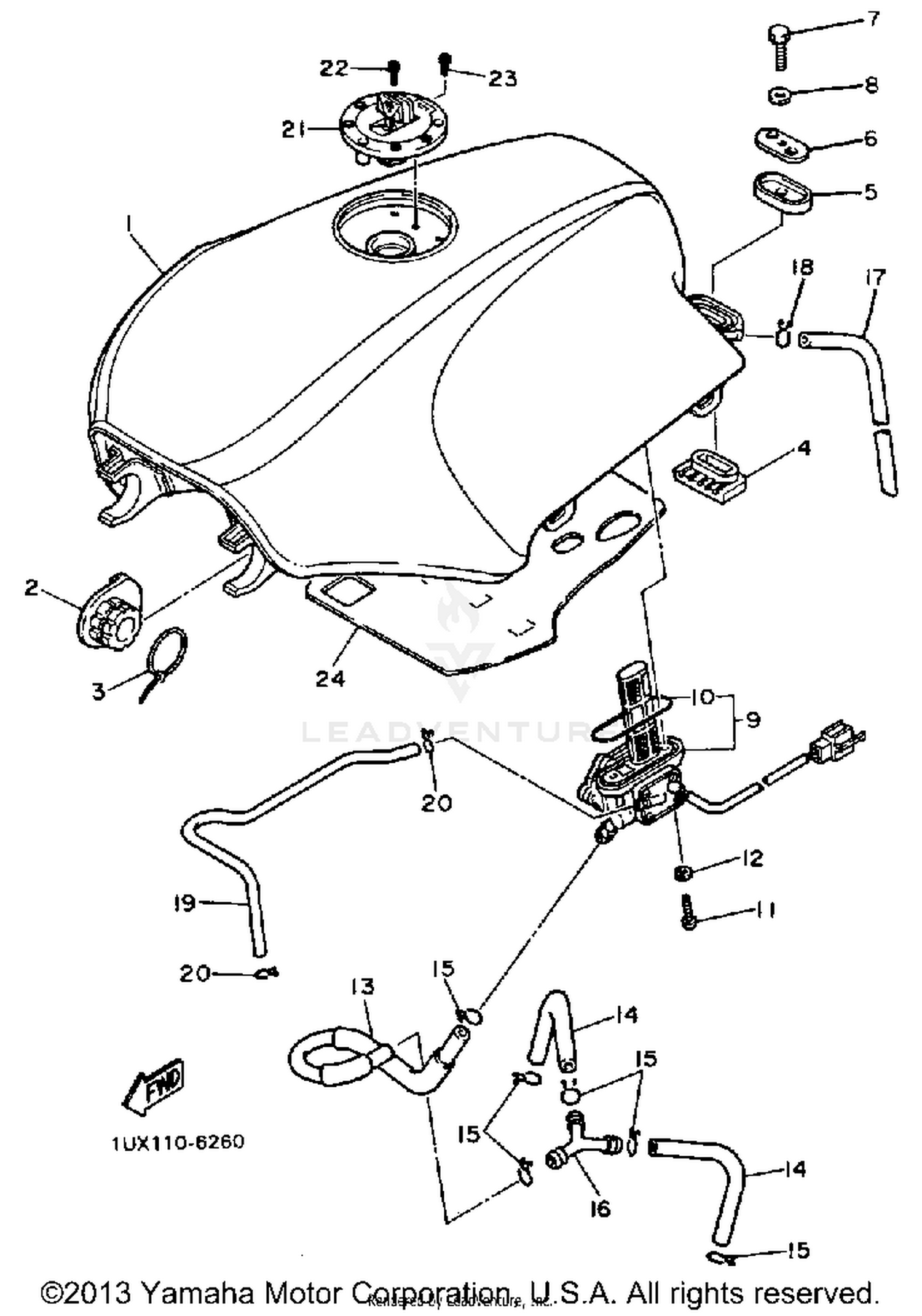

Fuel Tank Fj1200t Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1TX-24110-00-01
|
$603.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 1
36Y-24181-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
CLAMP 1
5Y9-12491-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
36Y-24182-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL
36Y-24186-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
BOLT,HEXAGON
97026-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSY
1TX-24500-01-00
Superseded by 1TX-24500-02-00
|
$221.99 | ||
|
Unavailable |
|||
|
#10
GASKET
2G2-24512-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
36Y-24312-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#14
PIPE, FUEL 1
36Y-24311-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, JOINT 1
36Y-24376-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#17
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 3
1TX-24313-00-00
|
$10.64 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY
1JK-24602-13-00
Superseded by 4FM-24602-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, AIR SHROUD 1
3CV-24125-00-00
|
$221.99 | ||
|
Unavailable |
|||
