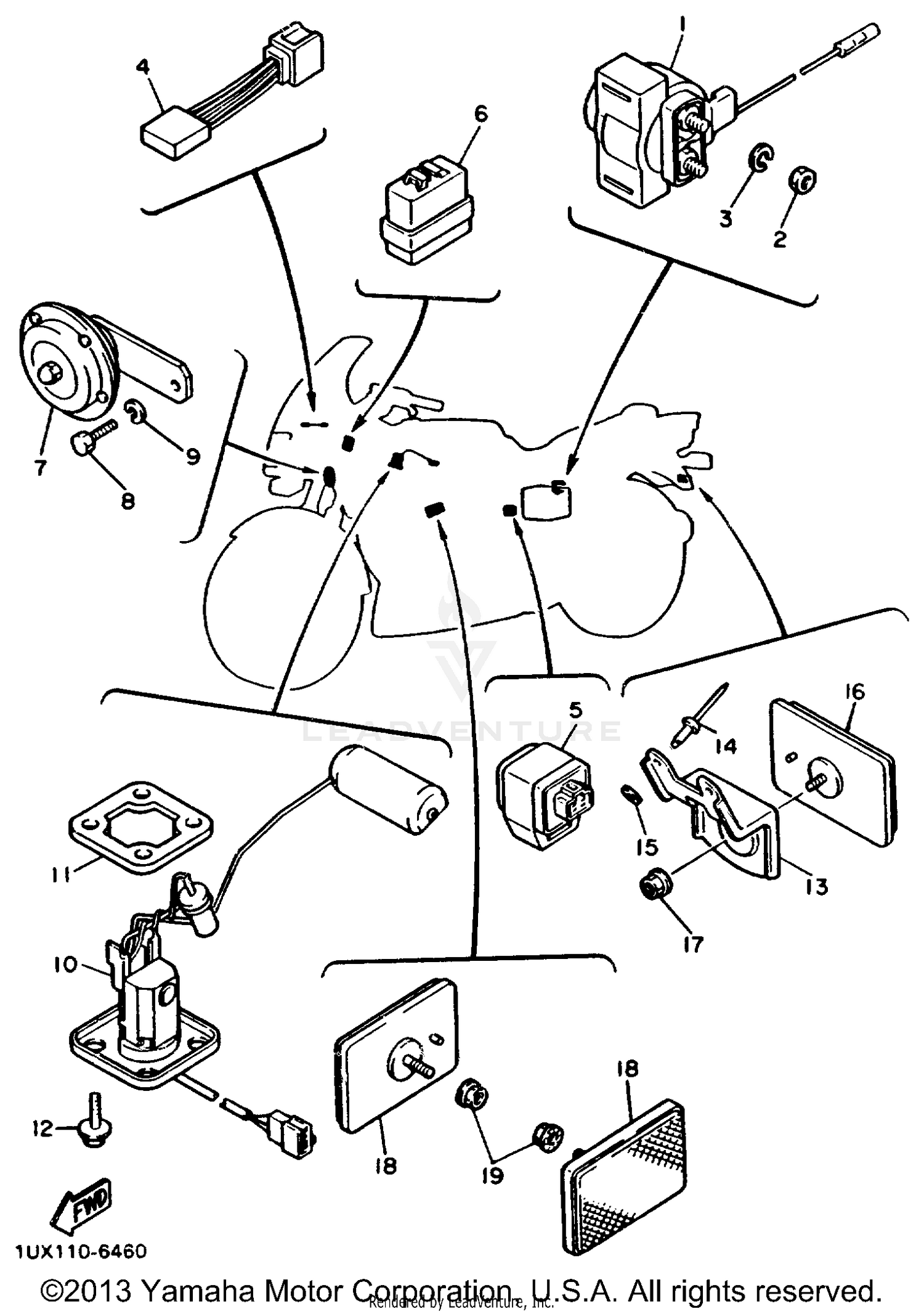

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER RELAY ASSY
36Y-81940-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIODE ASSY
4U8-81980-M0-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#6
FLASHER RELAY ASSY
41R-83350-71-00
Superseded by 41R-83350-72-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HORN
4V8-83371-20-00
|
$105.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENDER UNIT ASSEMBLY, FUEL METE
36Y-85752-03-00
|
$114.99 | ||
|
Unavailable |
|||
|
#11
GASKET, SENDER UNIT
5G3-85753-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-05071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, REFLECTOR 1
47M-85132-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#14
RIVET, BLIND
90267-32070-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-03200-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT REFLECTOR ASSEMBLY
4X7-85110-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
