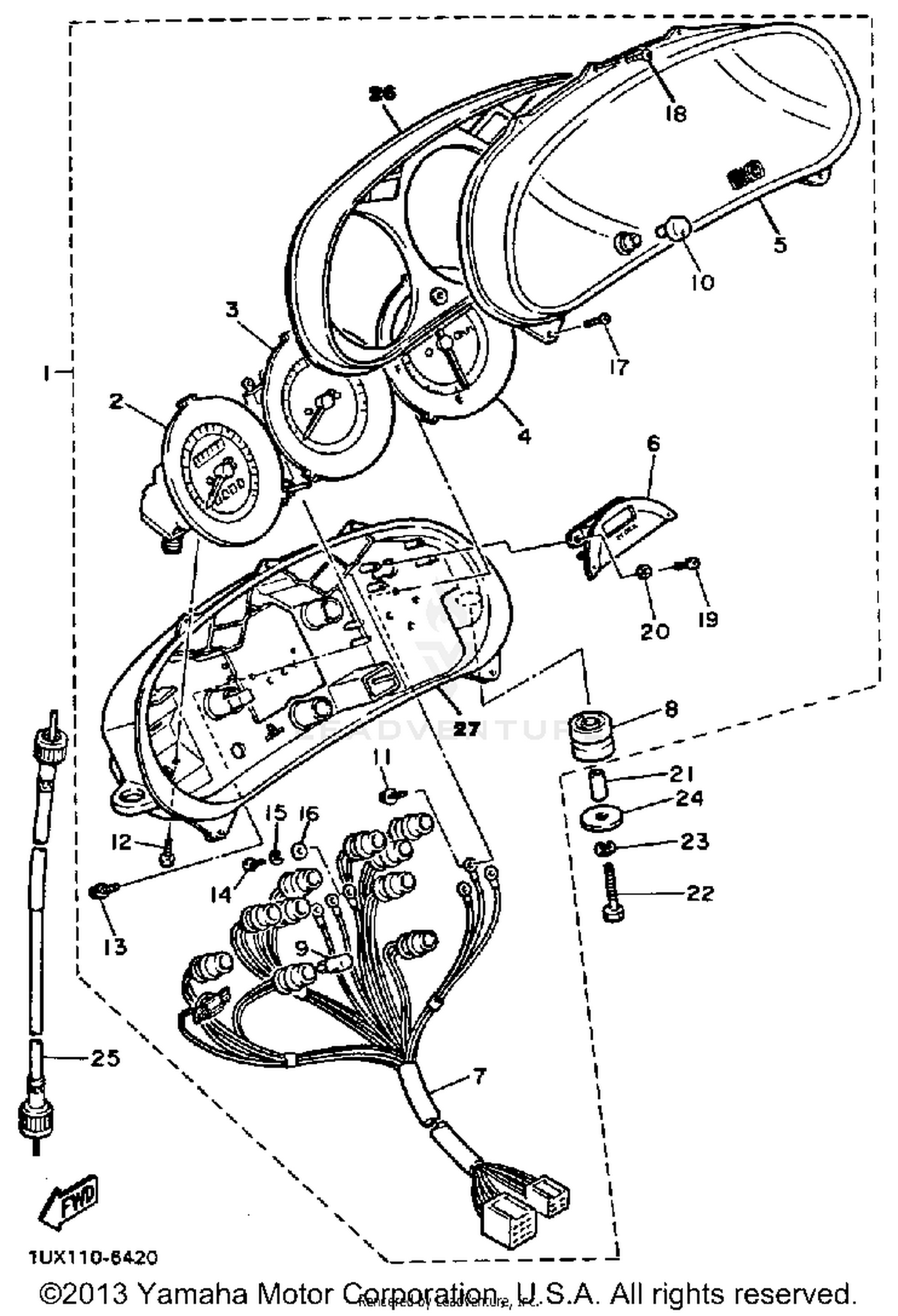

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
1WJ-83500-A0-00
|
$608.99 | ||
|
Unavailable |
|||
|
#2
SPEEDOMETER ASY
1WJ-83570-A0-00
Superseded by 1TX-83570-G0-00
|
$477.99 | ||
|
Unavailable |
|||
|
#3
TACHOMETER ASSEMBLY
1TX-83540-00-00
|
$497.99 | ||
|
Unavailable |
|||
|
#4
FUEL METER ASSEMBLY
1TX-85750-00-00
|
$218.99 | ||
|
Unavailable |
|||
|
#5
LENS, SPEEDOMETER
1TX-83511-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIGITAL CLOCK ASY
1TX-83740-00-00
Superseded by 1TX-83740-01-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET CORD ASSEMBLY
1TX-83509-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#8
DAMPER
36Y-83523-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
KNOB, TRIP METER
29L-83578-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-03102-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
90167-04021-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-04114-00
|
$1.50 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-03010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
90164-04005-00
|
$0.85 | ||
|
Unavailable |
|||
|
#18
SCREW, PANHEAD TAP
97780-30120-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING
4H7-83616-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPECIAL
1TX-83524-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-060J4-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, METER PANEL
1TX-83612-00-00
Superseded by 4KM-83612-20-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CASE, INNER
1TX-8353H-00-00
Superseded by 1XJ-8353H-00-00
|
$194.99 | ||
|
Unavailable |
|||
