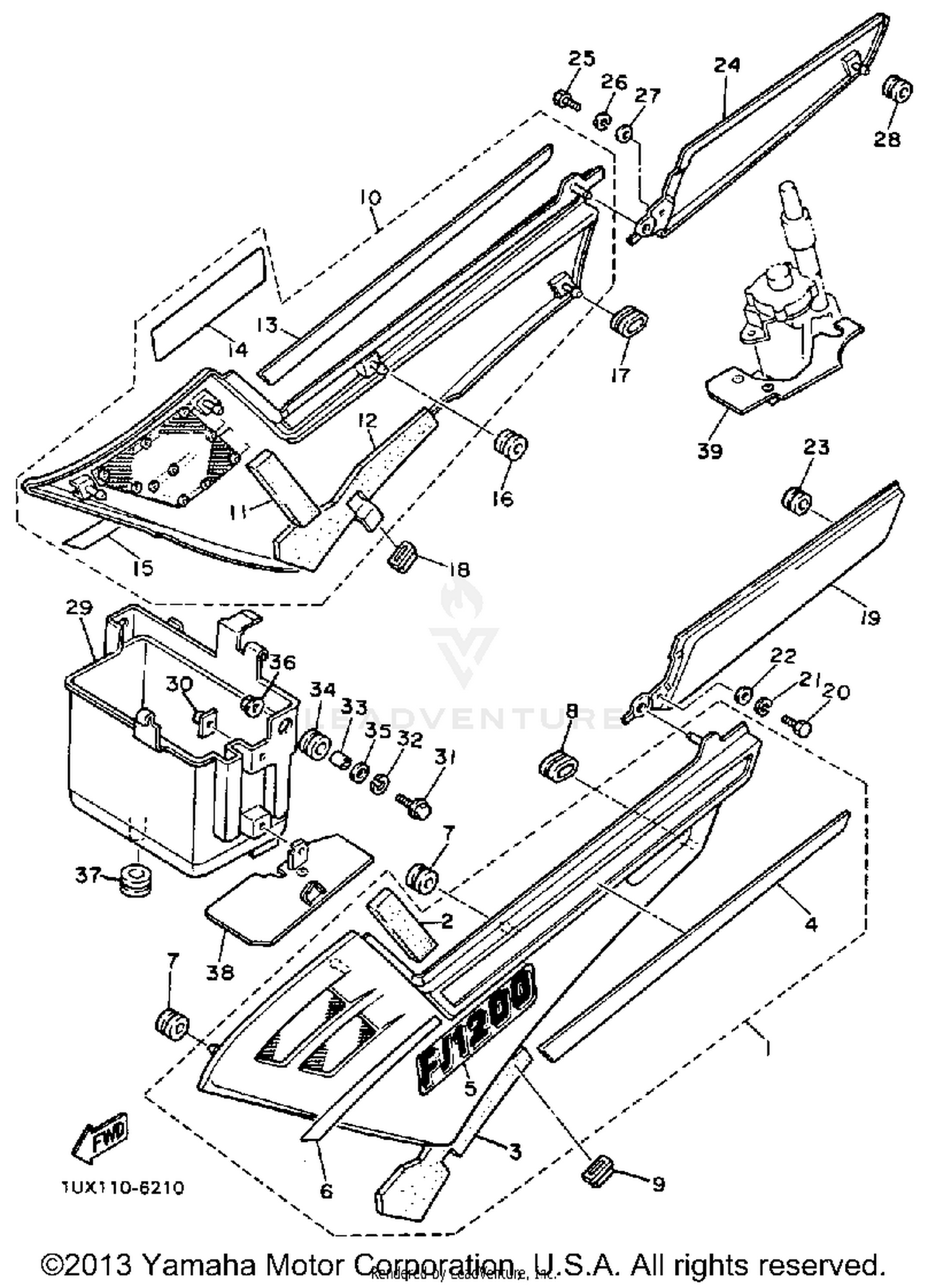

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
1WJ-Y2171-01-7X
|
|||
|
Unavailable |
|||
|
#2
SEAL 2
36Y-21735-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#3
DAMPER
36Y-21746-01-00
|
$12.52 | ||
|
Unavailable |
|||
|
#4
MOLD, SIDE COVER 1
1WJ-2171L-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC
1WJ-2173E-10-00
|
$18.22 | ||
|
Unavailable |
|||
|
#6
GRAPHIC 2
36Y-2173F-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#7
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-01390-00
|
$9.99 | ||
|
Unavailable |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
1WJ-Y2172-01-7X
|
|||
|
Unavailable |
|||
|
#11
SEAL 2
36Y-21735-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#12
DAMPER
36Y-21747-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#13
MOLD, SIDE COVER 2
1WJ-2171M-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#14
GRAPHIC
1WJ-2173E-10-00
|
$18.22 | ||
|
Unavailable |
|||
|
#15
GRAPHIC 3
36Y-2174G-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#16
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-01390-00
|
$9.99 | ||
|
Unavailable |
|||
|
#19
COVER, SIDE 3
36Y-21731-00-AJ
|
$50.99 | ||
|
Unavailable |
|||
|
#20
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-062G3-00
Superseded by 90201-06049-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, SIDE 4
36Y-21741-00-AJ
|
$50.99 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-062G3-00
Superseded by 90201-06049-00
|
$3.35 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-13163-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BOX
36Y-21245-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE
31A-14477-00-00
Superseded by 31A-14477-10-00
|
$1.55 | ||
|
Unavailable |
|||
|
#31
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-23192-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
UNAVAILABLE IN PRICE BOOK
36Y-2172G-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#39
PANEL 1
36Y-2172H-00-00
|
$14.49 | ||
|
Unavailable |
|||
