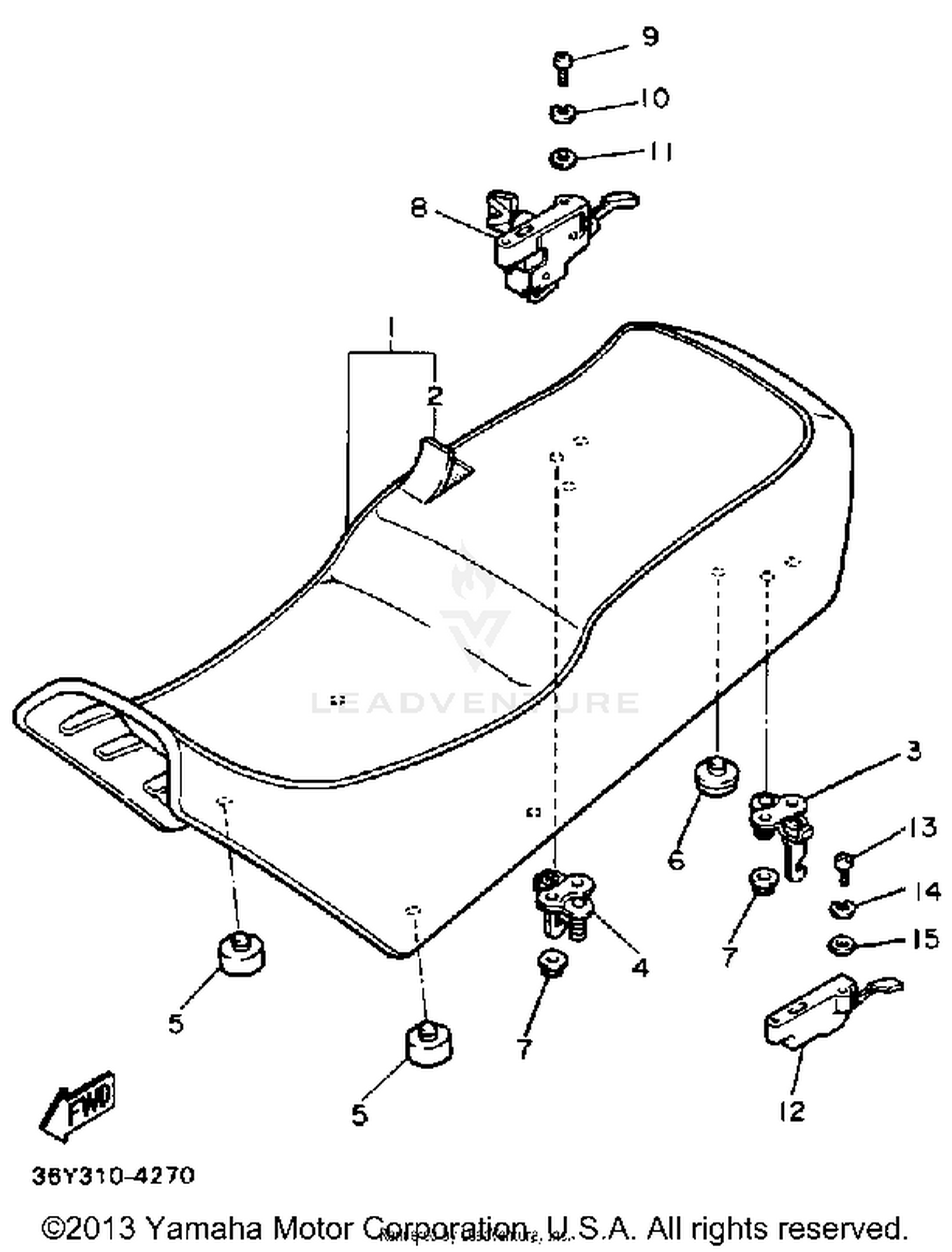

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASY
3CV-24730-00-00
Superseded by 4CC-24730-00-00
|
$457.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
3CV-24731-40-00
|
$228.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
36Y-24728-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
36Y-24738-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
PAD, SEAT
1T4-24741-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT LOCK ASSEMBLY.
36Y-24705-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT LEVER ASSEMBLY
36Y-24760-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
