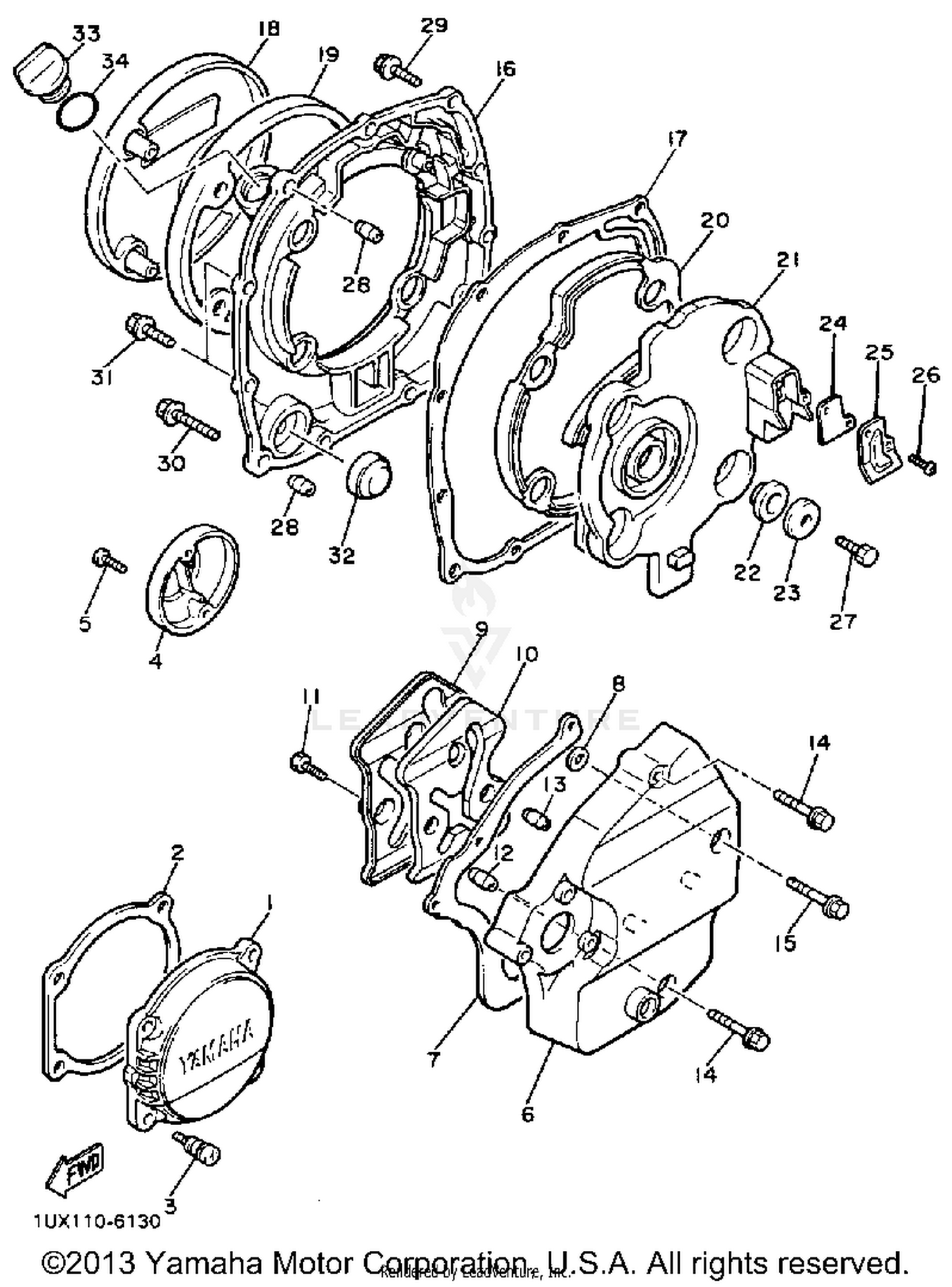

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL PUMP
36Y-15416-00-00
Superseded by 5EA-15416-20-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, RUBBER
33M-15449-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT 1
33M-15481-10-00
Superseded by 33M-15481-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
COVER, OIL PUMP 2
36Y-15426-00-00
Superseded by 5EA-15426-20-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BIND
90154-05026-00
Superseded by 98907-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CRANKCASE L
1TX-15411-01-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CRCS COVERCRANKCASE COV
4CR-15451-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
1UF-15467-00-00
Superseded by 3FA-15467-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CAP 2
1TX-15427-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, ENG MOUNT 1ENGINE MOUNT
1TX-15316-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#11
SCREW, HEXAGON
90153-06055-00
|
$1.80 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95026-06040-00
Superseded by 95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95026-06050-00
Superseded by 95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
CRANKCASE COVER ASSY
3XW-W1543-00-00
Superseded by 3XW-W1543-03-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CRANKCASE CO
4CR-15461-00-00
Superseded by 5WM-15461-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CAP
36Y-15417-01-00
Superseded by 36Y-15417-10-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RUBBER
36Y-15449-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
1TX-15367-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BREATHER 1
1TX-15346-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
4H7-15486-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, BREATHER
1TX-15374-00-00
Superseded by 4CR-15374-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER
1TX-15333-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95026-06035-00
Superseded by 95027-06035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#32
GAUGE, LEVEL
2H7-15361-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG, OIL
2H9-15363-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
