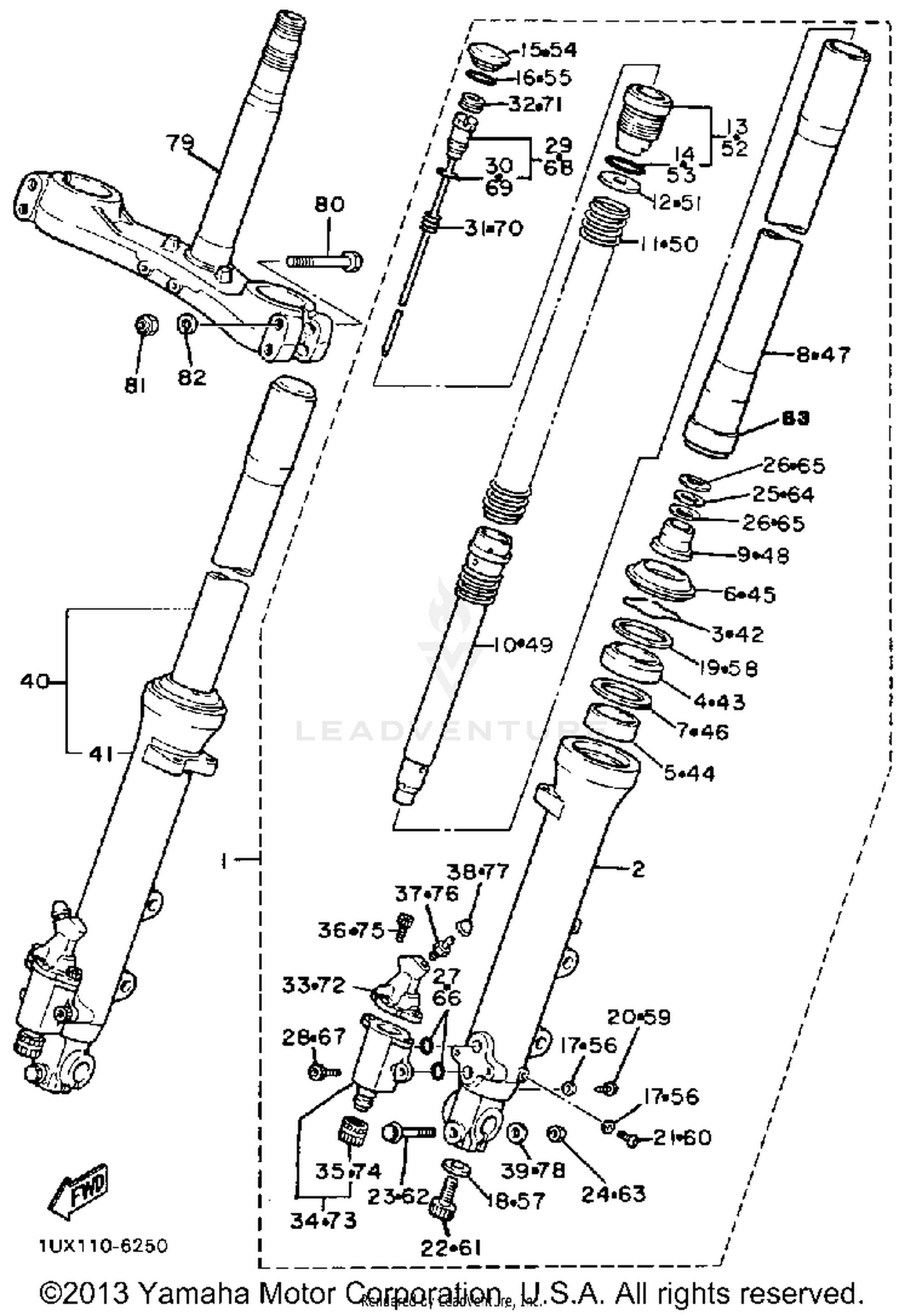

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L (LH) (36Y
36Y-23102-11-00
|
$612.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
36Y-23126-00-00
|
$242.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
3LC-23145-00-00
Superseded by 3SP-23145-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3JD-23125-L0-00
Superseded by 4FM-23125-40-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
3LC-23144-00-00
Superseded by 3XV-23144-50-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE 1
3CV-23110-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#9
SPINDLE, TAPER
36Y-23173-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRKFRONT FORK
36Y-23170-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#11
SPRING, FR FRK HARD
36Y-23141-10-00
|
$71.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING UPR
36Y-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
CAP
36Y-2319U-00-00
|
$67.61 | ||
|
Unavailable |
|||
|
#14
O-RING
36Y-23147-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
CAP
36Y-2319W-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
36Y-23114-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
4V4-23158-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, UPPER CVR 1UPPER COVE
36Y-23137-00-00
|
$6.06 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX SCKT HEAD
1TX-23181-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, AXLE HOLDER
36Y-23128-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#24
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
36Y-2319L-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#26
SPRING, VALVE
36Y-2319M-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
O-RING
22N-23147-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD
36Y-2330G-00-00
|
$18.02 | ||
|
Unavailable |
|||
|
#30
O-RING
36Y-23147-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
SPRING, SUB
36Y-23152-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#32
NUT
36Y-23357-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#33
BRAKE PLNGR ASSEMBLY 1ASSEMBL
36Y-2319F-00-00
|
$97.07 | ||
|
Unavailable |
|||
|
#34
DAMPER PISTON ASSEMBLYASSY
36Y-2319E-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#35
CAP, AIR VALVE
36Y-23184-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#36
BOLT
22N-23356-00-00
Superseded by 91314-05012-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
BREATHER, AIR (26H-2319V-00-0
1TX-2319V-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#38
CAP
26H-2319W-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
FRONT FORK ASSEMBLY R (RH) (36Y
36Y-23103-11-00
|
$612.99 | ||
|
Unavailable |
|||
|
#41
TUBE, OUTER 2
36Y-23136-00-00
|
$231.99 | ||
|
Unavailable |
|||
|
#42
RING, SNAP
26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
OIL SEAL
3LC-23145-00-00
Superseded by 3SP-23145-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#44
METAL, SLIDE 1
3JD-23125-L0-00
Superseded by 4FM-23125-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#45
SEAL, DUST
3LC-23144-00-00
Superseded by 3XV-23144-50-00
|
$28.99 | ||
|
Unavailable |
|||
|
#46
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Unavailable |
|||
|
#47
INNER TUBE 1
3CV-23110-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#48
SPINDLE, TAPER
36Y-23173-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#49
CYLINDER, FRTFRKFRONT FORK
36Y-23170-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#50
SPRING, FR FRK HARD
36Y-23141-10-00
|
$71.99 | ||
|
Unavailable |
|||
|
#51
WASHER, SPRING UPR
36Y-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
CAP
36Y-2319U-00-00
|
$67.61 | ||
|
Unavailable |
|||
|
#53
O-RING
36Y-23147-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#54
CAP
36Y-2319W-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#55
GASKET
36Y-23114-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#56
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#57
GASKET
4V4-23158-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#58
GASKET, UPPER CVR 1UPPER COVE
36Y-23137-00-00
|
$6.06 | ||
|
Unavailable |
|||
|
#59
BOLT, HEX SCKT HEAD
1TX-23181-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#60
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#61
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$13.99 | ||
|
Unavailable |
|||
|
#62
BOLT, AXLE HOLDER
36Y-23128-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#63
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#64
WASHER
36Y-2319L-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#
SPRING, VALVE
36Y-2319M-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#65
SPRING, VALVE
36Y-2319M-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#66
O-RING
22N-23147-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#67
BOLT, HEXAGON SOCKET HEAD
22N-23346-00-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#68
ROD
36Y-2330G-00-00
|
$18.02 | ||
|
Unavailable |
|||
|
#69
O-RING
36Y-23147-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#70
SPRING, SUB
36Y-23152-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#71
NUT
36Y-23357-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#72
BRAKE PLUNGER ASSEMBLY2ASSY 2
36Y-2319G-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#73
DAMPER PISTON ASSEMBLYASSY
36Y-2319E-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#74
CAP, AIR VALVE
36Y-23184-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#75
BOLT
22N-23356-00-00
Superseded by 91314-05012-00
|
$0.60 | ||
|
Unavailable |
|||
|
#76
BREATHER, AIR (26H-2319V-00-0
1TX-2319V-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#77
CAP
26H-2319W-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#78
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#79
UNDER BRACKET
36Y-23340-00-00
|
$777.99 | ||
|
Unavailable |
|||
|
#80
BOLT
36Y-23346-00-00
Superseded by 97021-08065-00
|
$2.65 | ||
|
Unavailable |
|||
|
#81
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#82
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#83
PISTON, FRONT FORK
36Y-23171-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
