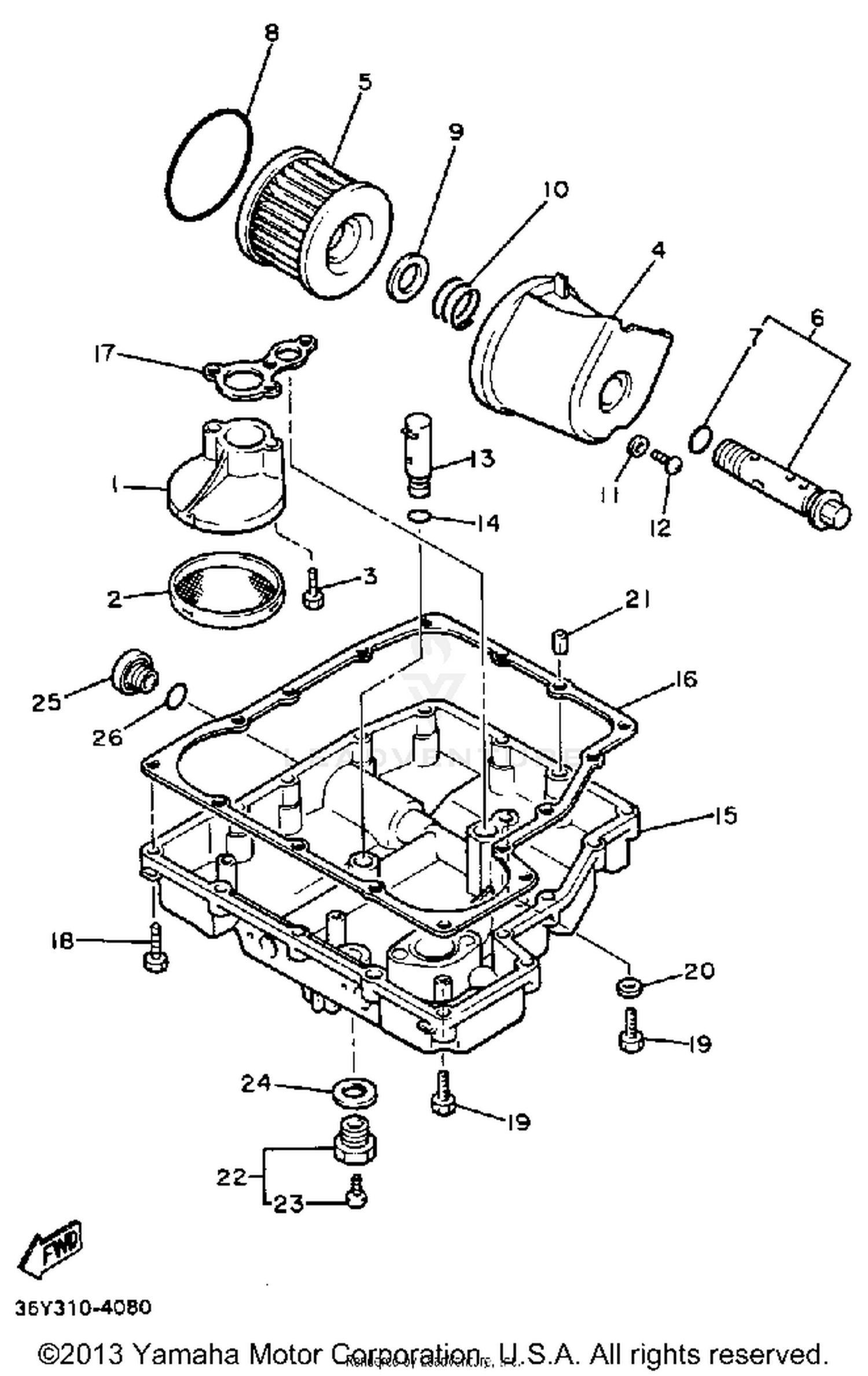

Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, STRAINER
36Y-13412-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STRAINER, OIL
4H7-13411-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, OIL ELEMENT
36Y-13447-01-00
Superseded by 4KG-13447-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ELEMENT, OIL CLNR
36Y-13441-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BY-PASS VALVE ASSEMBLY
36Y-13340-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-16629-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-87723-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-21608-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-20422-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-05126-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
90149-05110-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELIEF VALVE ASSY
25G-13490-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, STRAINER
36Y-13417-02-00
Superseded by 36Y-13417-03-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, STRNR COVERSTRAINER COV
4CR-13414-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, OIL STRAINER
36Y-13415-00-00
Superseded by 4CR-13415-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, BIND
98901-06008-00
Superseded by 98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#26
O-RING
93210-16629-00
|
$6.49 | ||
|
Unavailable |
|||
