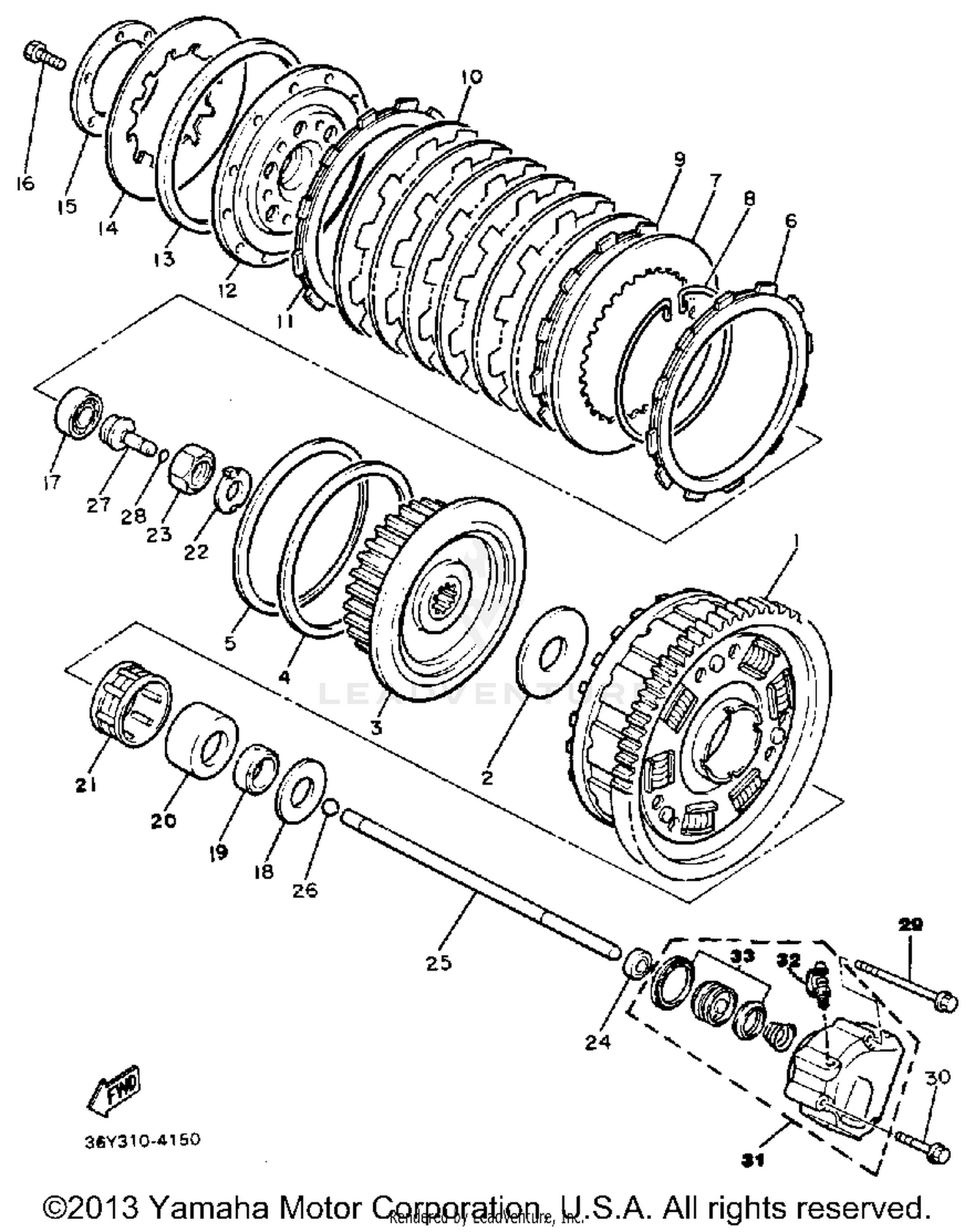

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR
1TX-16150-00-00
Superseded by 5EA-16150-00-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
36Y-16154-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#3
BOSS, CLUTCH
36Y-16371-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SEAT
36Y-16384-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING.,CUSHION
36Y-16383-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FRICTION 2
36Y-16331-00-00
Superseded by 4XV-16331-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
RING SET
2H7-16385-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION
341-16321-13-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
PLATE, FRICTION 2
36Y-16331-00-00
Superseded by 4XV-16331-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
PLATE, PRESSURE 1
36Y-16351-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, SPRING
36Y-16335-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH 2
1TX-16334-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, PRESSURE 2
1TX-16352-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-00315-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-286H8-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-284K1-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER 1
36Y-16181-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, CYLINDER.#10
93310-350M3-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK
90215-25218-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-20323-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-08061-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD, PUSH 2
36Y-16357-00-00
Superseded by 3CV-16357-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD, PUSH 1
36Y-16356-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WASHER BASED
90105-06306-00
|
$4.40 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE
95026-06040-00
Superseded by 95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
PUSH LEVER COMP.
36Y-16381-10-00
Superseded by 36Y-16381-11-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PUSH LEVER SEAL KIT
26H-W0098-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
