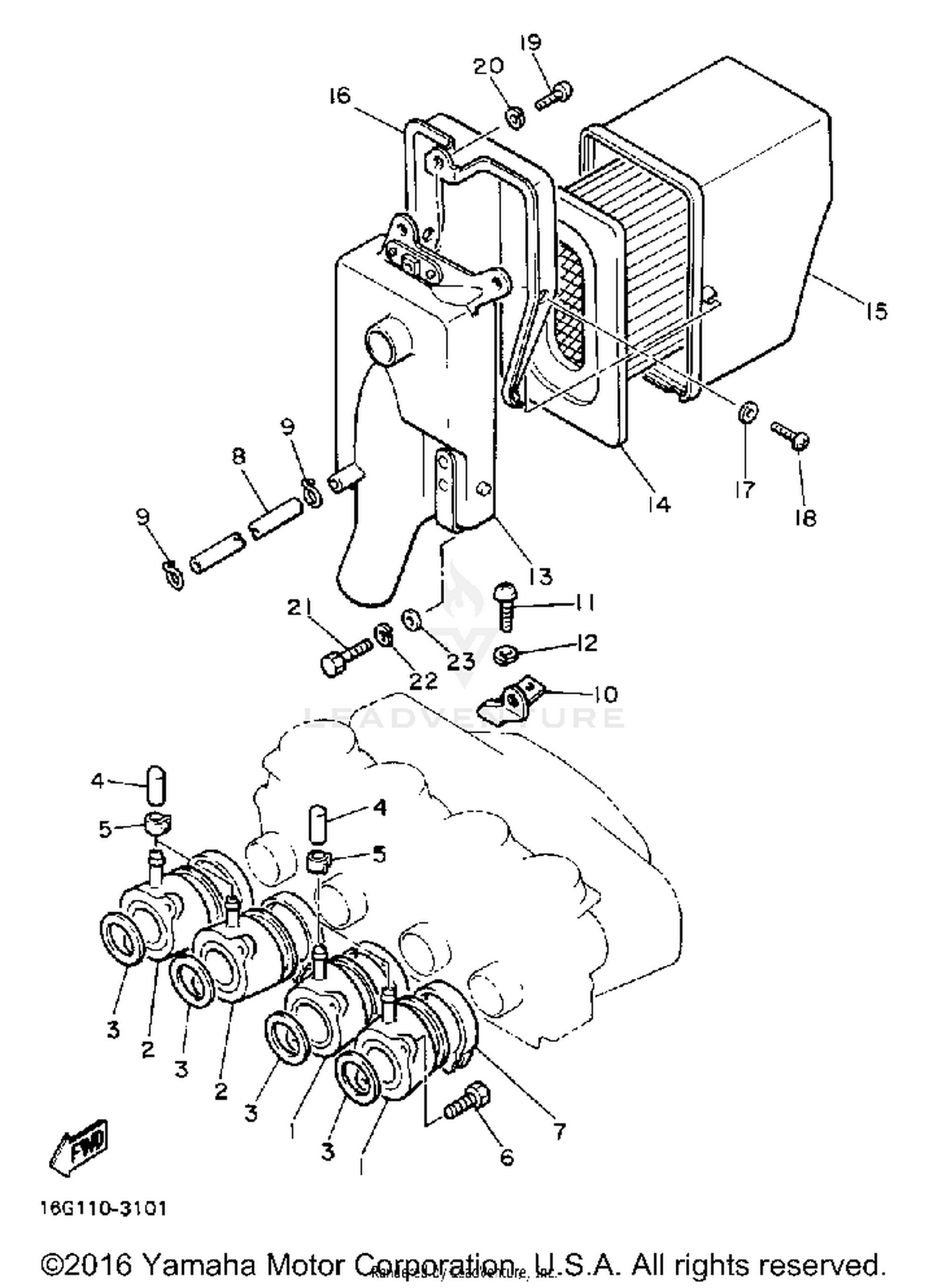

Air Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
16G-13586-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#2
JOINT, CARBURETOR 2
16G-13596-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-36549-00
Superseded by 93210-36769-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, HOSE
90460-49198-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
HOSE
90445-08633-00
|
$2.97 | ||
|
Unavailable |
|||
|
#9
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, REGULATOR
16G-13997-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR CLNR CASE ASSEMBLYASSY
16G-14401-00-00
|
$30.48 | ||
|
Unavailable |
|||
|
#14
ELEMENT, AIR CLNR
16G-14451-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#15
CASE, AIR CLEANER 2
16G-14421-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#16
STAY 2
16G-14499-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-05029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING
97780-50110-00
Superseded by 97780-50610-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
UNAVAILABLE IN PRICE BOOK (9250
92503-06016-00
|
|||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
