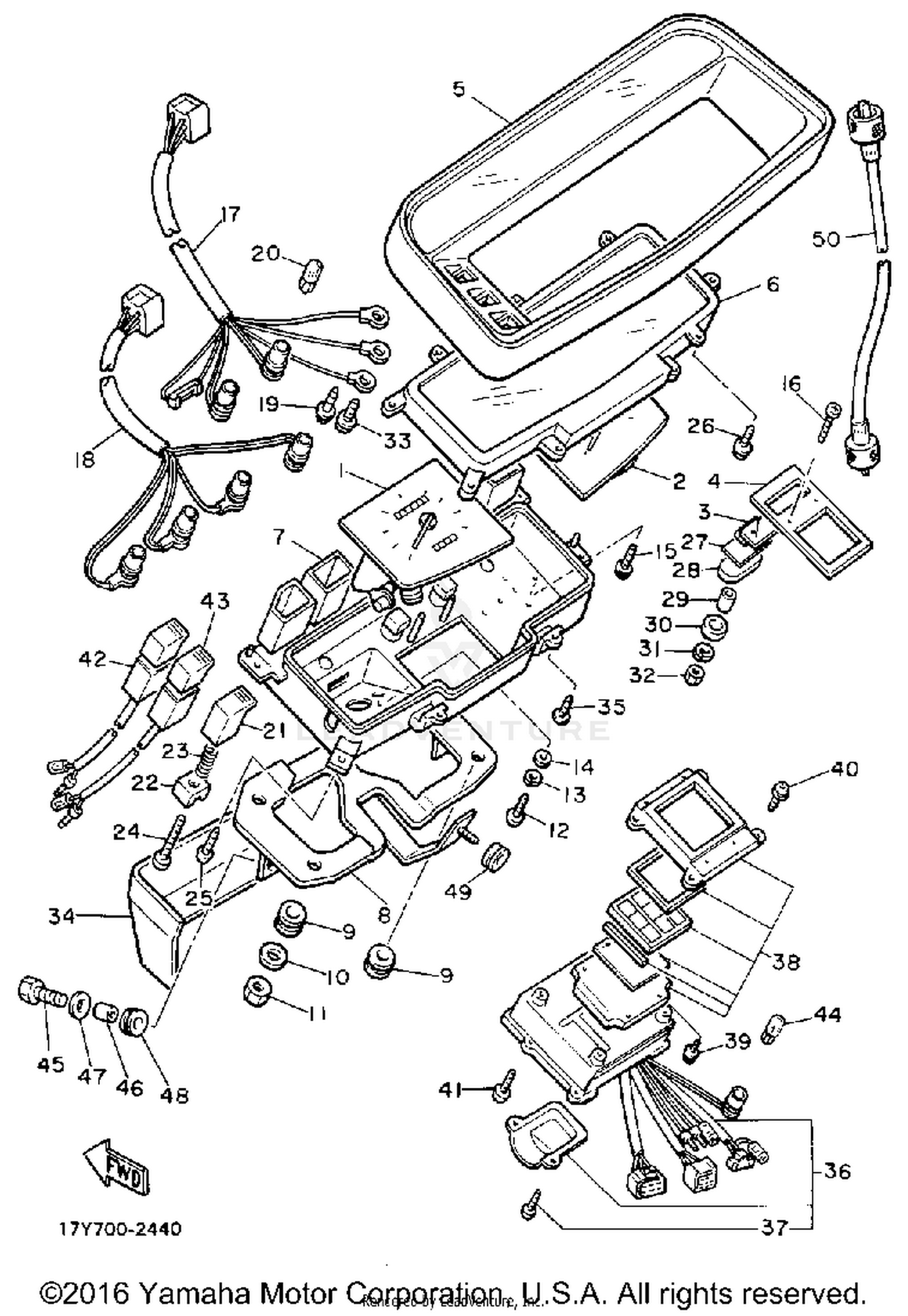

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
16G-83570-A0-00
|
$200.99 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASSEMBLY
16G-83540-00-00
|
$150.99 | ||
|
Unavailable |
|||
|
#3
BOOST PRSSRMTR ASSEMBLY
16G-83680-00-00
|
$56.62 | ||
|
Unavailable |
|||
|
#4
PANEL METER 2
16G-83613-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#5
COVER, METER
16G-83559-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#6
CASE UPPER
16G-8353G-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#7
CASE, INNER
16G-8353H-00-00
|
$38.92 | ||
|
Unavailable |
|||
|
#8
BRACKET, METER
16G-83519-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#9
DAMPER
5G2-83523-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, WITH WASHER
90159-04043-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
90164-02012-00
|
$0.89 | ||
|
Unavailable |
|||
|
#17
SOCKET CORD ASSEMBLY
16G-83520-10-00
|
$4.84 | ||
|
Unavailable |
|||
|
#18
SOCKET CORD ASSEMBLY
16G-83509-00-00
|
$18.66 | ||
|
Unavailable |
|||
|
#19
SCREW, WITH WASHER
90159-03044-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
KNOB, TRIP METER
16G-83578-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#22
LEVER, TRIP METER
16G-8353Y-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#23
SPRING, METER
16G-83515-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#24
SCREW, TAPPING
90164-03010-00
Superseded by 90167-03058-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING
90164-04011-00
|
$0.99 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING
90164-03010-00
Superseded by 90167-03058-00
|
$1.35 | ||
|
Unavailable |
|||
|
#27
PLATE, FITTING
16G-83544-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#28
DAMPER
16G-83523-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#29
COLLAR
16G-83522-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#30
DAMPER 2
4G0-83526-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#31
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#32
NUT
95301-04700-00
Superseded by 95380-04700-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, WITH WASHER
90159-03044-00
|
$5.99 | ||
|
Unavailable |
|||
|
#34
COVER, METER 2
16G-83579-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#35
TAPPING SCREW
90164-04006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PRINT BOARD ASSEMBLY
10M-W8352-00-00
|
$280.99 | ||
|
Unavailable |
|||
|
#37
SCREW, TAPPING (97702-40508)
97701-40508-00
|
$0.70 | ||
|
Unavailable |
|||
|
#38
LCD UNIT SET
16G-W8351-01-00
|
$229.99 | ||
|
Unavailable |
|||
|
#39
SCREW, WITH WASHER
90159-04055-00
|
$0.65 | ||
|
Unavailable |
|||
|
#40
SCREW, WITH WASHER
90159-03054-00
|
$2.17 | ||
|
Unavailable |
|||
|
#41
TAPPING SCREW
90164-04006-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
SWITCH, METER CNTRL
16G-8358J-10-00
|
$29.99 | ||
|
Unavailable |
|||
|
#43
SWITCH, METER CNTRL
16G-8358J-10-00
|
$29.99 | ||
|
Unavailable |
|||
|
#44
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#45
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPACER
90560-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
GROMMET
90480-01288-00
|
$0.94 | ||
|
Unavailable |
|||
|
#50
SDMTR CABLE
4V5-83550-01-00
Superseded by 4V5-83550-02-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
